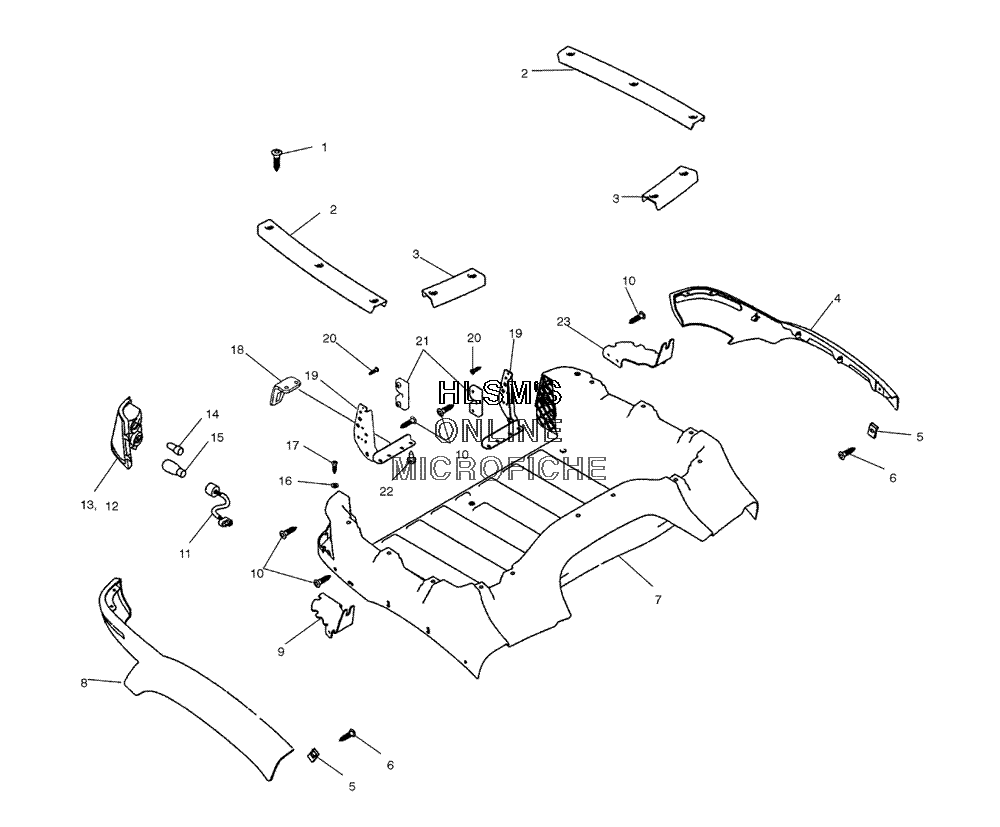

BOX - REAR для Polaris ATP 500 4X4 (A04JD50CA) (CAMO GREEN MET.) (CANADA) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    7518216 SCREW
    SCREW
  • 2
    5434803-070 TIEDOWN SIDE (BLACK)
    TIEDOWN SIDE (BLACK)
  • 3
    5434804-070 TIEDOWN (FRONT/BLACK)
    TIEDOWN (FRONT/BLACK)
  • 4
    5434801-070 FENDER (LEFT/BLACK)
    FENDER (LEFT/BLACK)
  • 5
    7670057 NUT SPEED
    NUT SPEED
  • 6
    7512232 BOLT
    BOLT
  • 7
    5435072-070 RR BASE SVCW DECAL (BLACK)
    RR BASE SVCW DECAL (BLACK)
  • 8
    5434802-070 FENDER (RIGHT/BLACK)
    FENDER (RIGHT/BLACK)
  • 9
    5246932-067 CORNER BRACKET (REAR/RIGHT/BLACK)
    CORNER BRACKET (REAR/RIGHT/BLACK)
  • 10
    7515111 SCREW
    SCREW
  • 11
    2461151 HARNESS TAILLIGHT
    HARNESS TAILLIGHT
  • 12
    2410372 TAILLIGHT ASSY (LEFT)
    TAILLIGHT ASSY (LEFT)
  • 12
    2410373 TAILLIGHT ASSY (RIGHT)
    TAILLIGHT ASSY (RIGHT)
  • 13
    2410354 TAILLIGHT ASSY (LEFT) (INCL. 12-14)
    TAILLIGHT ASSY (LEFT) (INCL. 12-14)
  • 13
    2410355 TAILLIGHT ASSY (RIGHT) (INCL. 12-14)
    TAILLIGHT ASSY (RIGHT) (INCL. 12-14)
  • 14
    4030015 BULB TAILLIGHT TACH SPEEDOMETER
    BULB TAILLIGHT TACH SPEEDOMETER
  • 15
    4030050 BULB TAILLIGHT
    BULB TAILLIGHT
  • 16
    7556288 WASHER
    WASHER
  • 17
    7512026 SCREW
    SCREW
  • 18
    5247681 (IF BUILT FROM 7/14/03 TO 10/27/03)
    (IF BUILT FROM 7/14/03 TO 10/27/03)
  • 18
    5247965-067 TIEDOWN (BLACK) (IF BUILT AFTER 10/27/03)
    TIEDOWN (BLACK) (IF BUILT AFTER 10/27/03)
  • 19
    1014249-067 WELD TAILGATE SUPPORT (LEFT/BLACK)
    WELD TAILGATE SUPPORT (LEFT/BLACK)
  • 19
    1014250-067 WELD TAILGATE SUPPORT (RIGHT/BLACK)
    WELD TAILGATE SUPPORT (RIGHT/BLACK)
  • 20
    7518238 SCREW
    SCREW
  • 21
    7081099 LATCH SLAM TAILGATE
    LATCH SLAM TAILGATE
  • 22
    7515182 SCREW (IF BUILT BEFORE 7/14/03)
    SCREW (IF BUILT BEFORE 7/14/03)
  • 22
    7512098 SCREW (IF BUILT AFTER 7/14/03)
    SCREW (IF BUILT AFTER 7/14/03)
  • 23
    5246931-067 BRACKET, CORNER (REAR/LEFT/BLACK)
    BRACKET, CORNER (REAR/LEFT/BLACK)
