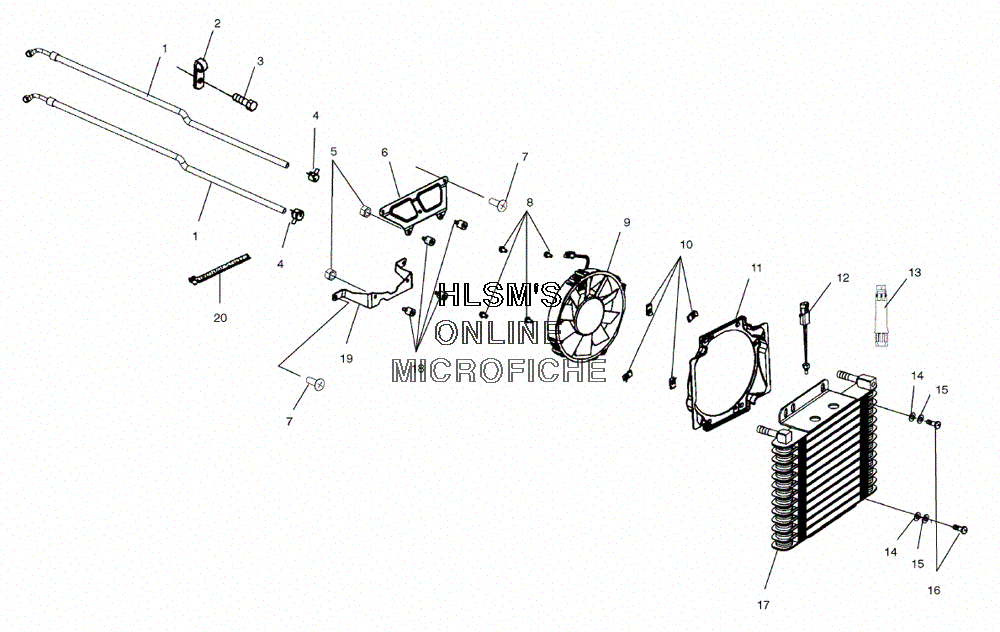

OIL COOLING SYSTEM для Polaris TRAIL BOSS 330 (A03CA32AA) - 2003 года выпуска
-
№АртикулНазвание
-
15412039 HOSE, COOLER (9/16'' 90D SWIVEL) (AA)HOSE, COOLER (9/16'' 90D SWIVEL) (AA)
-
15412355 HOSE, COOLER THREADED 90D (AB)HOSE, COOLER THREADED 90D (AB)
-
27080851 CLAMP, HOSE VINYL COATEDCLAMP, HOSE VINYL COATED
-
37512084 SCREWSCREW
-
47080862 CLAMP, HOSECLAMP, HOSE
-
57542122 NUT, NYLOKNUT, NYLOK
-
65245416-067 BRACKET, OIL COOLER (TOP/ BLACK)BRACKET, OIL COOLER (TOP/ BLACK)
-
77515133 SCREWSCREW
-
87517659 SCREWSCREW
-
92410157 FAN, MOTORFAN, MOTOR
-
107670111 CLIPCLIP
-
115433353 SHROUD, FANSHROUD, FAN
-
124010274 THERMOSTATTHERMOSTAT
-
132410380 JUMPER, THERMOSTAT OFFSETJUMPER, THERMOSTAT OFFSET
-
147558301 WASHER, FLATWASHER, FLAT
-
157552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
167512240 BOLTBOLT
-
171240074 COOLER, OIL (AA)COOLER, OIL (AA)
-
171240118 COOLER, OIL (AB)COOLER, OIL (AB)
-
185411548 MOUNT, RUBBERMOUNT, RUBBER
-
191013519 BRACKET, OIL COOLER ASSY. (LOWER)BRACKET, OIL COOLER ASSY. (LOWER)
-
207080999 CABLE TIE (BLACK)CABLE TIE (BLACK)
