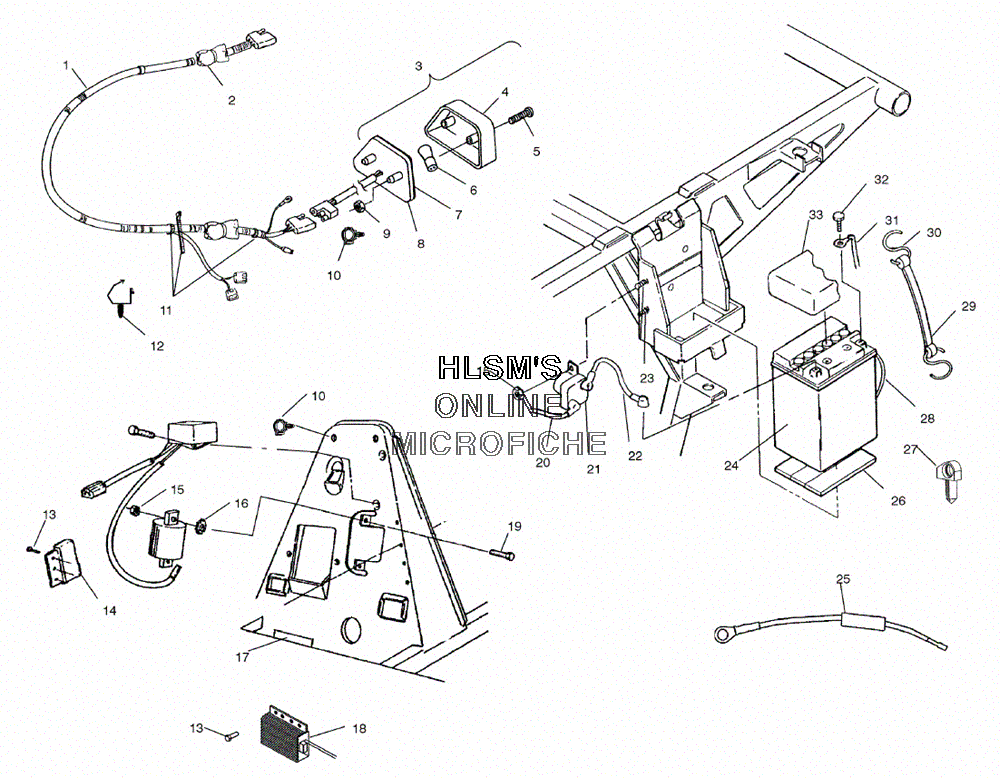

ELECTRICAL W/ TAILLIGHT ASSY. для Polaris TRAIL BOSS 330 (A03CA32AA) - 2003 года выпуска
-
№АртикулНазвание
-
12461057 HARNESS, MAIN,TRAIL BOSS 330HARNESS, MAIN,TRAIL BOSS 330
-
22201795 CIRCUT BREAKER, FAN KITCIRCUT BREAKER, FAN KIT
-
32410320 ASSY., TAILLIGHT (12V)ASSY., TAILLIGHT (12V)
-
44032046 LENS, TAILLIGHTLENS, TAILLIGHT
-
54032029 SCREW, TAILLIGHTSCREW, TAILLIGHT
-
64030043 BULB, TAILLIGHTBULB, TAILLIGHT
-
74032045 GASKET, TAILLIGHTGASKET, TAILLIGHT
-
97670054 NUT, PUSH-ONNUT, PUSH-ON
-
104020149 CLIP, ROSEBUDCLIP, ROSEBUD
-
117080138 CABLE TIECABLE TIE
-
127670109 CLIP, ROUTINGCLIP, ROUTING
-
137512024 SCREWSCREW
-
144010137 LIMITER, RPM, 350 HZ, LR44-3LIMITER, RPM, 350 HZ, LR44-3
-
157541925 NUT, NYLOK (10-24)NUT, NYLOK (10-24)
-
167571602 WASHERWASHER
-
178360012-04 EDGE TRIM (BLACK)EDGE TRIM (BLACK)
-
184010697 MODULE, ELECTRONIC CONTROLMODULE, ELECTRONIC CONTROL
-
197512007 BOLTBOLT
-
204010093 CABLE, SOLENOID/ STARTERCABLE, SOLENOID/ STARTER
-
224010094 CABLE, BATT/ SOLENOID (RED)CABLE, BATT/ SOLENOID (RED)
-
237512027 SCREWSCREW
-
244010774 BATTERY, 14 AH, SEALED, CHARGEDBATTERY, 14 AH, SEALED, CHARGED
-
252202147 FUSIBLE LINK, KITFUSIBLE LINK, KIT
-
265810290 PAD, BATTERYPAD, BATTERY
-
277670102 CLIPCLIP
-
285432077 TUBE, BATTERY VENT (OPT)TUBE, BATTERY VENT (OPT)
-
295410424 STRAP, BATTERY HOLDDOWNSTRAP, BATTERY HOLDDOWN
-
307010032 HOOK, BATTERYHOOK, BATTERY
-
314010095 CABLE, BATTERY/ ENGINE (BLACK)CABLE, BATTERY/ ENGINE (BLACK)
-
322202213 BATTERY BOLT, KIT (LONG)BATTERY BOLT, KIT (LONG)
-
335431769 COVER, BATTERYCOVER, BATTERY
