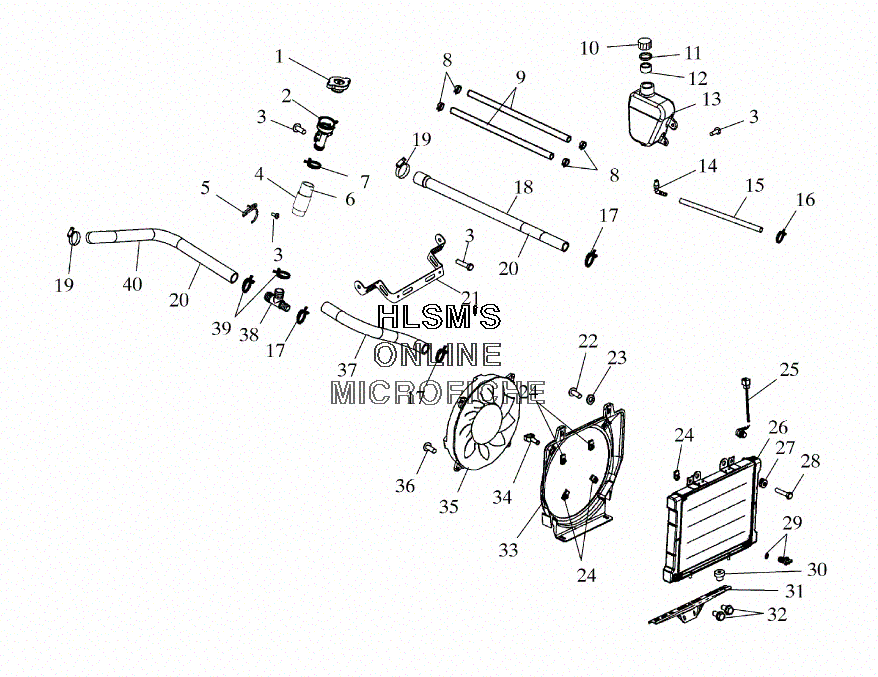

COOLING SYSTEM для Polaris SPORTSMAN 700 4X4 (A03CH68AF) (BLACK METALLIC) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    1240044 CAP, PRESSURE (13 PSI)
    CAP, PRESSURE (13 PSI)
  • 2
    5434325 FILLER, REMOTE COOLANT
    FILLER, REMOTE COOLANT
  • 3
    7512084 SCREW
    SCREW
  • 4
    5521644 GUARD, HOSE (6.75'')
    GUARD, HOSE (6.75'')
  • 5
    7042089 RETAINER, HOSE WIRE FORM
    RETAINER, HOSE WIRE FORM
  • 6
    5412311 HOSE, FILLER NECK
    HOSE, FILLER NECK
  • 7
    7080827 CLAMP, ROTO SPRING (1'')
    CLAMP, ROTO SPRING (1'')
  • 8
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 9
    8450040-150 LINE, FUEL (OPT.)
    LINE, FUEL (OPT.)
  • 10
    5430743 CAP, OVERFLOW
    CAP, OVERFLOW
  • 11
    5810279 GASKET
    GASKET
  • 12
    5433774 CAP, PLUG (GREEN) FLEX TEMP
    CAP, PLUG (GREEN) FLEX TEMP
  • 13
    5431673 TANK, SURGE
    TANK, SURGE
  • 14
    7052065 FITTING (90 DEGREE)
    FITTING (90 DEGREE)
  • 15
    8450003-1525 FUEL LINE (1/4 ID) (1525 CM.)
    FUEL LINE (1/4 ID) (1525 CM.)
  • 16
    7080307 CLAMP, HOSE
    CLAMP, HOSE
  • 17
    7080826 CLAMP, ROTO CLIP
    CLAMP, ROTO CLIP
  • 18
    5412030 HOSE, ENGINE (UPPER)
    HOSE, ENGINE (UPPER)
  • 19
    7080614 CLAMP, HOSE
    CLAMP, HOSE
  • 20
    5521597 GUARD, HOSE (9'')
    GUARD, HOSE (9'')
  • 21
    5246656 BRACKET, RADIATOR MOUNT (UPPER)
    BRACKET, RADIATOR MOUNT (UPPER)
  • 22
    7518014 SCREW, HEX HEAD
    SCREW, HEX HEAD
  • 23
    7556196 WASHER, FLANGE
    WASHER, FLANGE
  • 24
    7547197 CLIP-U
    CLIP-U
  • 25
    4010161 SENSOR, THERMAL/HARNESS
    SENSOR, THERMAL/HARNESS
  • 26
    1240103 RADIATOR
    RADIATOR
  • 27
    5411975 GROMMET, INSERT ASSY.
    GROMMET, INSERT ASSY.
  • 28
    7515179 SCREW
    SCREW
  • 29
    7052296 VALVE, PLASTIC RAD COOLER DRAIN
    VALVE, PLASTIC RAD COOLER DRAIN
  • 30
    5410584 BUSHING, MOUNT (LOWER/RED)
    BUSHING, MOUNT (LOWER/RED)
  • 31
    5245773-067 BRACKET, RADIATOR (LOWER/BLACK)
    BRACKET, RADIATOR (LOWER/BLACK)
  • 32
    7517386 SCREW
    SCREW
  • 33
    5434171 SHROUD, FAN ATV
    SHROUD, FAN ATV
  • 34
    4010631 CLIP, WIRING
    CLIP, WIRING
  • 35
    2410288 FAN, ASSEMBLY ATV (11'')
    FAN, ASSEMBLY ATV (11'')
  • 36
    7517975 BOLT, HEX HEAD
    BOLT, HEX HEAD
  • 37
    5412313 HOSE, ENGINE (LOWER)
    HOSE, ENGINE (LOWER)
  • 38
    7052282 CONN., TEE BARBED (3/4'')
    CONN., TEE BARBED (3/4'')
  • 39
    7081047 CLAMP, ROT SPRING (31.5 MM)
    CLAMP, ROT SPRING (31.5 MM)
  • 40
    5412312 HOSE, RADIATOR (LOWER)
    HOSE, RADIATOR (LOWER)
