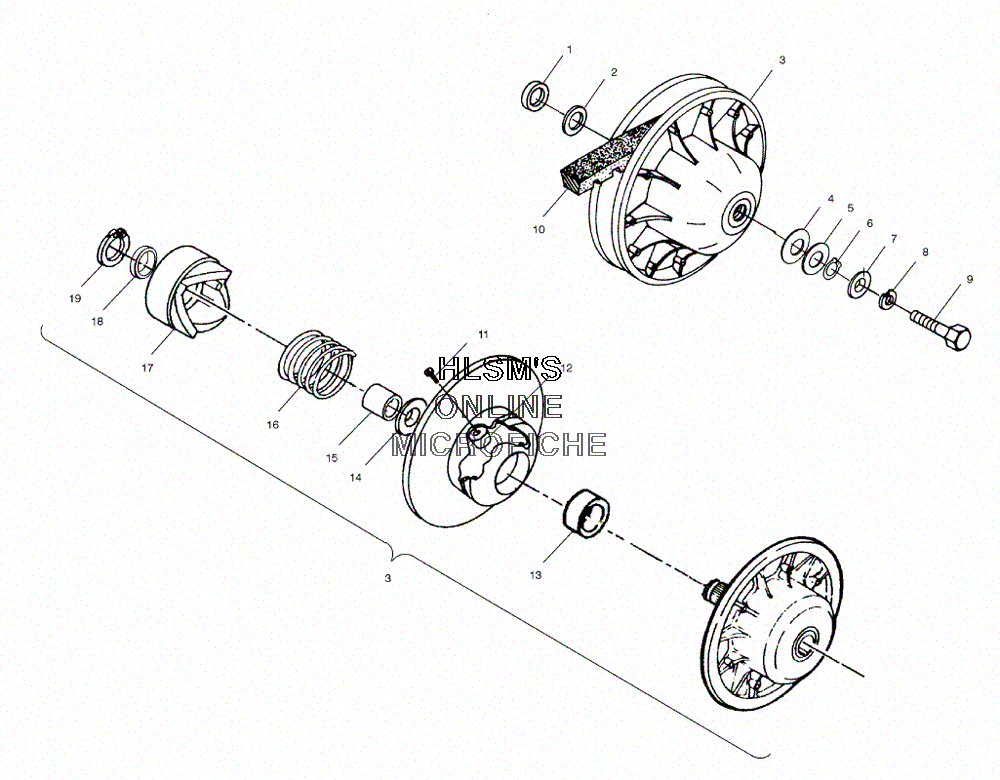

CLUTCH - DRIVEN для Polaris SPORTSMAN 700 4X4 (A03CH68AF) (BLACK METALLIC) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    5010409 SPACER, DRIVEN ATV
    SPACER, DRIVEN ATV
  • 2
    7556120 BUSHING
    BUSHING
  • 3
    1321973 CLUTCH, ASSY.DRIVEN, EBS 31 DEG. W/Y (INCL. 5-7, 13-19)
    CLUTCH, ASSY.DRIVEN, EBS 31 DEG. W/Y (INCL. 5-7, 13-19)
  • 4
    7556203 WASHER
    WASHER
  • 5
    7556010 BUSHING
    BUSHING
  • 6
    7710461 RING, RETAIN HEAD
    RING, RETAIN HEAD
  • 7
    5220646 WASHER, DOMED
    WASHER, DOMED
  • 8
    7552901 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 9
    7515382 BOLT
    BOLT
  • 10
    3211091 BELT, DRIVE
    BELT, DRIVE
  • 11
    7517323 SCREW, SPECIAL
    SCREW, SPECIAL
  • 12
    1321977 ROLLER, TAPER SP-21 MACH
    ROLLER, TAPER SP-21 MACH
  • 13
    3585710 BEARING
    BEARING
  • 14
    5211115 WASHER, SPRING RETAINER
    WASHER, SPRING RETAINER
  • 15
    3576511 BUSHING
    BUSHING
  • 16
    7041636 SPRING, DRIVEN 4-STK (WHITE/GREEN)
    SPRING, DRIVEN 4-STK (WHITE/GREEN)
  • 17
    5132751 RAMP, STA EBS 31 DEG. MACH
    RAMP, STA EBS 31 DEG. MACH
  • 18
    5210753 SPACER (.032)
    SPACER (.032)
  • 19
    7710448 RING, RETAINER
    RING, RETAINER
