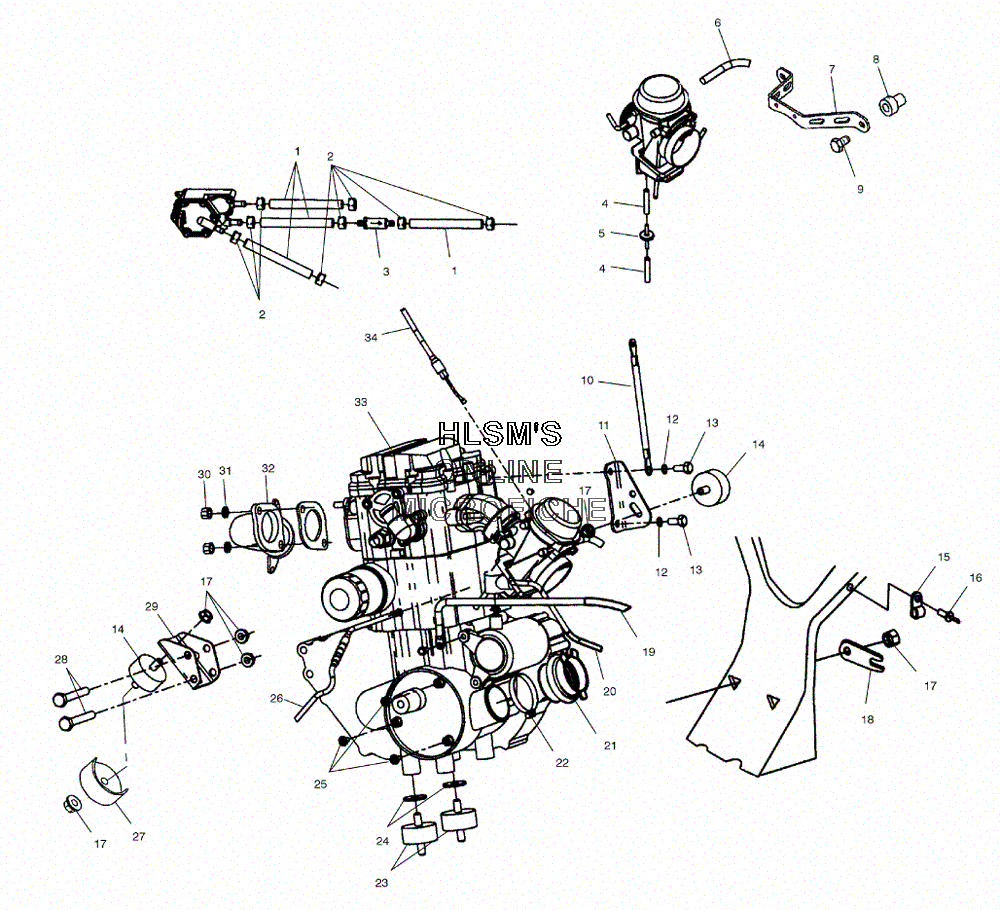

MOUNTING - ENGINE для Polaris SPORTSMAN 500 HO 4X4 (A03CH50AC) (NBU NO SHADOW) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    8450040-600 FUEL LINE (1/4 ID) (600 CM.) (OPT.)
    FUEL LINE (1/4 ID) (600 CM.) (OPT.)
  • 2
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 3
    2530009 FILTER, SMALL IN-LINE
    FILTER, SMALL IN-LINE
  • 4
    8360009-600 FUEL LINE (1/8 ID) (600 CM.) (OPT.)
    FUEL LINE (1/8 ID) (600 CM.) (OPT.)
  • 5
    7051011 VENT, CHECKVALVE
    VENT, CHECKVALVE
  • 6
    8450003-1525 FUEL LINE (1/4 ID) (1525 CM.) (OPT.)
    FUEL LINE (1/4 ID) (1525 CM.) (OPT.)
  • 7
    5246551 STRAP, CARBURETOR MOUNT
    STRAP, CARBURETOR MOUNT
  • 8
    7541923 NUT, WELL
    NUT, WELL
  • 9
    7512247 BOLT
    BOLT
  • 10
    4010132 CABLE, GROUND-ENGINE
    CABLE, GROUND-ENGINE
  • 11
    5241453 MOUNT, ENGINE (TOP/ BLACK)
    MOUNT, ENGINE (TOP/ BLACK)
  • 12
    7552901 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 13
    7512315 BOLT
    BOLT
  • 14
    3110044 MOUNT, RUBBER (TOP)
    MOUNT, RUBBER (TOP)
  • 15
    7080539 CLAMP, NYLON CABLE
    CLAMP, NYLON CABLE
  • 16
    7621462 RIVET
    RIVET
  • 17
    7547108 NUT
    NUT
  • 18
    5224658-067 STRAP, FRAME SUPPORT (BLACK)
    STRAP, FRAME SUPPORT (BLACK)
  • 19
    4010095 CABLE, BATTERY/ ENGINE (BLACK)
    CABLE, BATTERY/ ENGINE (BLACK)
  • 20
    4010093 CABLE, SOL/ STARTER
    CABLE, SOL/ STARTER
  • 21
    5410421 BOOT, CLUTCH INTAKE
    BOOT, CLUTCH INTAKE
  • 22
    7080511 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 23
    3110046 MOUNT, RUBBER (FRONT)
    MOUNT, RUBBER (FRONT)
  • 24
    7555815 WASHER, FLAT
    WASHER, FLAT
  • 25
    3084205 SCREW AND WASHER
    SCREW AND WASHER
  • 26
    7081008 CABLE, CHOKE, FRICTION (40'')
    CABLE, CHOKE, FRICTION (40'')
  • 27
    5245043 BRACKET, TORQUE STOP PLTD
    BRACKET, TORQUE STOP PLTD
  • 28
    7515417 SCREW
    SCREW
  • 29
    5241150 MOUNT, ENGINE (FRONT)
    MOUNT, ENGINE (FRONT)
  • 30
    3080285 NUT
    NUT
  • 31
    3080530 WASHER, SPRING
    WASHER, SPRING
  • 32
    1261043-029 MANIFOLD 1.625 (BLACK)
    MANIFOLD 1.625 (BLACK)
  • 33
    3085822 THE SHORT BLOCK ASSY.
    THE SHORT BLOCK ASSY.
  • 34
    7080967 CABLE, THROTTLE 1/4 TURN 4 STK
    CABLE, THROTTLE 1/4 TURN 4 STK
