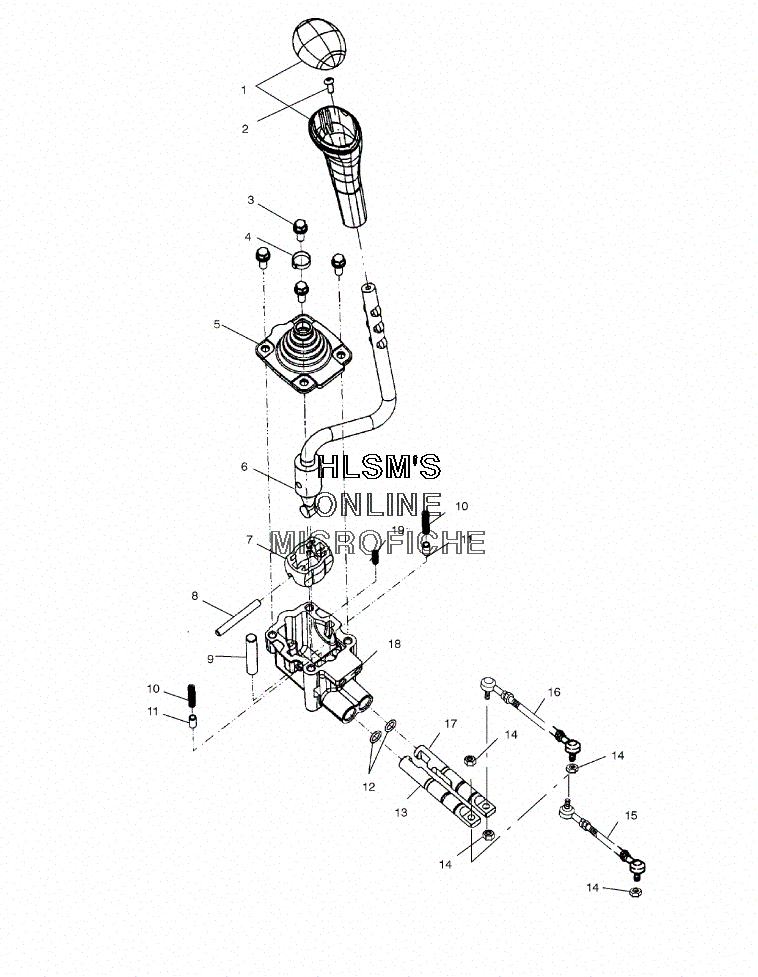

GEAR SELECTOR для Polaris SPORTSMAN 500 HO 4X4 (A03CH50AC) (NBU NO SHADOW) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    3233195 GEAR SELECT, KNOB HLR ASSY. (BLACK)
    GEAR SELECT, KNOB HLR ASSY. (BLACK)
  • 2
    7512024 SCREW
    SCREW
  • 3
    3233649 SCREW
    SCREW
  • 4
    3233131 STRAP, WIRE
    STRAP, WIRE
  • 5
    3233648 COVER, GEAR SELECTOR BOOT
    COVER, GEAR SELECTOR BOOT
  • 6
    3233658 SUB, HANDLE GEAR SELECTOR ASSY.
    SUB, HANDLE GEAR SELECTOR ASSY.
  • 7
    3233646 PLASTIC, SPHERE
    PLASTIC, SPHERE
  • 8
    3233754 PIN, DOWEL
    PIN, DOWEL
  • 9
    3233644 PIN, DOWEL
    PIN, DOWEL
  • 10
    3233642 SPRING, DETENT
    SPRING, DETENT
  • 11
    3233060 BULLET, DETENT
    BULLET, DETENT
  • 12
    3233076 O-RING
    O-RING
  • 13
    3233639 SLIDE, LOW
    SLIDE, LOW
  • 14
    7546707 NUT, NYLOK
    NUT, NYLOK
  • 15
    1821344 LINKAGE, SHORT ASSY.
    LINKAGE, SHORT ASSY.
  • 16
    1821345 LINKAGE, SP 500 LONG ASSY.
    LINKAGE, SP 500 LONG ASSY.
  • 17
    3233640 SLIDE, HIGH/ REV
    SLIDE, HIGH/ REV
  • 18
    3233641 GEAR, SELECTOR BODY
    GEAR, SELECTOR BODY
  • 19
    3233643 SPRING, CENTERING
    SPRING, CENTERING
  • 19
    1341271 SELECTOR, GEAR ASSY. (INCL. 1-13, 17-19)
    SELECTOR, GEAR ASSY. (INCL. 1-13, 17-19)
