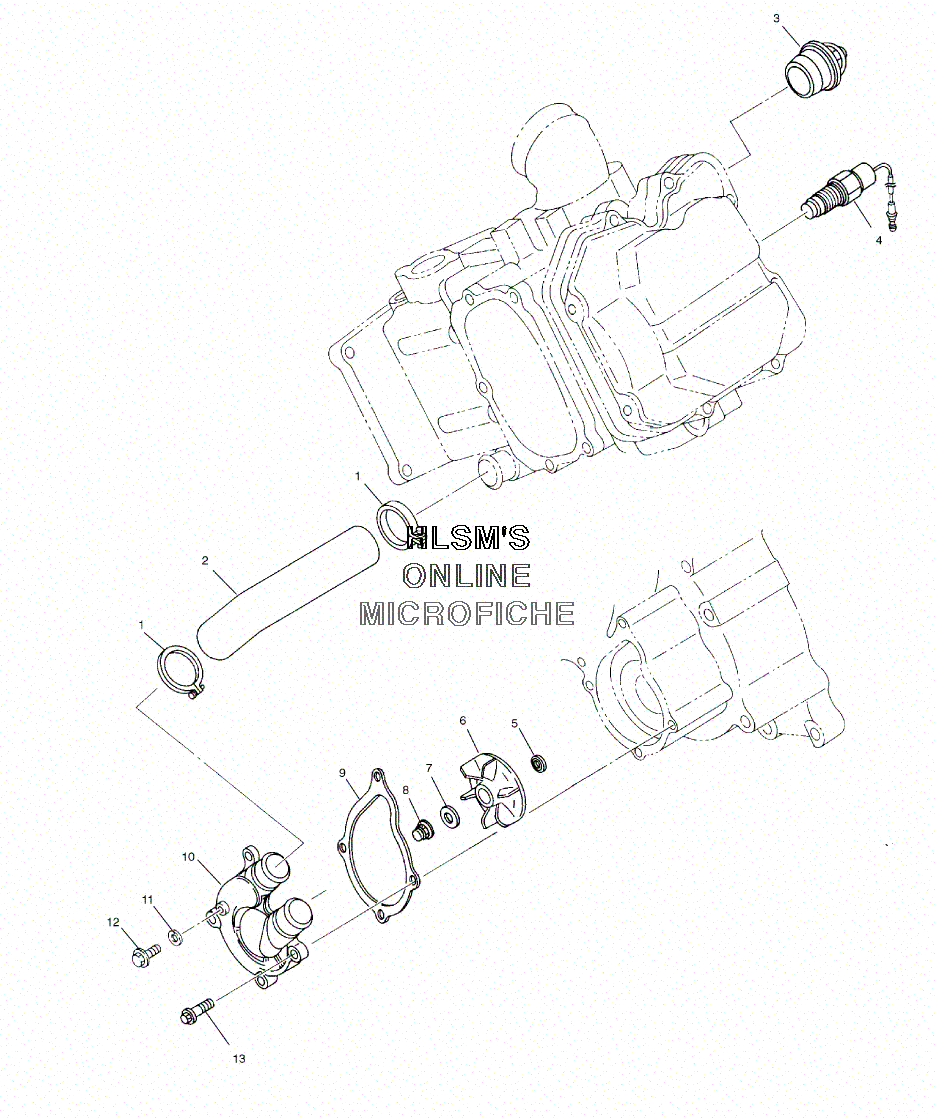

WATER PUMP для Polaris SPORTSMAN 400 4X4 (A03CH42AB) (BLAZING RED) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    3084191 CLAMP, HOSE
    CLAMP, HOSE
  • 2
    3085857 HOSE, MAIN
    HOSE, MAIN
  • 3
    3084940 THERMOSTAT
    THERMOSTAT
  • 4
    3085352 SWITCH, THERMO. (110 DEGREE)
    SWITCH, THERMO. (110 DEGREE)
  • 5
    3084942 WASHER, SEAL
    WASHER, SEAL
  • 6
    3084935 IMPELLER
    IMPELLER
  • 7
    3083138 WASHER, FLAT
    WASHER, FLAT
  • 8
    3085077 NUT, SELF-LOCK
    NUT, SELF-LOCK
  • 9
    3086840 GASKET, WATER PUMP
    GASKET, WATER PUMP
  • 10
    3085351 COVER, WATER PUMP
    COVER, WATER PUMP
  • 11
    3082758 WASHER, FLAT (ALUMINUM)
    WASHER, FLAT (ALUMINUM)
  • 12
    3085359 BOLT, FLANGE
    BOLT, FLANGE
