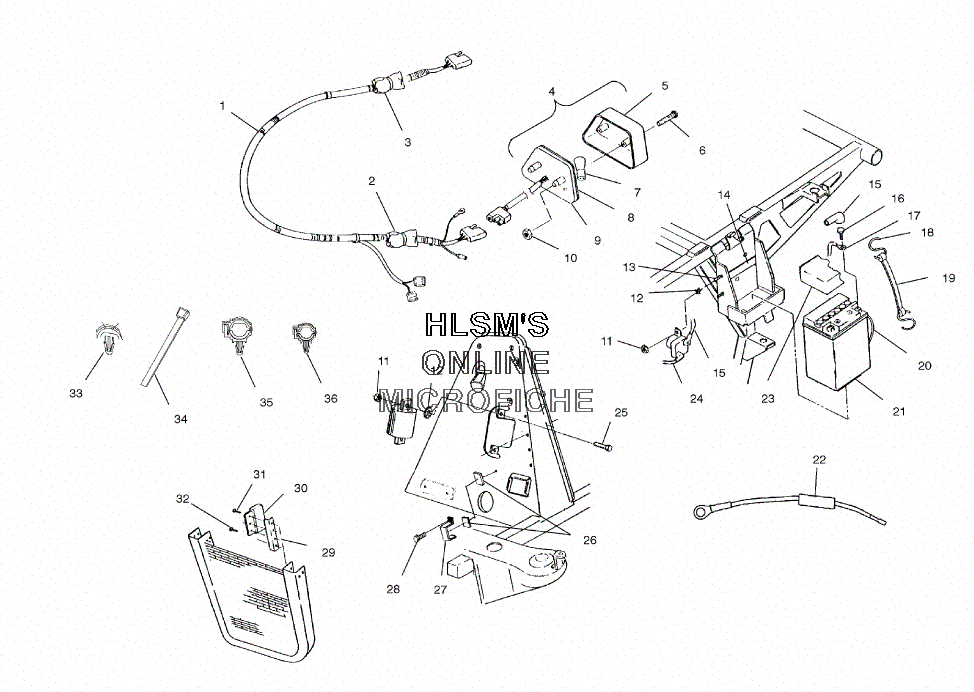

ELECTRICAL W/ TAILLIGHT ASSY. для Polaris SPORTSMAN 400 4X4 (A03CH42AB) (BLAZING RED) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    2461046 HARNESS, MAIN SPORTSMAN 500 HO
    HARNESS, MAIN SPORTSMAN 500 HO
  • 2
    2200593 CIRCUIT BREAKER 20 AMP KIT
    CIRCUIT BREAKER 20 AMP KIT
  • 3
    2201795 CIRCUIT BREAKER, FAN
    CIRCUIT BREAKER, FAN
  • 4
    2410320 TAILLIGHT, 12V SERIES FIL ASSY. (INCL. 5-10)
    TAILLIGHT, 12V SERIES FIL ASSY. (INCL. 5-10)
  • 5
    4032046 LENS, TAILLIGHT
    LENS, TAILLIGHT
  • 6
    4032029 SCREW, TAILLIGHT
    SCREW, TAILLIGHT
  • 7
    4030043 BULB, TAILLIGHT
    BULB, TAILLIGHT
  • 8
    4032045 GASKET, TAILLIGHT
    GASKET, TAILLIGHT
  • 9
    4032064 BACKING, TAILLIGHT
    BACKING, TAILLIGHT
  • 10
    7670054 NUT, PUSH-ON
    NUT, PUSH-ON
  • 11
    7541925 NUT, NYLOK
    NUT, NYLOK
  • 12
    7571602 WASHER
    WASHER
  • 13
    7512027 SCREW
    SCREW
  • 14
    5810290 PAD, BATTERY
    PAD, BATTERY
  • 15
    4010094 CABLE, BATTERY/ SOLENOID (RED)
    CABLE, BATTERY/ SOLENOID (RED)
  • 16
    2200361 BATTERY BOLT KIT (SHORT)
    BATTERY BOLT KIT (SHORT)
  • 17
    4010095 CABLE, BATTERY/ ENGINE (BLACK)
    CABLE, BATTERY/ ENGINE (BLACK)
  • 18
    7010032 HOOK, BATTERY
    HOOK, BATTERY
  • 19
    5410424 STRAP, BATTERY HOLDDOWN
    STRAP, BATTERY HOLDDOWN
  • 20
    5432077 TUBE, BATTERY VENT (OPT.)
    TUBE, BATTERY VENT (OPT.)
  • 21
    4140006 BATTERY
    BATTERY
  • 22
    2202147 FUSIBLE LINK KIT
    FUSIBLE LINK KIT
  • 23
    5431769 COVER, BATTERY
    COVER, BATTERY
  • 24
    4010093 CABLE, SOL/ STARTER
    CABLE, SOL/ STARTER
  • 25
    7512007 BOLT
    BOLT
  • 26
    5810455 PAD, RACK MOUNT
    PAD, RACK MOUNT
  • 27
    5241416 BRACKET, CDI (IF BUILT BEFORE 7/01/02)
    BRACKET, CDI (IF BUILT BEFORE 7/01/02)
  • 27
    5246378 BRACKET, CDI DIGITAL (IF BUILT AFTER 7/01/02)
    BRACKET, CDI DIGITAL (IF BUILT AFTER 7/01/02)
  • 28
    7512024 SCREW
    SCREW
  • 29
    5131818 HEATSINK, RECT.
    HEATSINK, RECT.
  • 30
    4010670 RECTIFIER, REGULATOR LR-390 OC (IF BUILT BEFORE 7/01/02)
    RECTIFIER, REGULATOR LR-390 OC (IF BUILT BEFORE 7/01/02)
  • 30
    4010847 RECT, REGULATOR, LR-35 ANDERSON (IF BUILT AFTER 7/01/02)
    RECT, REGULATOR, LR-35 ANDERSON (IF BUILT AFTER 7/01/02)
  • 31
    7512018 SCREW
    SCREW
  • 32
    7512017 SCREW
    SCREW
  • 33
    7080965 MOUNT, CABLE TIE .25
    MOUNT, CABLE TIE .25
  • 34
    7080138 CABLE TIE
    CABLE TIE
  • 35
    4020149 CLIP, ROSEBUD
    CLIP, ROSEBUD
  • 36
    4020139 CLIP, PLASTIC
    CLIP, PLASTIC
