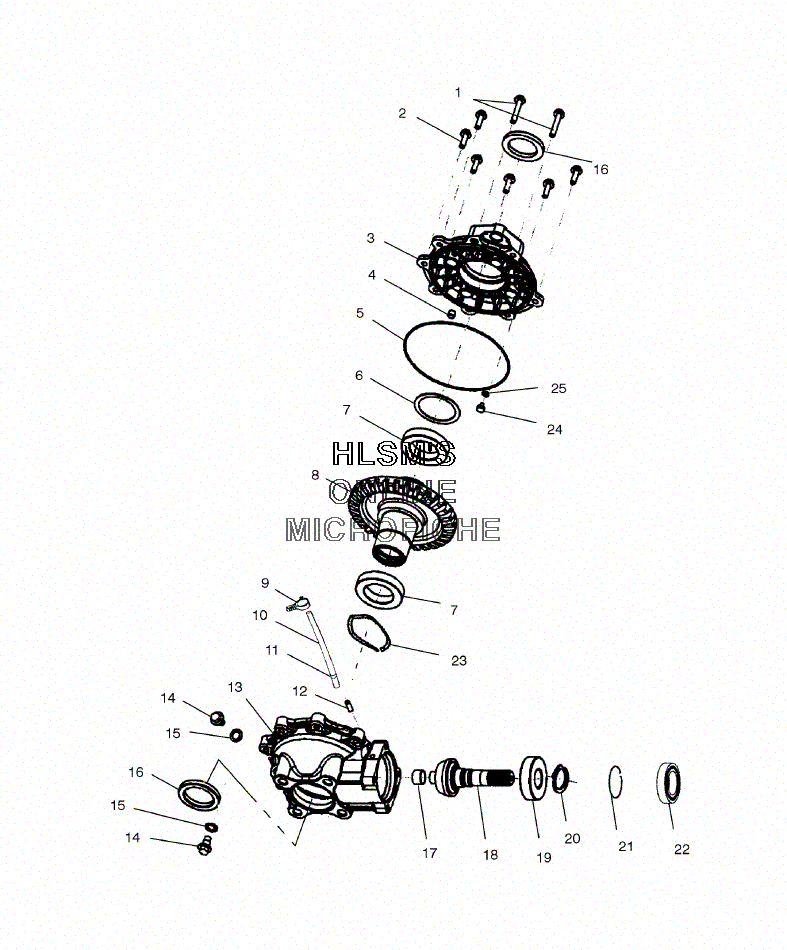

HOUSING - REAR W/ AXLE для Polaris MAGNUM 330 4X4 (A03CD32AA) (SILVER VAPOR METALLIC) - 2003 года выпуска`
-
№АртикулНазвание
-
13233585 SCREWSCREW
-
23233252 SCREWSCREW
-
33233753 COVER, OUTPUT HOUSING (REAR)COVER, OUTPUT HOUSING (REAR)
-
43233529 PIPE, KNOCKPIPE, KNOCK
-
53233587 O-RING 166O-RING 166
-
63233581 SHIM (3.1 X 2.5)SHIM (3.1 X 2.5)
-
73233268 BEARING, BALLBEARING, BALL
-
83233965 GEAR, STRAIGHT BEVEL (31TEETH)GEAR, STRAIGHT BEVEL (31TEETH)
-
97670102 CLIPCLIP
-
108450003-1525 FUEL LINE (1/4 ID) (1525 CM.) (OPT.)FUEL LINE (1/4 ID) (1525 CM.) (OPT.)
-
117080307 CLAMP, HOSECLAMP, HOSE
-
123233524 TUBE, VENTTUBE, VENT
-
133233970 GEARCASE HOUSING (REAR)GEARCASE HOUSING (REAR)
-
143233711 PLUG, OIL FILLPLUG, OIL FILL
-
153233324 WASHERWASHER
-
163233878 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
173233577 BUSHINGBUSHING
-
183233969 SHAFT, PINION STRAIGHT BVL (10TEETH) (REAR)SHAFT, PINION STRAIGHT BVL (10TEETH) (REAR)
-
193233714 BEARING, BALLBEARING, BALL
-
203233699 RING, RETAININGRING, RETAINING
-
213233968 RING RETAININGRING RETAINING
-
223234003 SEAL, TRIPLE LIP (27 X 80 X 10)SEAL, TRIPLE LIP (27 X 80 X 10)
-
233233963 SPRING, WAVE (2.71 ID X .21)SPRING, WAVE (2.71 ID X .21)
-
243233582 THRUST BUTTONTHRUST BUTTON
-
253233583 SHIM (.450 X .265)SHIM (.450 X .265)
-
251341423 GEARCASE ASSY. (REAR) (INCL. 1, 8, 12, 25)GEARCASE ASSY. (REAR) (INCL. 1, 8, 12, 25)
