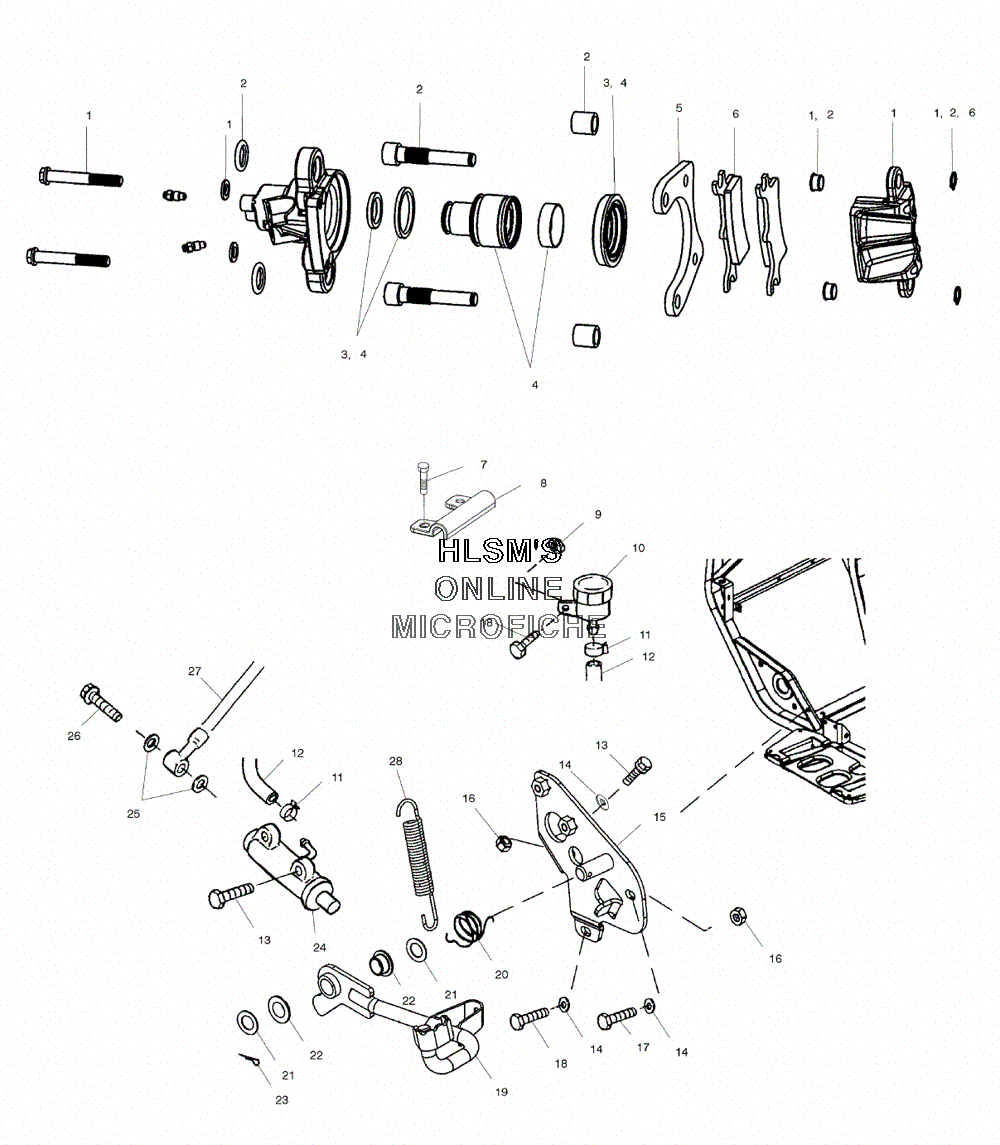

BRAKE - REAR для Polaris MAGNUM 330 4X4 (A03CD32AA) (SILVER VAPOR METALLIC) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    2201873 ANVIL BODY, KIT
    ANVIL BODY, KIT
  • 2
    2201870 SLIDE BOLT, KIT
    SLIDE BOLT, KIT
  • 3
    2201872 SEAL, KIT
    SEAL, KIT
  • 4
    2201869 PISTON/ SEAL, KIT
    PISTON/ SEAL, KIT
  • 5
    2201732 BRACKET KIT
    BRACKET KIT
  • 6
    2202414 BRAKE PAD KIT ASSY.
    BRAKE PAD KIT ASSY.
  • 7
    7512084 SCREW
    SCREW
  • 8
    5434041 CLAMP, BRAKE LINE
    CLAMP, BRAKE LINE
  • 9
    7542153 NUT, NYLOK FLANGED
    NUT, NYLOK FLANGED
  • 10
    1930854 RESERVOIR BRAKE ASSY. (REAR)
    RESERVOIR BRAKE ASSY. (REAR)
  • 11
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 12
    1910675 HOSE, RESERVOIR HB
    HOSE, RESERVOIR HB
  • 13
    7515158 SCREW
    SCREW
  • 14
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 15
    1012753-067 MT, PIVOT BRAKE (REAR/ BLACK)
    MT, PIVOT BRAKE (REAR/ BLACK)
  • 16
    7542122 NUT, NYLOK
    NUT, NYLOK
  • 17
    7512240 BOLT
    BOLT
  • 18
    7517386 SCREW
    SCREW
  • 19
    1014009-067 BRAKE ROD, HB PIVOT (BLACK)
    BRAKE ROD, HB PIVOT (BLACK)
  • 20
    7041750 SPRING, TORSION BRAKE
    SPRING, TORSION BRAKE
  • 21
    7555919 WASHER
    WASHER
  • 22
    5433189 BUSHING, PEDAL PIVOT
    BUSHING, PEDAL PIVOT
  • 23
    7661401 COTTER PIN
    COTTER PIN
  • 24
    1910311 BRAKE MASTER CYLINDER FOOT BANJO
    BRAKE MASTER CYLINDER FOOT BANJO
  • 25
    5410988 SEAL
    SEAL
  • 26
    1910499 BOLT, BANJO 10MM X 1.00
    BOLT, BANJO 10MM X 1.00
  • 27
    1910516 LINE, BRAKE (FRONT M/C TO REAR)
    LINE, BRAKE (FRONT M/C TO REAR)
  • 28
    7042075 SPRING
    SPRING
  • 28
    1910680 CALIPER W/ INS PADS ASSY.
    CALIPER W/ INS PADS ASSY.
