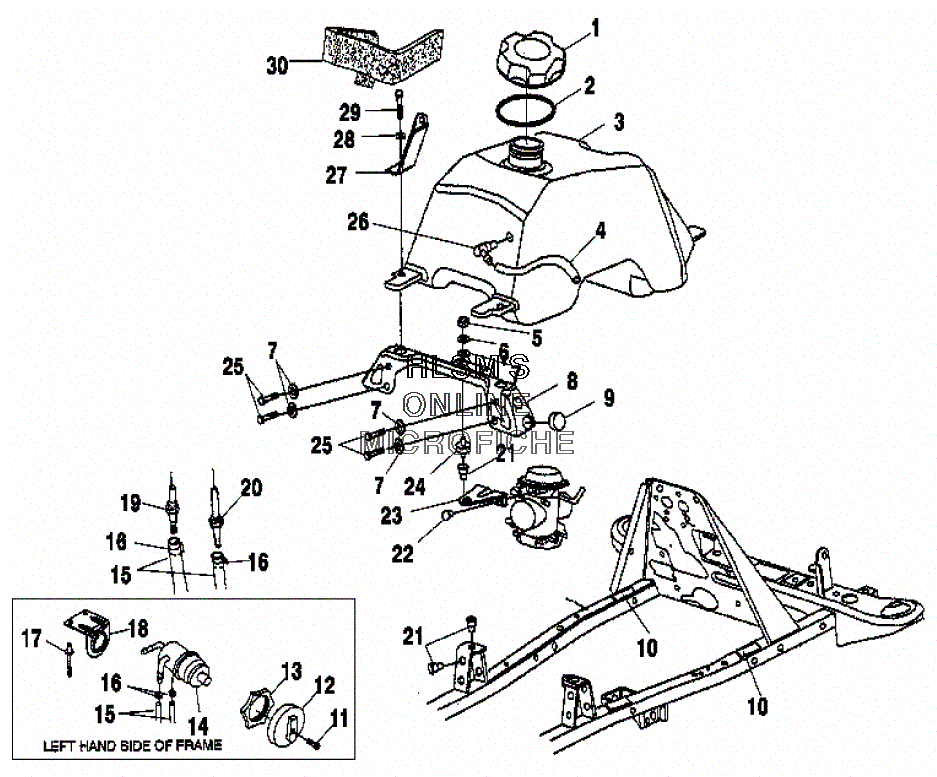

FUEL TANK AND CARBURETOR MOUNTING для Polaris XPEDITION 425 (A02CK42AB) (MOSSY OAK CAMO) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    5433687 CAP,GAS TANK [INCLUDES GASKET]
    CAP,GAS TANK [INCLUDES GASKET]
  • 2
    5812123 GASKET,GAS CAP
    GASKET,GAS CAP
  • 3
    2520174 TANK,FUEL ASM. [INCL. 19,20,26]
    TANK,FUEL ASM. [INCL. 19,20,26]
  • 4
    8360009-600 FUEL LINE,1/8 ID,600 CM. (OPT)
    FUEL LINE,1/8 ID,600 CM. (OPT)
  • 5
    7542105 NUT HEX(10)
    NUT HEX(10)
  • 6
    7552605 WASHER(10)
    WASHER(10)
  • 7
    7555859 WASHER, FLAT(10)
    WASHER, FLAT(10)
  • 8
    5245672-067 BRKT-CARB SUPPORT,BLK
    BRKT-CARB SUPPORT,BLK
  • 9
    5410414 BUMPER, RUBBER (10)
    BUMPER, RUBBER (10)
  • 10
    5810317 PAD,FUELTANK BRKT.
    PAD,FUELTANK BRKT.
  • 11
    7517505 SCREW(10)
    SCREW(10)
  • 12
    5432559 KNOB,FUEL VALVE
    KNOB,FUEL VALVE
  • 13
    5432733 NUT,FUELVALVE,ATV
    NUT,FUELVALVE,ATV
  • 14
    7052161 VALVE,3-WAY
    VALVE,3-WAY
  • 15
    8450040-600 FUEL LINE,1/4 ID(600 CM.) (OPT)
    FUEL LINE,1/4 ID(600 CM.) (OPT)
  • 16
    7080003 CLAMP,HOSE(10)
    CLAMP,HOSE(10)
  • 17
    7661637 RIVET,INTERLOCK,Z(50)
    RIVET,INTERLOCK,Z(50)
  • 18
    5240577-067 BRKT,FUELVALVE,BLK
    BRKT,FUELVALVE,BLK
  • 19
    7052146 FITTING,FUEL OUT,MAIN,Y
    FITTING,FUEL OUT,MAIN,Y
  • 20
    7052149 FITTING,FUEL OUT,RES.,Z
    FITTING,FUEL OUT,RES.,Z
  • 21
    7547069 NUTSERT,HEX(10)
    NUTSERT,HEX(10)
  • 22
    3084205 SCREW AND WASHER(10)
    SCREW AND WASHER(10)
  • 23
    5245673-067 MOUNT-425/500 CARB,BLK
    MOUNT-425/500 CARB,BLK
  • 24
    3110050 MOUNT,CARB.
    MOUNT,CARB.
  • 25
    7512276 BOLT(10)
    BOLT(10)
  • 26
    5431053 VENT, TANK
    VENT, TANK
  • 27
    5222154-067 BRKT,LH.R.FUELCOVER,BLK. (IF BUILT BEFORE 12/17/01)
    BRKT,LH.R.FUELCOVER,BLK. (IF BUILT BEFORE 12/17/01)
  • 27
    5222155-067 BRKT,RH.R.FUELCOVER,BLK. (IF BUILT BEFORE 12/17/01)
    BRKT,RH.R.FUELCOVER,BLK. (IF BUILT BEFORE 12/17/01)
  • 28
    7558301 WASHER(10)
    WASHER(10)
  • 29
    7512277 BOLT(10)
    BOLT(10)
  • 30
    5811899 FOAM-SEAL,17''
    FOAM-SEAL,17''
