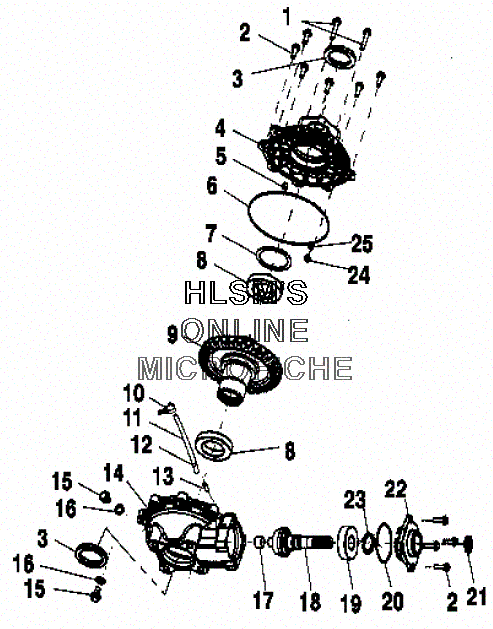

DIFFERENTIAL - REAR для Polaris XPEDITION 425 (A02CK42AB) (MOSSY OAK CAMO) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    3233585 SCREW
    SCREW
  • 2
    3233252 SCREW
    SCREW
  • 3
    3233256 SEAL
    SEAL
  • 4
    3233753 COVER-OUTPUT,REAR HOUSING
    COVER-OUTPUT,REAR HOUSING
  • 5
    3233529 PIPE,KNOCK
    PIPE,KNOCK
  • 6
    3233587 O-RING 166
    O-RING 166
  • 7
    3233581 SHIM 3.1 X 2.5 (OPT)
    SHIM 3.1 X 2.5 (OPT)
  • 8
    3233268 BEARING, BALL
    BEARING, BALL
  • 9
    3233740 GEAR (31 TEETH)
    GEAR (31 TEETH)
  • 10
    7670102 CLIP,SILENCER,(10)
    CLIP,SILENCER,(10)
  • 11
    8450003-1525 FUEL LINE,1/4 ID(1525 CM.) (OPT)
    FUEL LINE,1/4 ID(1525 CM.) (OPT)
  • 12
    7080307 CLAMP(10)
    CLAMP(10)
  • 13
    3233524 TUBE,VENT
    TUBE,VENT
  • 14
    3233739 GEARCASE,REAR HOUSING
    GEARCASE,REAR HOUSING
  • 15
    3233711 PLUG,OIL FILL
    PLUG,OIL FILL
  • 16
    3233324 WASHER
    WASHER
  • 17
    3233577 BUSHING
    BUSHING
  • 18
    3233768 SHAFT-PINION (10 TEETH)
    SHAFT-PINION (10 TEETH)
  • 19
    3233714 BEARING-BALL
    BEARING-BALL
  • 20
    3233588 O-RING 151
    O-RING 151
  • 21
    3233319 SEAL
    SEAL
  • 22
    3233573 GEARCASE,COVER
    GEARCASE,COVER
  • 23
    3233699 RING-RETAINING
    RING-RETAINING
  • 24
    3233582 THRUST BUTTON
    THRUST BUTTON
  • 25
    3233583 SHIM .450 X .265 (OPT)
    SHIM .450 X .265 (OPT)
  • 25
    1341342 GEARCASE,ASM,REAR [INCL. 1-9, 13-25]
    GEARCASE,ASM,REAR [INCL. 1-9, 13-25]
