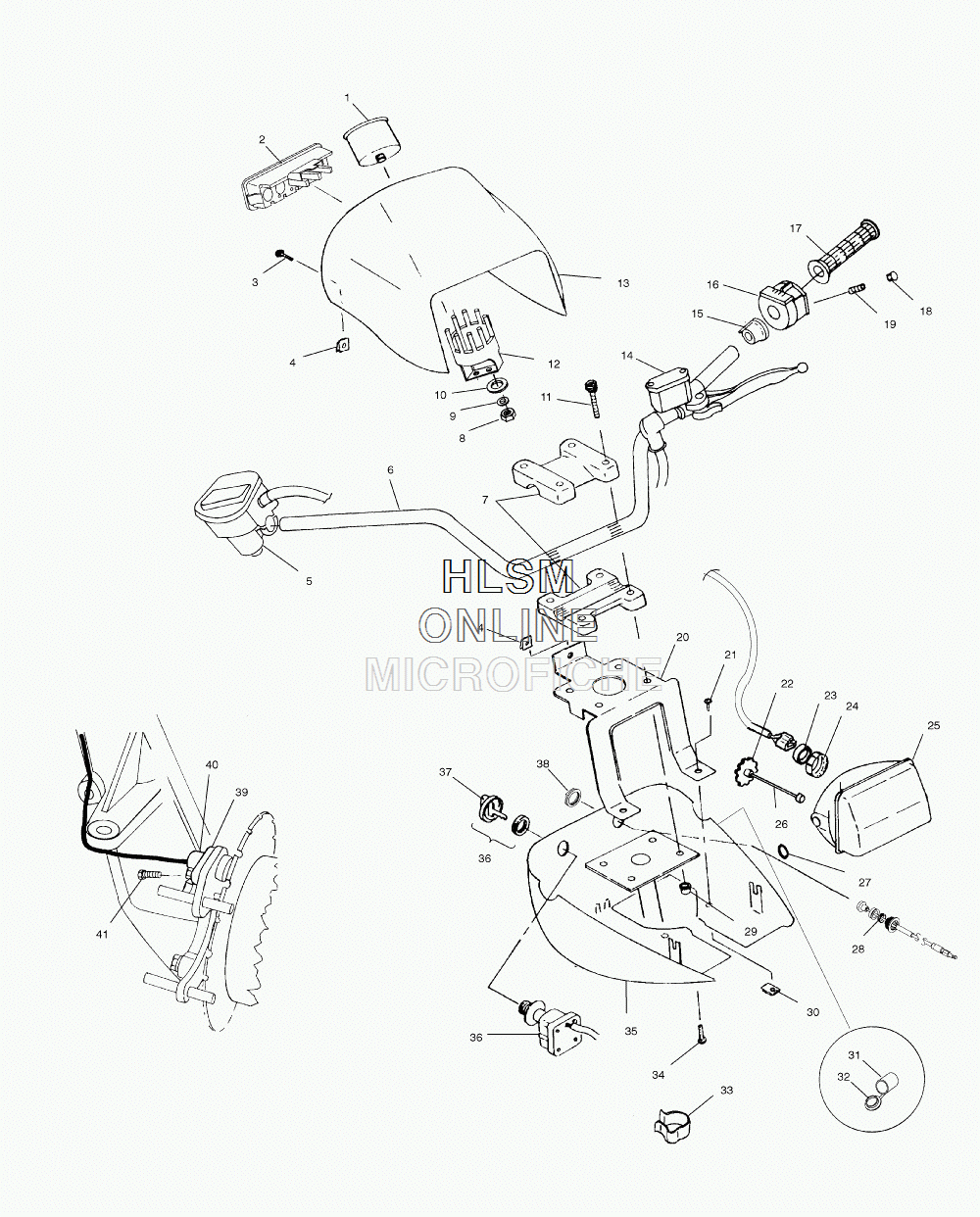

HANDLEBAR W/ HEADLIGHT для Polaris WORKER 500 (A02CH50EB) (PORCHE RED) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    3280377 SPEEDOMETER, KILO
    SPEEDOMETER, KILO
  • 2
    4010315 PANEL, INDICATOR LIGHT
    PANEL, INDICATOR LIGHT
  • 2
    4010416 BULB
    BULB
  • 3
    7511881 SCREW
    SCREW
  • 4
    7670086 NUT, U-TYPE
    NUT, U-TYPE
  • 6
    5242987-067 TUBE, HANDLEBAR
    TUBE, HANDLEBAR
  • 7
    2200774 KIT, HANDLEBAR BLOCK (INCL. BLOCKS AND 7,11,29)
    KIT, HANDLEBAR BLOCK (INCL. BLOCKS AND 7,11,29)
  • 7
    5630616 BLOCK, HANDLEBAR RETAINER
    BLOCK, HANDLEBAR RETAINER
  • 8
    7541933 NUT, BRASS
    NUT, BRASS
  • 9
    7555868 WASHER, LOCK
    WASHER, LOCK
  • 10
    7558212 WASHER, FLAT
    WASHER, FLAT
  • 11
    7515189 SCREW
    SCREW
  • 12
    3280291 CLAMP, SPEEDOMETER
    CLAMP, SPEEDOMETER
  • 13
    5433763-136 POD, HEADLIGHT, UPPER
    POD, HEADLIGHT, UPPER
  • 15
    5433903 SPACER, SWITCH, LEFT HAND
    SPACER, SWITCH, LEFT HAND
  • 16
    4010422 SWITCH, HANDLEBAR, H/L/O/REV./OR
    SWITCH, HANDLEBAR, H/L/O/REV./OR
  • 17
    5433834-070 GRIP, HANDLEBAR
    GRIP, HANDLEBAR
  • 18
    5432952 PLUG, HOLE
    PLUG, HOLE
  • 19
    7517625 SCREW, SET
    SCREW, SET
  • 20
    5244969-067 BRACKET, POD MOUNTING
    BRACKET, POD MOUNTING
  • 21
    7517317 SCREW
    SCREW
  • 22
    4032079 KNOB, ADJUSTING
    KNOB, ADJUSTING
  • 23
    5411120 BOOT, HEADLIGHT
    BOOT, HEADLIGHT
  • 24
    4032077 COLLAR, LOCKING
    COLLAR, LOCKING
  • 25
    2410268 ASM., HEADLAMP
    ASM., HEADLAMP
  • 25
    4010253 BULB, HEADLIGHT, 50W
    BULB, HEADLIGHT, 50W
  • 25
    2204143 KIT, HEADLIGHT HARNESS
    KIT, HEADLIGHT HARNESS
  • 26
    4032078 ROD, ADJUSTING
    ROD, ADJUSTING
  • 27
    5410163 O-RING
    O-RING
  • 28
    7081008 CABLE, CHOKE
    CABLE, CHOKE
  • 29
    7542122 NUT, NYLOK
    NUT, NYLOK
  • 30
    7670089 NUT, U-TYPE
    NUT, U-TYPE
  • 31
    4010283 RECEPTACLE, POD MOUNT, 12V
    RECEPTACLE, POD MOUNT, 12V
  • 32
    5411744 CAP, RUBBER
    CAP, RUBBER
  • 33
    7080631 CLIP, CABLE RETAINING
    CLIP, CABLE RETAINING
  • 34
    7522021 SCREW
    SCREW
  • 35
    5433762-070 POD, HEADLIGHT, LOWER
    POD, HEADLIGHT, LOWER
  • 36
    4010390 SWITCH, IGNITION (INCL. KEY)
    SWITCH, IGNITION (INCL. KEY)
  • 36
    4010278 BLANK, KEY, SERIES 2000, 6700, 6800. (SEE NOTE)
    BLANK, KEY, SERIES 2000, 6700, 6800. (SEE NOTE)
  • 36
    4010321 BLANK, KEY, SERIES 2200, 2300, 2700, 2800. (SEE NOTE)
    BLANK, KEY, SERIES 2200, 2300, 2700, 2800. (SEE NOTE)
  • 37
    5433534 COVER, KEY
    COVER, KEY
  • 38
    7080922 NUT, CHOKE
    NUT, CHOKE
  • 39
    4010298 SENSOR, HALL EFFECT
    SENSOR, HALL EFFECT
  • 40
    5132382 CAP, HALL SENSOR
    CAP, HALL SENSOR
  • 41
    7517658 SCREW
    SCREW
