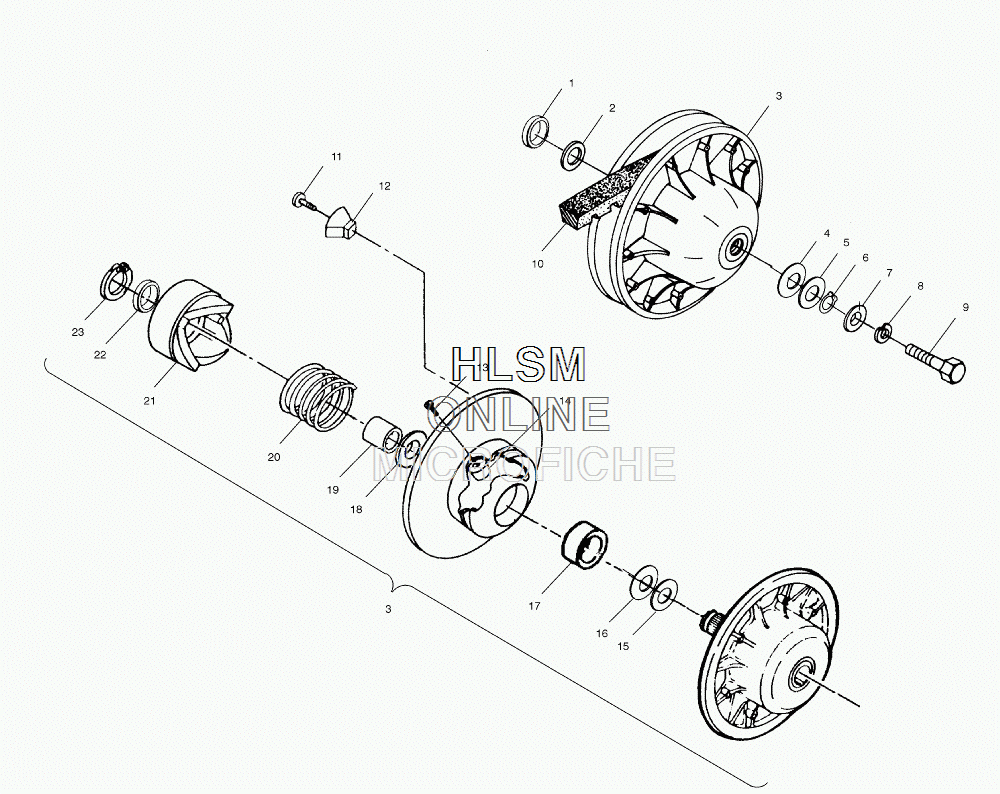

CLUTCH - DRIVEN для Polaris WORKER 500 (A02CH50EB) (PORCHE RED) - 2002 года выпуска
-
№АртикулНазвание
-
15010409 SPACER, DRIVENSPACER, DRIVEN
-
27556120 BUSHINGBUSHING
-
31322182 ASM., DRIVEN CLUTCH (INCL. 11-19,22,23)ASM., DRIVEN CLUTCH (INCL. 11-19,22,23)
-
47556013 WASHER (IF BUILT BEFORE 3/20/01)WASHER (IF BUILT BEFORE 3/20/01)
-
47556203 WASHER (IF BUILT AFTER 3/20/01)WASHER (IF BUILT AFTER 3/20/01)
-
57556010 BUSHINGBUSHING
-
67710461 RING, RETAININGRING, RETAINING
-
75220646 WASHER, DOMEDWASHER, DOMED
-
87552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
97515327 BOLTBOLT
-
103211069 BELT, DRIVEBELT, DRIVE
-
117511854 BOLTBOLT
-
125430766 BUTTON, RAMPBUTTON, RAMP
-
137517323 SCREWSCREW
-
141321977 ROLLER, TAPERROLLER, TAPER
-
157555898 WASHER (.020)WASHER (.020)
-
157556076 WASHER (.025)WASHER (.025)
-
167556804 WASHER (.030)WASHER (.030)
-
173576504 BEARINGBEARING
-
193576511 BEARING, MOVEABLE, 1 INCHBEARING, MOVEABLE, 1 INCH
-
207041198 SPRINGSPRING
-
215131674 RAMP, STATIONARYRAMP, STATIONARY
-
215132344 RAMP, STATIONARYRAMP, STATIONARY
-
225210752 SPACERSPACER
-
237710448 RING, RETAININGRING, RETAINING
