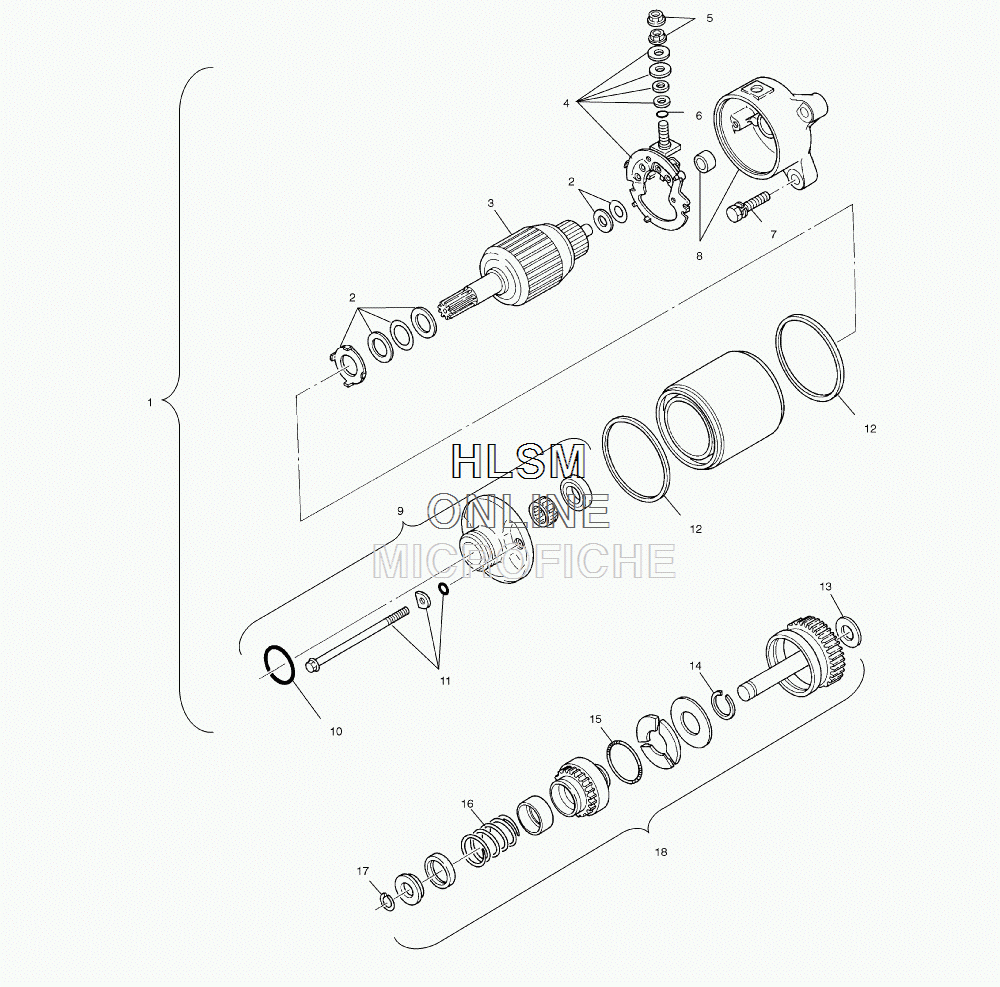

STARTING MOTOR для Polaris SPORTSMAN X (A02CH50AJ) (SONIC BLUE) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    3084981 MOTOR, STARTING (INCL. 2-6,8-12)
    MOTOR, STARTING (INCL. 2-6,8-12)
  • 2
    3084982 WASHER SET
    WASHER SET
  • 3
    3085353 ARMATURE
    ARMATURE
  • 4
    3084406 BRUSH
    BRUSH
  • 5
    3083649 NUT, FLANGE
    NUT, FLANGE
  • 6
    3084408 O-RING
    O-RING
  • 7
    3082038 BOLT AND WASHER
    BOLT AND WASHER
  • 8
    3085034 BRACKET, REAR
    BRACKET, REAR
  • 9
    3085033 BRACKET, FRONT (INCL. 10)
    BRACKET, FRONT (INCL. 10)
  • 10
    3240114 O-RING
    O-RING
  • 11
    3084983 ASM., SET BOLT (INCL. 6)
    ASM., SET BOLT (INCL. 6)
  • 12
    3084405 RING, RUBBER
    RING, RUBBER
  • 13
    3083737 WASHER, GEAR SHAFT
    WASHER, GEAR SHAFT
  • 14
    3084412 CLIP
    CLIP
  • 15
    3084411 SPRING, WEIGHT
    SPRING, WEIGHT
  • 16
    3084410 SPRING, RETURN
    SPRING, RETURN
  • 17
    3084409 CLIP
    CLIP
  • 18
    3087030 ASM., GEAR SHAFT (INCL. 13-17)
    ASM., GEAR SHAFT (INCL. 13-17)
