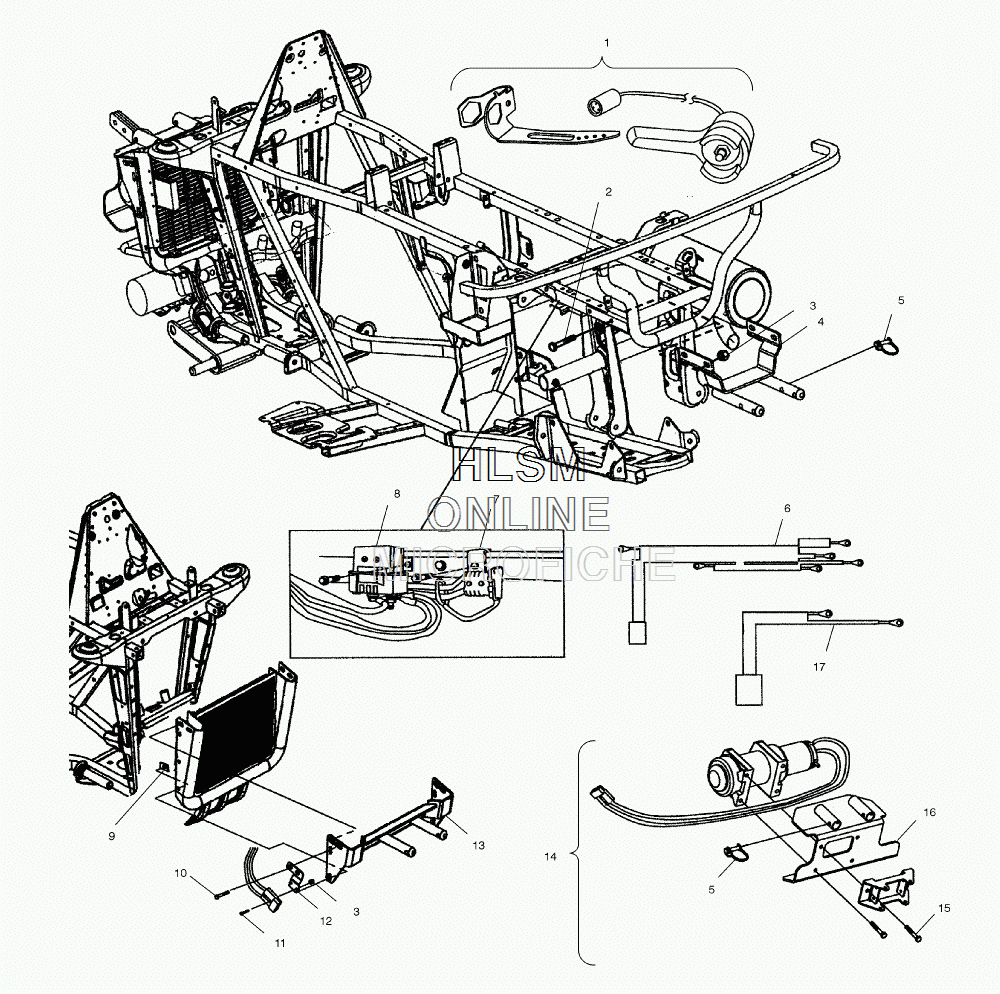

MULTI MOUNT WINCH для Polaris SPORTSMAN X (A02CH50AJ) (SONIC BLUE) - 2002 года выпуска
-
№АртикулНазвание
-
12202140 KIT, WINCH REMOTE HOLSTER WIREKIT, WINCH REMOTE HOLSTER WIRE
-
27515319 BOLTBOLT
-
37541602 NUTNUT
-
41541536-067 MOUNT, RECEIVER, REARMOUNT, RECEIVER, REAR
-
57661114 PINPIN
-
62460916 HARNESS, BATTERYHARNESS, BATTERY
-
71541637-067 PLATE, REARPLATE, REAR
-
82202139 KIT, WINCH CONTRACTOR AND BRACKETKIT, WINCH CONTRACTOR AND BRACKET
-
97670096 NUT, CHIMNEYNUT, CHIMNEY
-
107517208 SCREWSCREW
-
117515180 SCREWSCREW
-
121541636-067 PLATE, FRONTPLATE, FRONT
-
131541537-067 MOUNT, RECEIVER, FRONTMOUNT, RECEIVER, FRONT
-
142202142 KIT, WINCH ASM., 2500 LB CABLEKIT, WINCH ASM., 2500 LB CABLE
-
157517914 BOLTBOLT
-
161541535-067 MOUNT, WINCHMOUNT, WINCH
-
172460929 HARNESS, MAINHARNESS, MAIN
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - REAR W/ FOOT PEDAL
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- CONTROLS - MASTER CYLINDER W/ BRAKE LINES
- CONTROLS - THROTTLE ASSY.
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER
- DECALS
- DIFFERENTIAL - FRONT
- DRIVESHAFT - FRONT
- DRIVESHAFT - INTERMEDIATE
- DRIVESHAFT - REAR
- ELECTRICAL W/ TAILLIGHT ASSY.
- EXHAUST SYSTEM
- FENDER - FRONT W/ SIDE PANELS
- FENDER - REAR W/ SEAT
- FRAME MOUNTING FOR GEAR SELECTOR
- FUEL PUMP
- FUEL TANK
- GEAR SELECTOR
- GEARCASE - CASE AND SNORKLE
- GEARCASE - INTERNAL COMPONENTS
- HANDLEBAR W/ HEADLIGHT
- MAGNETO
- MOUNTING - ENGINE
- • MULTI MOUNT WINCH
- OIL FILTER
- OIL PUMP
- OIL TANK (IF BUILT AFTER 1/02/02)
- OIL TANK (IF BUILT BEFORE 1/02/02)
- RACK AND BUMPER MOUNTING - FRONT
- RACK AND BUMPER MOUNTING - REAR
- STARTER - RECOIL
- STARTING MOTOR
- STEERING POST
- SUSPENSION - FRONT A - ARM W/ TIE RODS
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR
- TOOL KIT
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR
