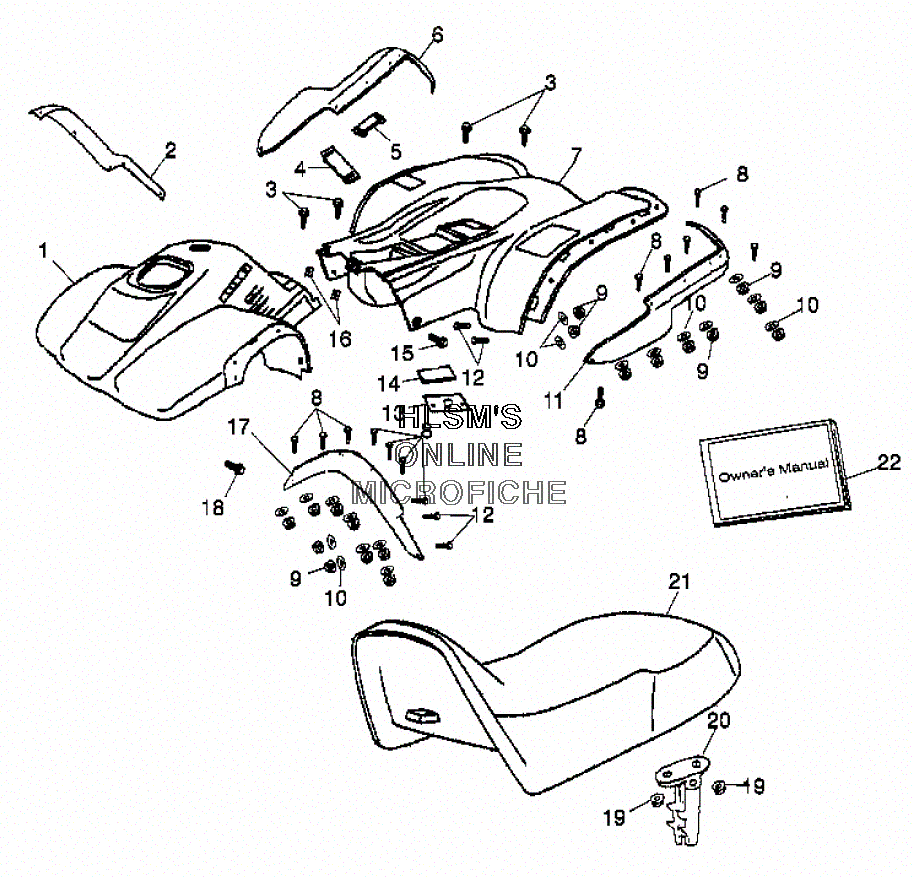

FENDER - FRONT/ REAR W/ SEAT для Polaris SPORTSMAN 90 (A02FA09CC) (GRAY) - 2002 года выпуска
-
№АртикулНазвание
-
10451010 CAB, FRONT [GRAY]CAB, FRONT [GRAY]
-
20450627 MUDFLAP-FRONT,RHMUDFLAP-FRONT,RH
-
30450340 BOLT-HEXBOLT-HEX
-
40450897 STRAP BATTERYSTRAP BATTERY
-
50450898 STRAP TOOL BOXSTRAP TOOL BOX
-
60450629 MUDFLAP-REAR,RHMUDFLAP-REAR,RH
-
70451011 CAB, REAR [GRAY]CAB, REAR [GRAY]
-
80450667 BOLT,PHILLIPSBOLT,PHILLIPS
-
90450741 NUT,LOCKNUT,LOCK
-
100450710 WASHER-PLAINWASHER-PLAIN
-
110450628 MUDFLAP-REAR,LHMUDFLAP-REAR,LH
-
120450622 BOLT-PHILLIPSBOLT-PHILLIPS
-
130450345 PAD,FOIL,PROTECTORPAD,FOIL,PROTECTOR
-
140450346 FOAM,BATTERY PADFOAM,BATTERY PAD
-
150450297 BOLT-PANBOLT-PAN
-
160450342 NUT-U-PLATENUT-U-PLATE
-
170450626 MUDFLAP-FRONT,LHMUDFLAP-FRONT,LH
-
180450824 BOLT-W/WSHR,HEXBOLT-W/WSHR,HEX
-
190450880 NUT-FLG W/SERRNUT-FLG W/SERR
-
200450356 HOOK,SEATHOOK,SEAT
-
210450631 ASM,SEATASM,SEAT
-
229917080 MAN-OWN,02 YOUTH MODELSMAN-OWN,02 YOUTH MODELS
