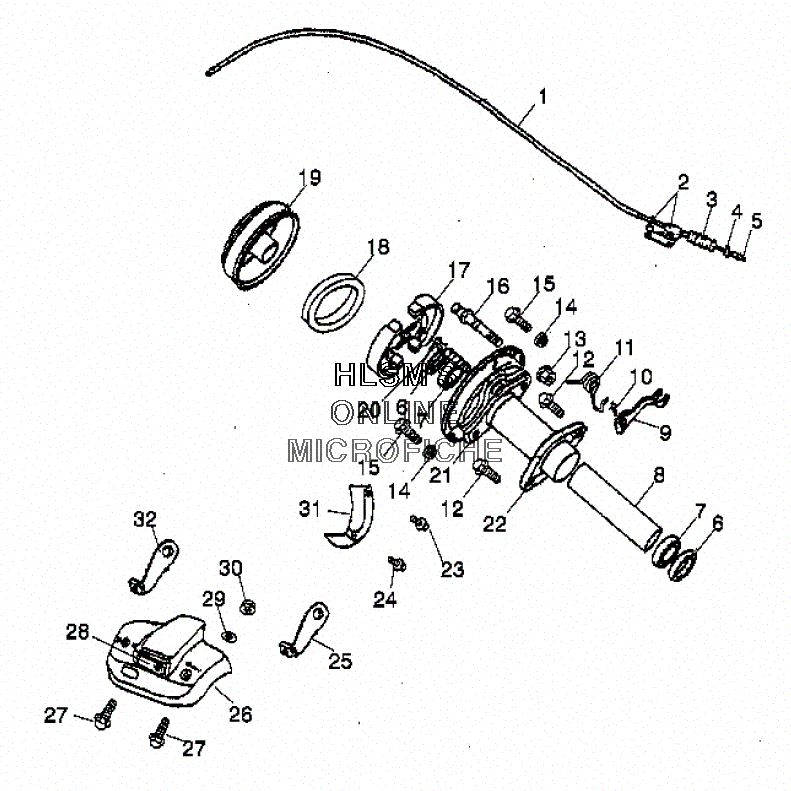

BRAKE - REAR для Polaris SPORTSMAN 90 (A02FA09CC) (GRAY) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    0450438 CABLE,REAR BRAKE
    CABLE,REAR BRAKE
  • 2
    0450268 NUT-FLANGE
    NUT-FLANGE
  • 3
    0450435 SPRING-CABLE,REAR BRAKE
    SPRING-CABLE,REAR BRAKE
  • 4
    0450437 FIXTURE-RR BRK
    FIXTURE-RR BRK
  • 5
    0450436 NUT-ADJUST,BRAKE
    NUT-ADJUST,BRAKE
  • 6
    0450430 SEAL-OIL
    SEAL-OIL
  • 7
    0450429 BEARING,NEEDLE
    BEARING,NEEDLE
  • 8
    0450428 TUBE,SPACER
    TUBE,SPACER
  • 9
    0450432 BRAKE,REAR ASM
    BRAKE,REAR ASM
  • 10
    0450433 BOLT-HEX
    BOLT-HEX
  • 11
    0450453 SPRING,BRAKE ARM,REAR
    SPRING,BRAKE ARM,REAR
  • 12
    0450451 BOLT-HEX
    BOLT-HEX
  • 13
    0450881 NUT-LOCK,NYLON
    NUT-LOCK,NYLON
  • 14
    0450529 NUT-FLANGE
    NUT-FLANGE
  • 15
    0450452 BOLT,HEX
    BOLT,HEX
  • 16
    0450854 SHAFT-FIX,RR BRK
    SHAFT-FIX,RR BRK
  • 17
    0450434 SHOE,REAR BRAKE
    SHOE,REAR BRAKE
  • 18
    0450442 RUBBER,PROTECTIVE
    RUBBER,PROTECTIVE
  • 19
    0450441 DRUM,REAR BRAKE
    DRUM,REAR BRAKE
  • 20
    0450431 SHAFT,CAM,REAR BRAKE
    SHAFT,CAM,REAR BRAKE
  • 21
    0450440 PLATE,REAR BRAKE
    PLATE,REAR BRAKE
  • 22
    0450427 SEAT,FIXED,REAR AXLE
    SEAT,FIXED,REAR AXLE
  • 23
    0450325 BOLT-HEX
    BOLT-HEX
  • 24
    0450298 BOLT-HEX
    BOLT-HEX
  • 25
    0450812 BRACKET-GUARD,RH
    BRACKET-GUARD,RH
  • 26
    0450751 COVER,REAR
    COVER,REAR
  • 27
    0450340 BOLT-HEX
    BOLT-HEX
  • 28
    0450446 REFLECTOR,REAR
    REFLECTOR,REAR
  • 29
    0450643 WASHER-PLAIN
    WASHER-PLAIN
  • 30
    0450447 NUT-FLANGE
    NUT-FLANGE
  • 31
    0450833 COVER-PROTECTIVE
    COVER-PROTECTIVE
  • 32
    0450813 BRACKET-GUARD,LH
    BRACKET-GUARD,LH
