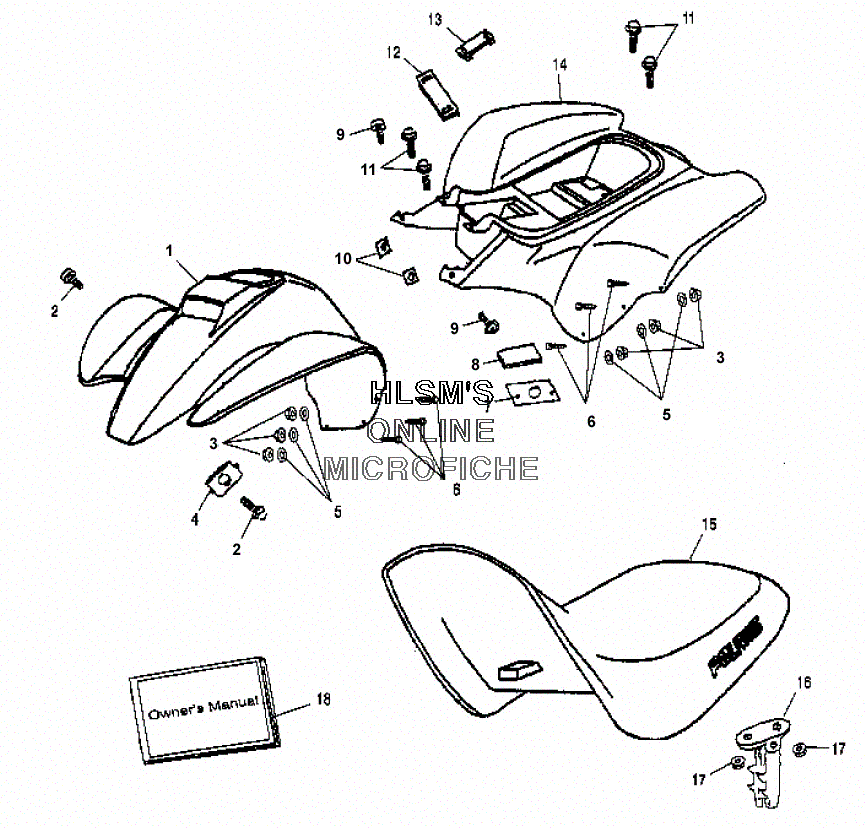

FENDER - FRONT / REAR W/ SEAT для Polaris SCRAMBLER 50 (A02EA05CA) - 2002 года выпуска
-
№АртикулНазвание
-
10450619 FENDER,FRONT,SCR,RED 61100-151-FENDER,FRONT,SCR,RED 61100-151-
-
20450824 BOLT-W/WSHR,HEXAGON 92003-06016BOLT-W/WSHR,HEXAGON 92003-06016
-
30450741 NUT,LOCK 90350-05000KNUT,LOCK 90350-05000K
-
40450353 PLATE,FIXED 31520-131-000PLATE,FIXED 31520-131-000
-
50450710 WASHER-PLAINWASHER-PLAIN
-
60450667 BOLT,PHILLIPSBOLT,PHILLIPS
-
70450345 PAD,FOIL,PROTECTORPAD,FOIL,PROTECTOR
-
80450346 FOAM,BATTERY PAD 31510-131-000FOAM,BATTERY PAD 31510-131-000
-
90450297 BOLT-PANBOLT-PAN
-
100450342 NUT-U-PLATENUT-U-PLATE
-
110450340 BOLT-HEXAGON 92000-06016-KBOLT-HEXAGON 92000-06016-K
-
120450897 STRAP BATTERY 90750-131-001STRAP BATTERY 90750-131-001
-
130450898 STRAP TOOL BOX 90760-151-001STRAP TOOL BOX 90760-151-001
-
140450620 FENDER,REAR,SCRAMBLER 61000-151FENDER,REAR,SCRAMBLER 61000-151
-
150450355 SEAT,ASSY,SCRAMBLER 77200-151-00SEAT,ASSY,SCRAMBLER 77200-151-00
-
160450356 HOOK,SEAT 77210-131-000HOOK,SEAT 77210-131-000
-
170450880 NUT-FLG W/SERR 94050-06000-NUT-FLG W/SERR 94050-06000-
-
189917080 MAN-OWN,02 YOUTH MODELSMAN-OWN,02 YOUTH MODELS
