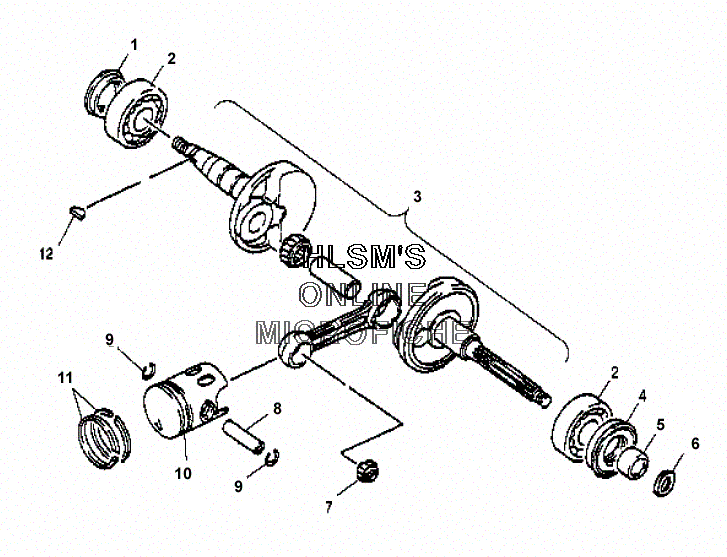

CRANKSHAFT W/ CYLINDER для Polaris SCRAMBLER 50 (A02EA05CA) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    0450018 SEAL OIL
    SEAL OIL
  • 2
    0450016 BEARING-BALL,RADL,96100-62040
    BEARING-BALL,RADL,96100-62040
  • 3
    0450013 CRANKSHAFT
    CRANKSHAFT
  • 4
    0450017 SEAL-OIL
    SEAL-OIL
  • 5
    0450019 COLLAR,CRANK,(LEFT)
    COLLAR,CRANK,(LEFT)
  • 6
    0450654 WASHER-PLAIN
    WASHER-PLAIN
  • 7
    0450028 BEARING-NEEDLE,96200-101412
    BEARING-NEEDLE,96200-101412
  • 8
    0450022 PIN-PISTON
    PIN-PISTON
  • 9
    0450026 CLIP-PISTON PIN
    CLIP-PISTON PIN
  • 10
    0450801 PISTON-50CC (STD) (STD)
    PISTON-50CC (STD) (STD)
  • 10
    0450652 PISTON-50CC (.25MM O/S) (.25 MM O/S)
    PISTON-50CC (.25MM O/S) (.25 MM O/S)
  • 10
    0450733 PISTON-50CC (.50MM O/S) (.50 MM O/S)
    PISTON-50CC (.50MM O/S) (.50 MM O/S)
  • 11
    0450024 RING,PISTON(2PC SET)-STD 50CC (STD)
    RING,PISTON(2PC SET)-STD 50CC (STD)
  • 11
    0450810 RING SET,2PC - 50CC .25MM O/S (.25 MM O/S)
    RING SET,2PC - 50CC .25MM O/S (.25 MM O/S)
  • 11
    0450734 RING SET,2PC - 50CC .50MM O/S (.50 MM O/S)
    RING SET,2PC - 50CC .50MM O/S (.50 MM O/S)
  • 12
    0450015 KEY-SEMICYCLE,90471-111-000
    KEY-SEMICYCLE,90471-111-000
