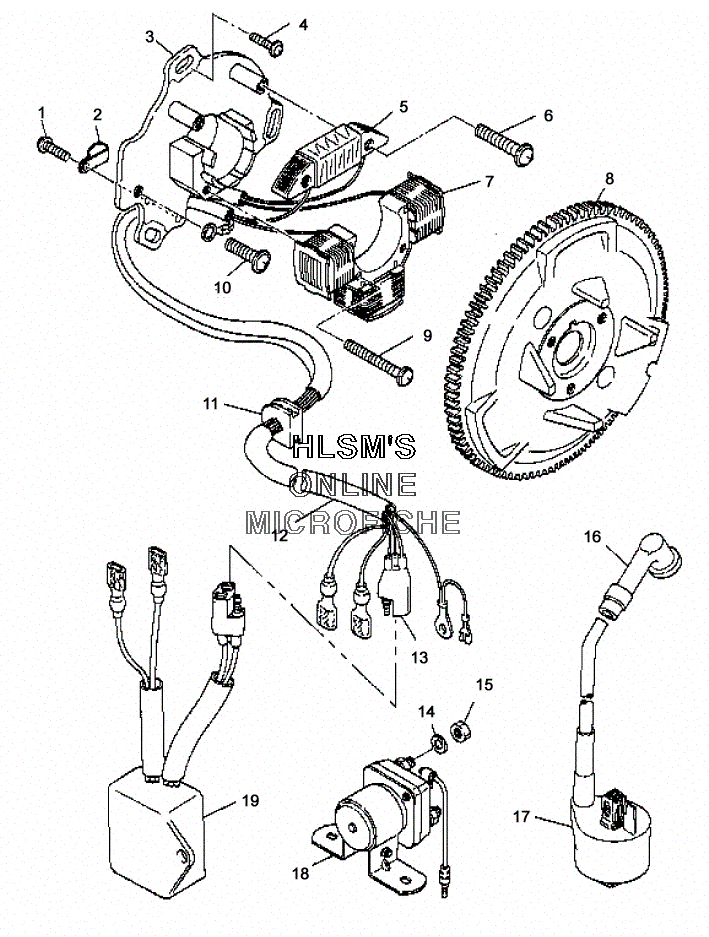

MAGNETO для Polaris SCRAMBLER 400 2X4 (A02BA38CA) - 2002 года выпуска`
-
№АртикулНазвание
-
13081256 SCREWANDWASHER ASMSCREWANDWASHER ASM
-
23081146 CLAMPCLAMP
-
33084785 PLATE ASM. [INCL. 1-3,5-7,9-13]PLATE ASM. [INCL. 1-3,5-7,9-13]
-
33084786 PLATE, COILPLATE, COIL
-
43084766 SCREW, FLANGESCREW, FLANGE
-
53083422 COIL, EXCITINGCOIL, EXCITING
-
63083423 SCREW AND WASHERSCREW AND WASHER
-
73084788 PLATE ASM.PLATE ASM.
-
83084784 FLYHEEL,W/RING GEARFLYHEEL,W/RING GEAR
-
93081342 SCREWANDWASHER ASMSCREWANDWASHER ASM
-
103081260 SCREWANDWASHER,SCREWANDWASHER,
-
113084789 GROMMETGROMMET
-
123084787 HARNESS, WIREHARNESS, WIRE
-
133083909 COUPLERCOUPLER
-
143080077 WASHER SPRINGWASHER SPRING
-
153083073 NUTNUT
-
164020129 CAP SPARK PLUG,CAP SPARK PLUG,
-
173083923 COIL, IGNITION *COIL, IGNITION *
-
183085521 SOLENOID *SOLENOID *
-
193084790 CDI SYSTEMCDI SYSTEM
