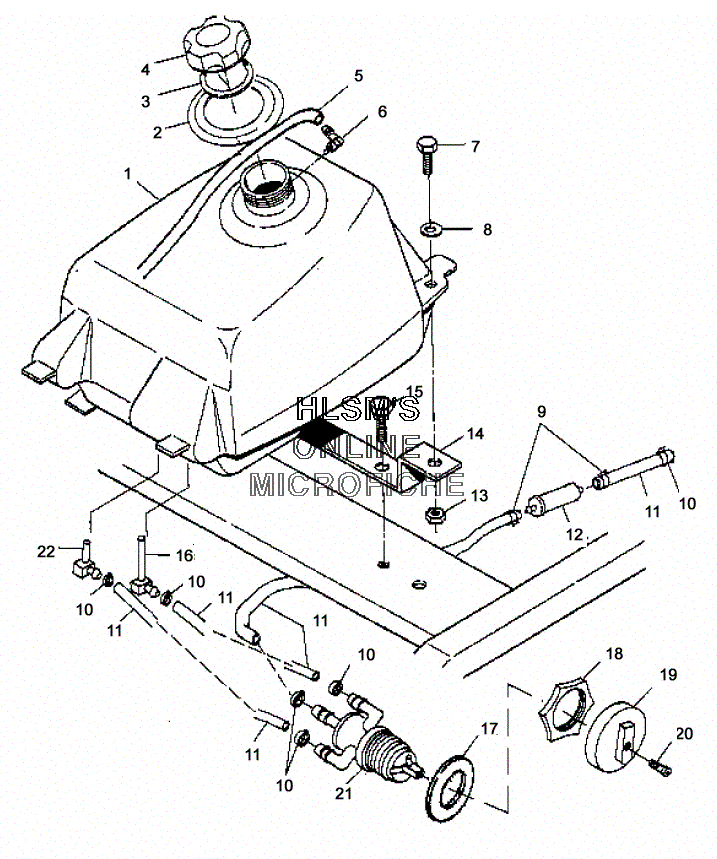

FUEL TANK для Polaris SCRAMBLER 400 2X4 (A02BA38CA) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    1240082 FUELTANK,90-,PERPENDICULR [INCL. 6,16,22]
    FUELTANK,90-,PERPENDICULR [INCL. 6,16,22]
  • 2
    5410842 GROMMET,FUELTANK
    GROMMET,FUELTANK
  • 3
    5812123 GASKET,GAS CAP
    GASKET,GAS CAP
  • 4
    5433687 CAP,GAS TANK
    CAP,GAS TANK
  • 5
    8360009-600 FUEL LINE,1/8 ID,600 CM.
    FUEL LINE,1/8 ID,600 CM.
  • 6
    5431053 VENT, TANK
    VENT, TANK
  • 7
    7512310 SCREW
    SCREW
  • 8
    7555734 WASHER
    WASHER
  • 9
    7080534 CLAMP,SPRING,
    CLAMP,SPRING,
  • 10
    7080003 CLAMP,HOSE
    CLAMP,HOSE
  • 11
    8450040-600 FUEL LINE,1/4 ID(600 CM.)
    FUEL LINE,1/4 ID(600 CM.)
  • 12
    2530008 FILTER FUEL,
    FILTER FUEL,
  • 13
    7542324 NUT
    NUT
  • 14
    5220916-067 BRKT,R.TANK MT,BLK.
    BRKT,R.TANK MT,BLK.
  • 15
    7512208 SCREW
    SCREW
  • 16
    7052147 ELBOW, MAIN
    ELBOW, MAIN
  • 17
    5242977 SPACER,FUEL VALVE
    SPACER,FUEL VALVE
  • 18
    5432733 NUT,FUELVALVE,ATV
    NUT,FUELVALVE,ATV
  • 19
    5432559 KNOB,FUEL VALVE
    KNOB,FUEL VALVE
  • 20
    7517505 SCREW
    SCREW
  • 21
    7052154 VALVE,3-WAY,HORIZ PORTS
    VALVE,3-WAY,HORIZ PORTS
  • 22
    7052148 FITTING,FUEL OUT,90DEG,RES,Z
    FITTING,FUEL OUT,90DEG,RES,Z
