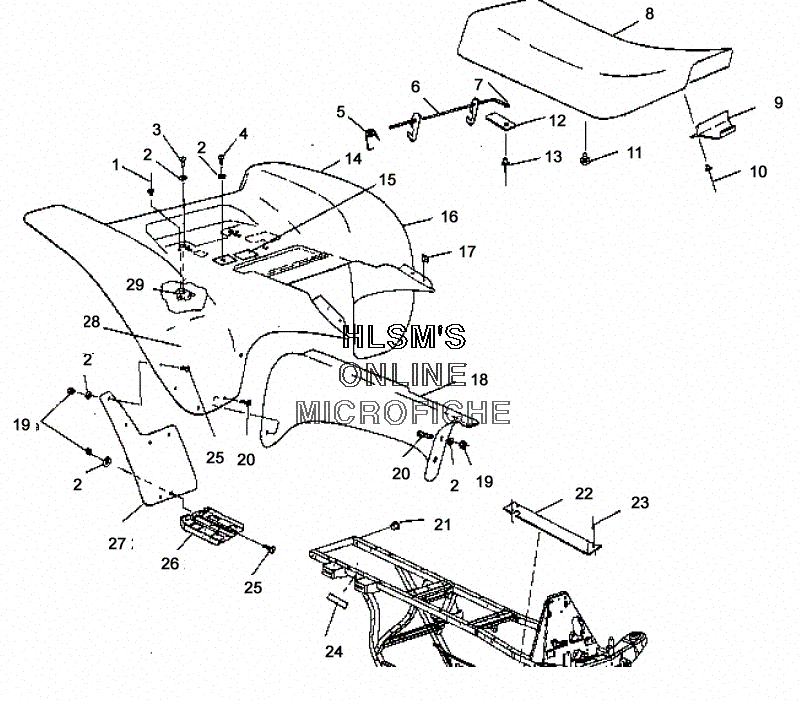

FENDER - REAR W/ SEAT для Polaris SCRAMBLER 400 2X4 (A02BA38CA) - 2002 года выпуска`
-
№АртикулНазвание
-
17621472 RIVET(50)RIVET(50)
-
27555859 WASHER, FLATWASHER, FLAT
-
37512232 BOLTBOLT
-
47512242 SCREWSCREW
-
57041607 SPRING,LATCH,LIGHTSPRING,LATCH,LIGHT
-
61040412 LATCH, SEATBACKLATCH, SEATBACK
-
75411392 CAP,SEATLATCH,GEN 3CAP,SEATLATCH,GEN 3
-
82682453-288 SEAT,RED,W/WHITE ''POLARIS''SEAT,RED,W/WHITE ''POLARIS''
-
82681769-288 COVER,SEAT,BLAZ.REDCOVER,SEAT,BLAZ.RED
-
95431986 TONGUE,SEATTONGUE,SEAT
-
107621479 RIVET(50)RIVET(50)
-
115412067 BUMPER-RUBBERBUMPER-RUBBER
-
125211033 BRACKET,LEVER RETAINERBRACKET,LEVER RETAINER
-
137621403 BLIND RIVET(50)BLIND RIVET(50)
-
145810991 FOIL, REAR CAB, SMALLFOIL, REAR CAB, SMALL
-
157079901 DECAL-2 STRK,CARB/FILTER INFODECAL-2 STRK,CARB/FILTER INFO
-
165434014-288 CAB-REAR,GEN 3,BLAZING REDCAB-REAR,GEN 3,BLAZING RED
-
177670057 NUT, SPEEDNUT, SPEED
-
182632274 SHIELD,MUFFLER/FOIL ASM,GEN3SHIELD,MUFFLER/FOIL ASM,GEN3
-
185811113 FOIL,FOAMFOIL,FOAM
-
197542122 NUT-LOCKNUT-LOCK
-
207517264 SCREWSCREW
-
215432831 PLUG,ENDCAP,RIBBEDPLUG,ENDCAP,RIBBED
-
225241403-067 GUARD-CLUTCH, BLKGUARD-CLUTCH, BLK
-
237661637 RIVET,INTERLOCK,Z(50)RIVET,INTERLOCK,Z(50)
-
247079925 DECAL-REFLECT.2.88,REDDECAL-REFLECT.2.88,RED
-
257512282 BOLT, BLACKBOLT, BLACK
-
275812134 MUDFLAP-REAR,HYBRID,LHMUDFLAP-REAR,HYBRID,LH
-
275850148 MUDFLAP,RH,R.HYBRIDMUDFLAP,RH,R.HYBRID
-
285810957 FOIL, REAR CABFOIL, REAR CAB
-
295220880 BRKT,R.HOLDDOWNBRKT,R.HOLDDOWN
