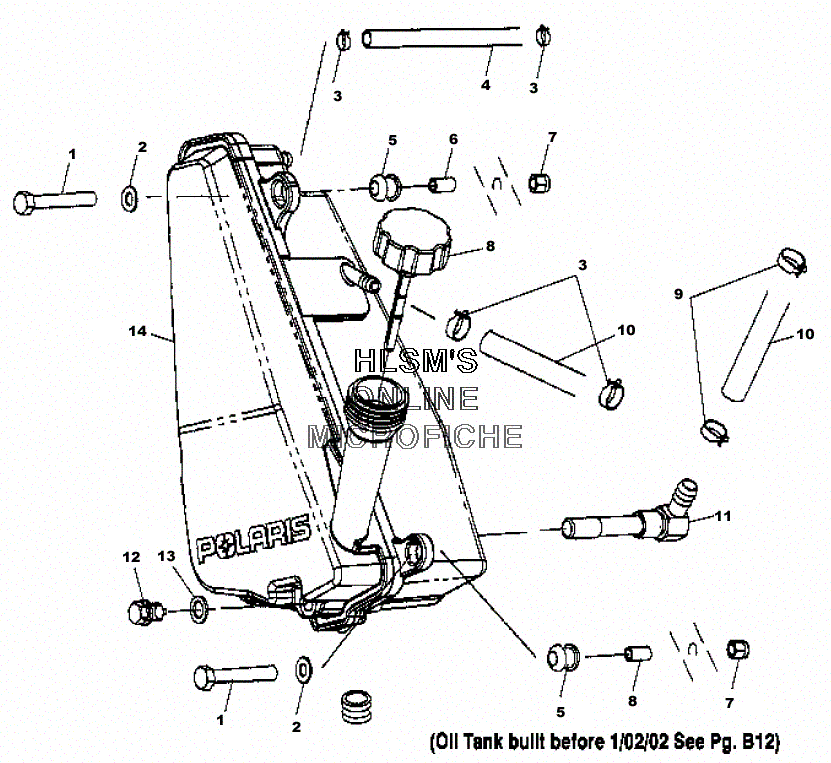

OIL TANK (IF BUILT AFTER 1/02/02) для Polaris MAGNUM 500 (A02CD50AA) - 2002 года выпуска`
-
№АртикулНазвание
-
17512130 BOLTBOLT
-
27558301 WASHERWASHER
-
37080699 CLAMP,HOSECLAMP,HOSE
-
45411668 BREATHER-LINE-112 CM,SLITBREATHER-LINE-112 CM,SLIT
-
55410828 GROMMET,MTG,RESERVOIRGROMMET,MTG,RESERVOIR
-
65333204 BUSHING,MTG.BUSHING,MTG.
-
77542122 NUT-LOCKNUT-LOCK
-
85434308 DIPSTICK-OIL TANK,GEN IVDIPSTICK-OIL TANK,GEN IV
-
97081026 CLAMP-HOSE,SPRING .81CLAMP-HOSE,SPRING .81
-
108450096-16 LINE-GOODYEAR,1/2''SAE 30R7-100LINE-GOODYEAR,1/2''SAE 30R7-100
-
117052326 SCREEN-OIL FILTER,900SCREEN-OIL FILTER,900
-
127051524 PLUG,MAG.12 M.PLUG,MAG.12 M.
-
135850135 WASHERWASHER
-
141261176 TANK,OIL-WELDMENT,GEN IVTANK,OIL-WELDMENT,GEN IV
