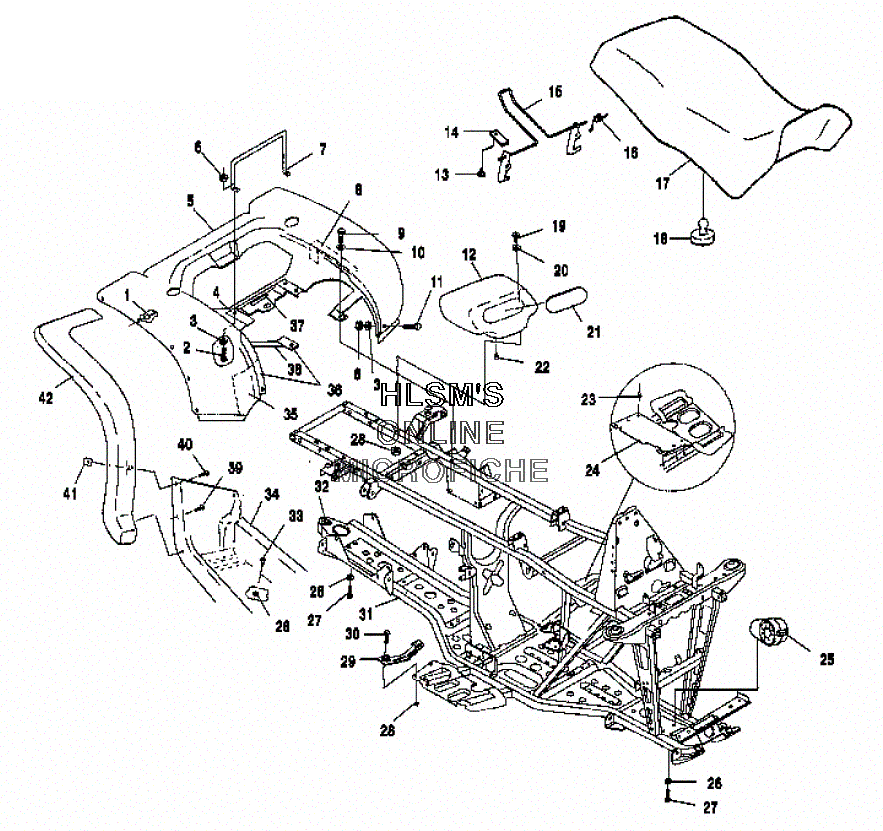

FENDER - REAR W/ SEAT - FRAME для Polaris WORKER 500 (A01CH50EB) - 2001 года выпуска`
-
№АртикулНазвание
-
17661645 RIVETRIVET
-
27511930 SCREWSCREW
-
37555792 WASHERWASHER
-
45811107 FOIL, CAB (REAR)FOIL, CAB (REAR)
-
55432117-136 CAB, GEN 4 (PORCHE RED/REAR)CAB, GEN 4 (PORCHE RED/REAR)
-
67541925 NUTNUT
-
75224592 RETAINER, SEAT LATCHRETAINER, SEAT LATCH
-
85811308 FOIL, TAPE (3 X 12)FOIL, TAPE (3 X 12)
-
7512242 SCREWSCREW
-
107555859 WASHER, FLATWASHER, FLAT
-
117512085 SCREWSCREW
-
125431786 TOOLBOXTOOLBOX
-
137621403 BLIND RIVETBLIND RIVET
-
145211033 BRACKET, LEVER RETAINERBRACKET, LEVER RETAINER
-
151040387 LATCH, SEATLATCH, SEAT
-
167041370 SPRING, LATCHSPRING, LATCH
-
172682441-070 SEAT (BLACK)SEAT (BLACK)
-
172681747-070 COVER, SEAT (BLACK)COVER, SEAT (BLACK)
-
175811104 FOIL, SEATBASE (LARGE)FOIL, SEATBASE (LARGE)
-
175811105 FOIL, SEATBASE (SMALL)FOIL, SEATBASE (SMALL)
-
185412067 BUMPER, RUBBERBUMPER, RUBBER
-
197517375 WASHERWASHER
-
207555748 WASHERWASHER
-
215431787 COVER, TOOLBOXCOVER, TOOLBOX
-
225410896 CAP, DRAINCAP, DRAIN
-
237661638 RIVET, INTERLOCKRIVET, INTERLOCK
-
245242953-067 GUARD, CLUTCH (BLACK)GUARD, CLUTCH (BLACK)
-
267552603 WASHERWASHER
-
277512492 SCREWSCREW
-
287542122 NUT, LOCKNUT, LOCK
-
295432280 SPACER, FOOTWELLSPACER, FOOTWELL
-
307517377 SCREWSCREW
-
311013325-067 FRAME MAIN (BLACK)FRAME MAIN (BLACK)
-
327078261 DECAL, HITCH (1225)DECAL, HITCH (1225)
-
337517376 SUBSTITUTED BY 7512279SUBSTITUTED BY 7512279
-
345432221-070 FOOTWELL, NYLON (LEFT/BLACK)FOOTWELL, NYLON (LEFT/BLACK)
-
345433219-070 FOOTWELL, NYLON (RIGHT/BLACK)FOOTWELL, NYLON (RIGHT/BLACK)
-
355811111 FOIL FOAMFOIL FOAM
-
365811106 FOIL, CAB (FRONT/REAR)FOIL, CAB (FRONT/REAR)
-
377079902 DECAL, 4 STRK, CARBURETOR/FILTER INFODECAL, 4 STRK, CARBURETOR/FILTER INFO
-
385811087 FOIL, FOAM (6X1)FOIL, FOAM (6X1)
-
397512232 BOLTBOLT
-
407517685 SCREWSCREW
-
417670057 NUT, SPEEDNUT, SPEED
-
425431796-070 GUARD, MUD (REAR/LEFT/BLACK)GUARD, MUD (REAR/LEFT/BLACK)
-
425431797-070 GUARD, MUD (REAR/RIGHT/BLACK)GUARD, MUD (REAR/RIGHT/BLACK)
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER W/ BRAKE LINE
- BRAKE - PARK BRAKE
- BRAKE - REAR W/ FOOT PEDAL
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER
- DECALS
- DRIVESHAFT - FRONT
- DRIVESHAFT - INTERMEDIATE
- DRIVESHAFT - REAR
- ELECTRICAL W/ TAILLIGHT ASSY.
- EXHAUST SYSTEM
- FENDER - FRONT W/ SIDE PANELS
- • FENDER - REAR W/ SEAT - FRAME
- FRAME MOUNTING FOR GEAR SELECTOR
- FUEL PUMP
- FUEL TANK
- GEAR SELECTOR
- GEARCASE - CASE AND SNORKLE
- GEARCASE - INTERNAL COMPONENTS
- HANDLEBAR - THROTTLE ASSY. W/ CABLE
- HANDLEBAR W/ HEADLIGHT
- MAGNETO
- MOUNTING - ENGINE
- OIL FILTER
- OIL PUMP
- OIL TANK
- RACK AND BUMPER MOUNTING - FRONT
- RACK AND BUMPER MOUNTING - REAR
- STARTER - RECOIL
- STARTING MOTOR
- STEERING POST
- SUSPENSION - FRONT A - ARM W/ TIE RODS
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR
- TOOL KIT
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR
