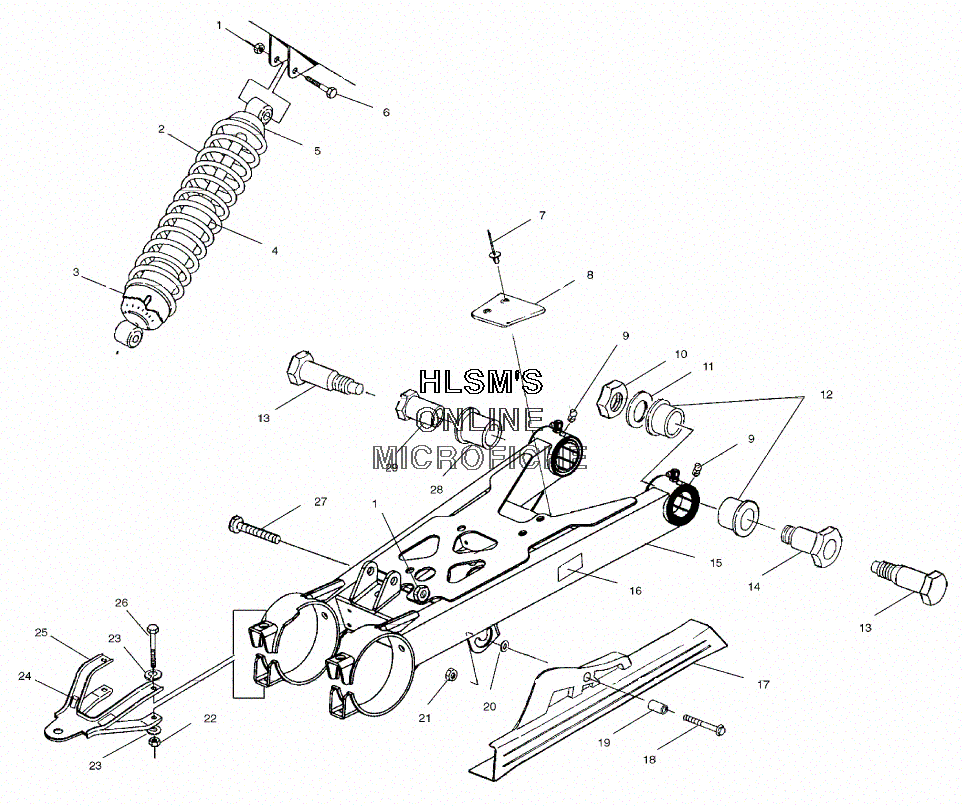

SUSPENSION - REAR SWING ARM W/ SHOCK MOUNTING для Polaris TRAIL BOSS (A01AA32AB) (RED/WHITE) - 2001 года выпуска
-
№АртикулНазвание
-
17542439 NUT, LOCKNUT, LOCK
-
27041518-067 SPRING, COMP REAR (BLACK) (BUILT BEFORE 3/01/01)SPRING, COMP REAR (BLACK) (BUILT BEFORE 3/01/01)
-
27041986-067 SPRING, COMP 130/165,13.8LG (BUILT AFTER 3/01/01)SPRING, COMP 130/165,13.8LG (BUILT AFTER 3/01/01)
-
35630551 CAM, ADJUST SPRINGCAM, ADJUST SPRING
-
47041817 SHOCK-REAR, 1 3/8 (BUILT BEFORE 3/01/01)SHOCK-REAR, 1 3/8 (BUILT BEFORE 3/01/01)
-
47041960 SHOCK, RR, CDS (BUILT AFTER 3/01/01)SHOCK, RR, CDS (BUILT AFTER 3/01/01)
-
55630885 RETAINER, SPRINGRETAINER, SPRING
-
67515415 BOLTBOLT
-
77661046 RIVET, POP 3/16(.376-. 500)RIVET, POP 3/16(.376-. 500)
-
85432727 GUIDE, CHAIN PADGUIDE, CHAIN PAD
-
97080510 FITTING, ZERKFITTING, ZERK
-
107547082 NUT, HEXAGON JAMNUT, HEXAGON JAM
-
117556035 WASHER, FLATWASHER, FLAT
-
125433412 BUSHING, SWNGARM (RIGHT)BUSHING, SWNGARM (RIGHT)
-
135131697 BOLT, SWINGARM PIVOTBOLT, SWINGARM PIVOT
-
145133167 BUSHING, SWING ARM PIVOT (RIGHT)BUSHING, SWING ARM PIVOT (RIGHT)
-
151580111 ARM ASSY, SWING (INCL. 9,12,28)ARM ASSY, SWING (INCL. 9,12,28)
-
167078572 DECAL, ''CHAIN FREEPLAY'', HYBRIDDECAL, ''CHAIN FREEPLAY'', HYBRID
-
175432854 GUARD, CHAIN REAR AXLEGUARD, CHAIN REAR AXLE
-
187515304 SCREW, FLANGEDSCREW, FLANGED
-
195332828 BUSHINGBUSHING
-
207558402 WASHER, STEELWASHER, STEEL
-
217542321 NUT, LOCKNUT, LOCK
-
227547066 NUT, NYLOKNUT, NYLOK
-
237555883 WASHERWASHER
-
247072533 DECAL, HITCHDECAL, HITCH
-
252200472 HITCH KIT, CHAIN DRIVEN (INCL. 22-26)HITCH KIT, CHAIN DRIVEN (INCL. 22-26)
-
267512576 BOLTBOLT
-
277515438 BOLTBOLT
-
285433411 BUSHING, SWING ARM (LEFT/BLACK)BUSHING, SWING ARM (LEFT/BLACK)
-
2951313166 BUSHING, SWING ARM PIVOT LHBUSHING, SWING ARM PIVOT LH
