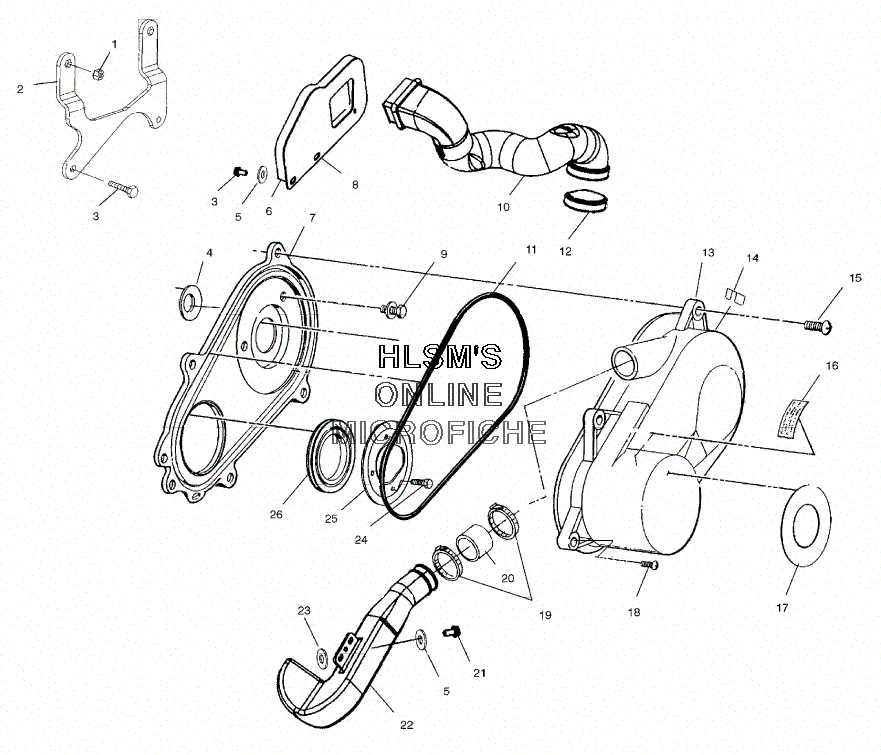

CLUTCH COVER для Polaris TRAIL BOSS (A01AA32AB) (RED/WHITE) - 2001 года выпуска
-
№АртикулНазвание
-
17547067 NUTSERT, HEXNUTSERT, HEX
-
25242208-067 BRACKET, CLUTCH LOW (BLACK)BRACKET, CLUTCH LOW (BLACK)
-
37512232 BOLTBOLT
-
45410489 SEAL, COVER CASESEAL, COVER CASE
-
57555859 WASHER, FLATWASHER, FLAT
-
65811827 SHIELD ASSY., CLUTCH AIR INLETSHIELD ASSY., CLUTCH AIR INLET
-
72201160 COVER, CLUTCH KIT INNER SVC (INCL. 15,18,26)COVER, CLUTCH KIT INNER SVC (INCL. 15,18,26)
-
85811828 SHIELD, CLUTCH AIR INLETSHIELD, CLUTCH AIR INLET
-
97517860 BOLT/RUBBER WASHER ASSY.BOLT/RUBBER WASHER ASSY.
-
105433402 DUCT, INLETDUCT, INLET
-
115521301 SEAL, CLUTCHCOVERSEAL, CLUTCHCOVER
-
127080909 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
135433542 COVER, CLUTCH FRONT ST-801HSCOVER, CLUTCH FRONT ST-801HS
-
147670051 CLIP, CLUTCH COVERCLIP, CLUTCH COVER
-
157512093 SCREWSCREW
-
167078689 DECALDECAL
-
177074782 DECAL, AUTO.TRANSMISSIONDECAL, AUTO.TRANSMISSION
-
187512094 SCREWSCREW
-
197080492 STRAP, WEATHER RESIST (BLACK)STRAP, WEATHER RESIST (BLACK)
-
205410421 BOOT, CLUTCH INTAKEBOOT, CLUTCH INTAKE
-
217517916 SCREWSCREW
-
225433582 DUCT, AIR OUTLET CLUTCHDUCT, AIR OUTLET CLUTCH
-
237556091 SPACERSPACER
-
243084205 SCREW AND WASHERSCREW AND WASHER
-
255240409-067 BRACKET CLUTCH SEALBRACKET CLUTCH SEAL
-
265410575 SEAL, COVER CASESEAL, COVER CASE
