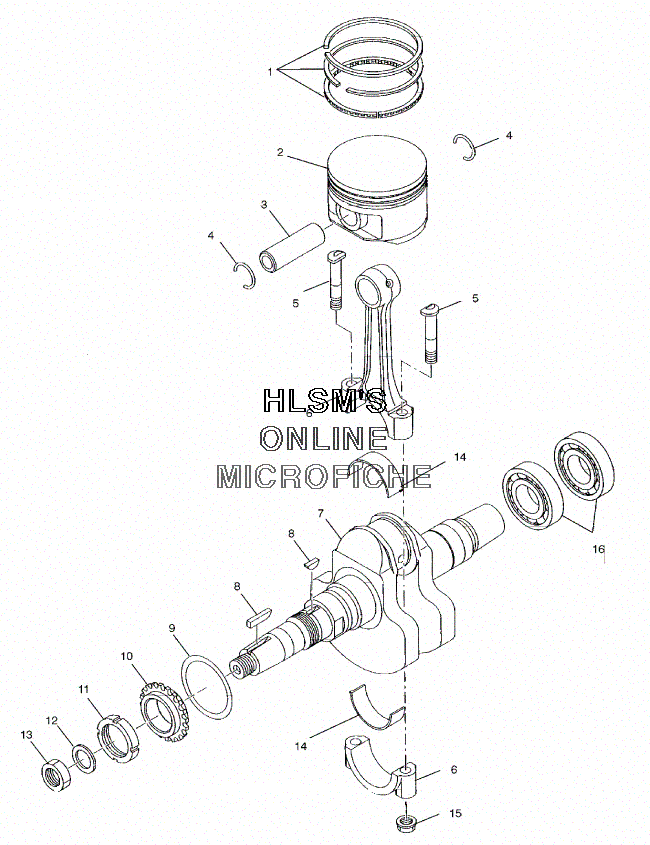

CRANKSHAFT W/ PISTON для Polaris TRAIL BOSS 325 SE (A01AA32AC) (MEDIUM (YELLOW) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    3085774 PISTONRING SET, STANDARD
    PISTONRING SET, STANDARD
  • 1
    3085775 PISTONRING SET (.25MM O/S)
    PISTONRING SET (.25MM O/S)
  • 1
    3085776 PISTONRING SET (.50MM O/S)
    PISTONRING SET (.50MM O/S)
  • 2
    3086800 PISTON (STANDARD) (INCL. 3,4)
    PISTON (STANDARD) (INCL. 3,4)
  • 2
    3086801 PISTON (.25 O/S) (INCL. 3,4)
    PISTON (.25 O/S) (INCL. 3,4)
  • 2
    3086802 PISTON (.50 O/S) (INCL. 3,4)
    PISTON (.50 O/S) (INCL. 3,4)
  • 3
    3086846 PIN, PISTON
    PIN, PISTON
  • 4
    3084167 CLIP
    CLIP
  • 5
    3086425 BOLT
    BOLT
  • 6
    3086424 CONNECTING ROD ARRY (INCL. 5,15)
    CONNECTING ROD ARRY (INCL. 5,15)
  • 7
    3087051 CRANKSHAFT, COMPLETE (INCL. 16)
    CRANKSHAFT, COMPLETE (INCL. 16)
  • 8
    3240168 KEY, WOODRUFF
    KEY, WOODRUFF
  • 9
    3086434 SPACER .4 (OPT)
    SPACER .4 (OPT)
  • 9
    3086435 SPACER .6 (OPT)
    SPACER .6 (OPT)
  • 9
    3086436 SPACER .8 (OPT)
    SPACER .8 (OPT)
  • 9
    3086437 SPACER 1.0 (OPT)
    SPACER 1.0 (OPT)
  • 10
    3086492 SPROCKET 1
    SPROCKET 1
  • 11
    3085528 NUT, SLIT
    NUT, SLIT
  • 12
    3083904 WASHER
    WASHER
  • 13
    3083905 LOCKNUT
    LOCKNUT
  • 14
    3086427 BEARING (STANDARD)
    BEARING (STANDARD)
  • 14
    3086798 BEARING (.05MM) (0.05 U/S) (BUILT AFTER 3/1/99)
    BEARING (.05MM) (0.05 U/S) (BUILT AFTER 3/1/99)
  • 14
    3086799 BEARING (.25MM) (0.25 U/S) (BUILT AFTER 3/1/99)
    BEARING (.25MM) (0.25 U/S) (BUILT AFTER 3/1/99)
  • 15
    3086426 NUT
    NUT
  • 16
    3085815 BEARING, BALL
    BEARING, BALL
