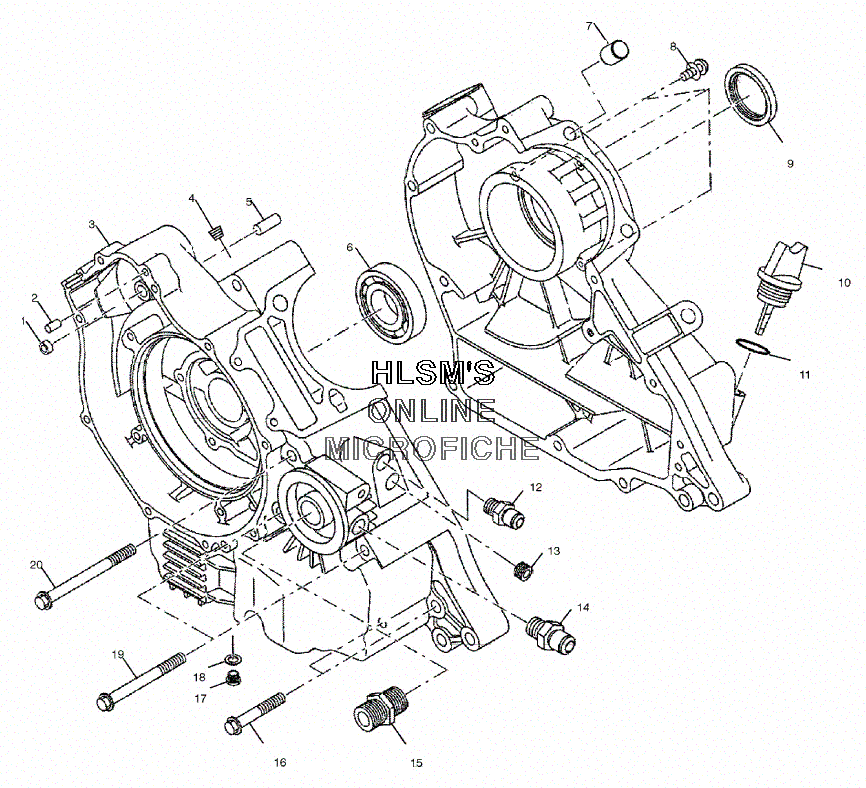

CRANKCASE для Polaris TRAIL BOSS 325 SE (A01AA32AC) (MEDIUM (YELLOW) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    3083669 BUSHING, STARTER
    BUSHING, STARTER
  • 2
    3080103 PIN, DOWEL
    PIN, DOWEL
  • 3
    3087127 CRANKCASE ASSY. (INCL. 1-5,9,13,16,19,20)
    CRANKCASE ASSY. (INCL. 1-5,9,13,16,19,20)
  • 5
    3084840 PIN, DOWEL
    PIN, DOWEL
  • 6
    3086395 BEARING, BALL
    BEARING, BALL
  • 7
    3084838 PIN, STRAIGHT
    PIN, STRAIGHT
  • 8
    3084205 SCREW AND WASHER
    SCREW AND WASHER
  • 9
    3084839 SEAL, OIL
    SEAL, OIL
  • 10
    3087128 GAUGE-OIL
    GAUGE-OIL
  • 11
    3087065 O-RING
    O-RING
  • 12
    3087066 UNION
    UNION
  • 13
    3086397 PLUG, FLANGE
    PLUG, FLANGE
  • 14
    3087067 UNION (BUILT BEFORE 1/24/01)
    UNION (BUILT BEFORE 1/24/01)
  • 14
    3087066 UNION (BUILT AFTER 1/24/01)
    UNION (BUILT AFTER 1/24/01)
  • 15
    3084849 UNION, OIL PUMP
    UNION, OIL PUMP
  • 16
    3086398 BOLT, FLANGE
    BOLT, FLANGE
  • 17
    3083453 PLUG
    PLUG
  • 18
    3082956 GASKET
    GASKET
  • 19
    3084841 BOLT, FLANGE
    BOLT, FLANGE
  • 20
    3086399 BOLT, FLANGE
    BOLT, FLANGE
