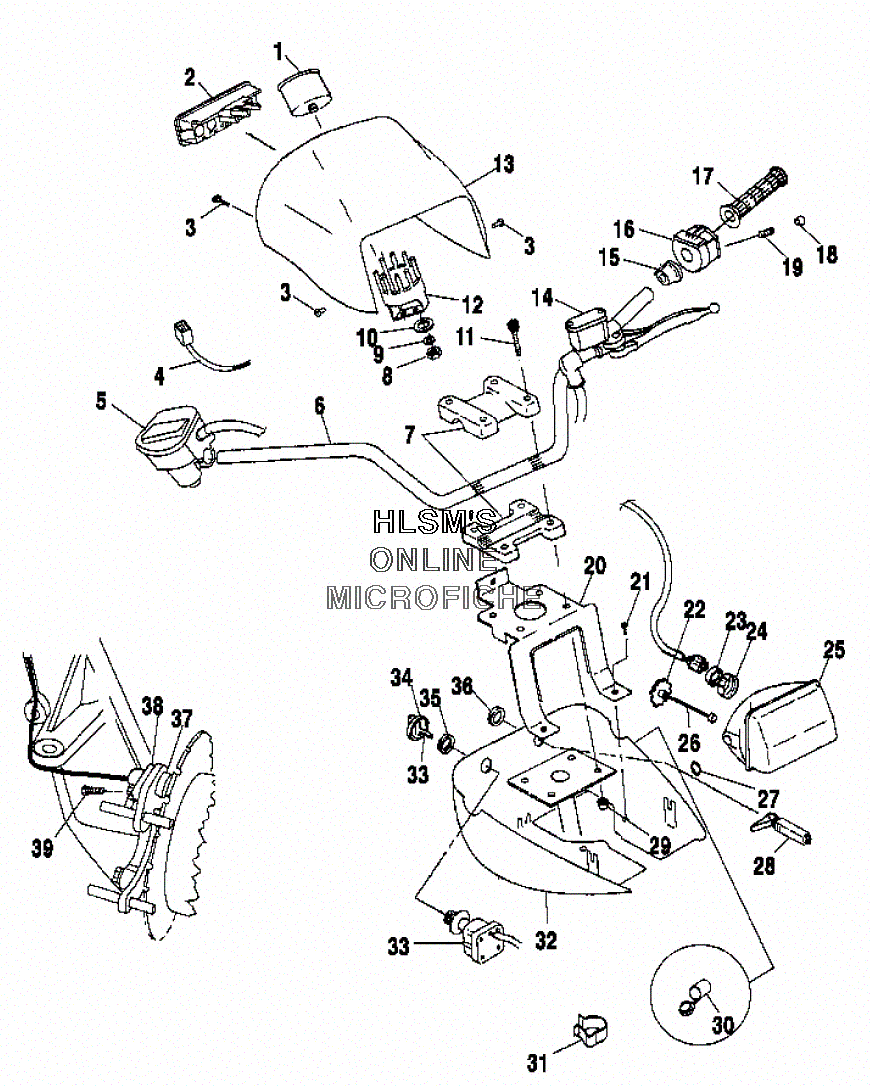

HANDLEBAR W/ HEADLIGHT для Polaris SPORTSMAN 6X6 (A01CL50AA) - 2001 года выпуска
-
№АртикулНазвание
-
13280363 SPEEDOMETER (3.38''/6-PULSE)SPEEDOMETER (3.38''/6-PULSE)
-
24010459 PANEL, INDICATOR SVC STANDARD PVTPANEL, INDICATOR SVC STANDARD PVT
-
24010416 BULB, INDICATOR HOBBSBULB, INDICATOR HOBBS
-
37511881 SCREWSCREW
-
42460668 HARNESS, CENTER PANELHARNESS, CENTER PANEL
-
65244581-067 TUBE, HANDLEBAR GEN4 POD (6X6/BLACK)TUBE, HANDLEBAR GEN4 POD (6X6/BLACK)
-
72200774 HANDLEBAR BLOCK KIT (INCL. BLOCKS AND 7,11,29)HANDLEBAR BLOCK KIT (INCL. BLOCKS AND 7,11,29)
-
75630616-067 BLOCK, HANDLEBAR RETAINER (BLACK)BLOCK, HANDLEBAR RETAINER (BLACK)
-
87541933 NUT, BRASSNUT, BRASS
-
97555868 WASHER, LOCK (SS)WASHER, LOCK (SS)
-
107558212 WASHERWASHER
-
117515189 SCREWSCREW
-
123280291 CLAMP, BACK ELECTRONIC SPEEDOMETER (3.38'')CLAMP, BACK ELECTRONIC SPEEDOMETER (3.38'')
-
135433763-195 POD, HEADLIGHT, UPPER (E B GREEN)POD, HEADLIGHT, UPPER (E B GREEN)
-
155433903 SPACER, SWITCH (LEFT)SPACER, SWITCH (LEFT)
-
164010262 SWITCH, HANDLEBAR H/L/O REV/ORSWITCH, HANDLEBAR H/L/O REV/OR
-
175433834-070 GRIP, HANDLEBAR (7/8 ID/BLACK)GRIP, HANDLEBAR (7/8 ID/BLACK)
-
185432952 PLUG, HOLEPLUG, HOLE
-
197517625 SCREW, SETSCREW, SET
-
205244969-067 BRACKET, POD MOUNTING (BLACK)BRACKET, POD MOUNTING (BLACK)
-
217517317 SCREWSCREW
-
224032079 KNOB, ADJUSTINGKNOB, ADJUSTING
-
235411120 BOOT, HEADLIGHTBOOT, HEADLIGHT
-
244032077 COLLAR, LOCKCOLLAR, LOCK
-
254032075 LENS AND REFLECTOR ASSY.LENS AND REFLECTOR ASSY.
-
252870448 BULB, QUARTZ. HEADLIGHT INDYBULB, QUARTZ. HEADLIGHT INDY
-
264032078 ROD, ADJUSTINGROD, ADJUSTING
-
275410163 O-RINGO-RING
-
287081008 CABLE, CHOKE FRICTION (40'')CABLE, CHOKE FRICTION (40'')
-
297542122 NUT, LOCKNUT, LOCK
-
304010283 RECEPTACLE, POD MOUNT 12 VOLTRECEPTACLE, POD MOUNT 12 VOLT
-
317080631 CLIP, CABLE RETAIN,CLIP, CABLE RETAIN,
-
325433762-070 POD, HEADLIGHT LOWER SNAP (BLACK)POD, HEADLIGHT LOWER SNAP (BLACK)
-
334110264 SWITCH, IGNITION (INCL. KEY)SWITCH, IGNITION (INCL. KEY)
-
334010278 KEY BLANK (6700AND6800 SERIES)(SEE NOTE)KEY BLANK (6700AND6800 SERIES)(SEE NOTE)
-
334010321 KEY BLANK (2700AND2800 SERIES) (SEE NOTE)KEY BLANK (2700AND2800 SERIES) (SEE NOTE)
-
345433534 KEY COVER, KEYSWITCHKEY COVER, KEYSWITCH
-
355433733 NUT, IGN SWITCH HOBBSNUT, IGN SWITCH HOBBS
-
367080922 NUT, CHOKE M24X1.5 THREADED M29 HEXAGONNUT, CHOKE M24X1.5 THREADED M29 HEXAGON
-
375132382 CAP, HALL SENSORCAP, HALL SENSOR
-
384010298 SENSOR, HALL EFFECTSENSOR, HALL EFFECT
-
397517658 SCREWSCREW
