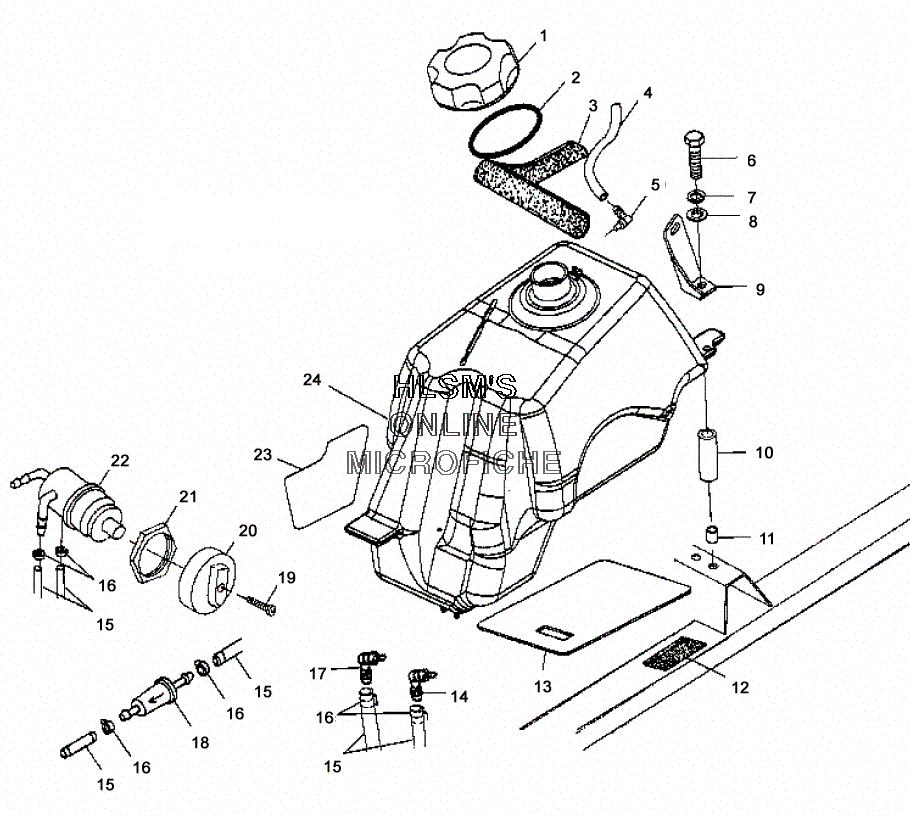

FUEL TANK для Polaris SPORTSMAN 6X6 (A01CL50AA) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    5433687 CAP, GAS TANK
    CAP, GAS TANK
  • 2
    5812123 GASKET, GAS CAP
    GASKET, GAS CAP
  • 3
    5811310 SEAL, FOAM (21 IN)
    SEAL, FOAM (21 IN)
  • 4
    8360009-600 FUEL LINE (1/8 ID/600 CM) (OPT)
    FUEL LINE (1/8 ID/600 CM) (OPT)
  • 5
    5431053 VENT, TANK
    VENT, TANK
  • 6
    7517451 BOLT
    BOLT
  • 7
    7552801 LOCK WASHER
    LOCK WASHER
  • 8
    7558301 WASHER
    WASHER
  • 9
    5222154-067 BRACKET, REAR FUELCOVER (LEFT/BLACK).
    BRACKET, REAR FUELCOVER (LEFT/BLACK).
  • 9
    5222155-067 BRACKET, REAR FUELCOVER (RIGHT/BLACK).
    BRACKET, REAR FUELCOVER (RIGHT/BLACK).
  • 10
    5332457 SPACER
    SPACER
  • 11
    7547069 NUTSERT, HEX
    NUTSERT, HEX
  • 12
    5810317 PAD, FUELTANK BRACKET
    PAD, FUELTANK BRACKET
  • 13
    5812005 FOIL, FUELTAN
    FOIL, FUELTAN
  • 14
    7052147 ELBOW, MAIN
    ELBOW, MAIN
  • 15
    8450040-600 FUEL LINE, 1/4 ID (600 CM.) (OPT)
    FUEL LINE, 1/4 ID (600 CM.) (OPT)
  • 16
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 17
    7052148 FITTING, FUEL OUT 90DEG RES Z
    FITTING, FUEL OUT 90DEG RES Z
  • 18
    2530009 FILTER, SMALL IN-LINE
    FILTER, SMALL IN-LINE
  • 19
    7517505 SCREW
    SCREW
  • 20
    5432559 KNOB, FUEL VALVE
    KNOB, FUEL VALVE
  • 21
    5432733 NUT, FUEL VALVE
    NUT, FUEL VALVE
  • 22
    7052161 VALVE, 3-WAY
    VALVE, 3-WAY
  • 23
    5812004 FOIL, FUELTANK
    FOIL, FUELTANK
  • 24
    2520166 TANK, FUEL ASSY. (INCL. 14,17)
    TANK, FUEL ASSY. (INCL. 14,17)
