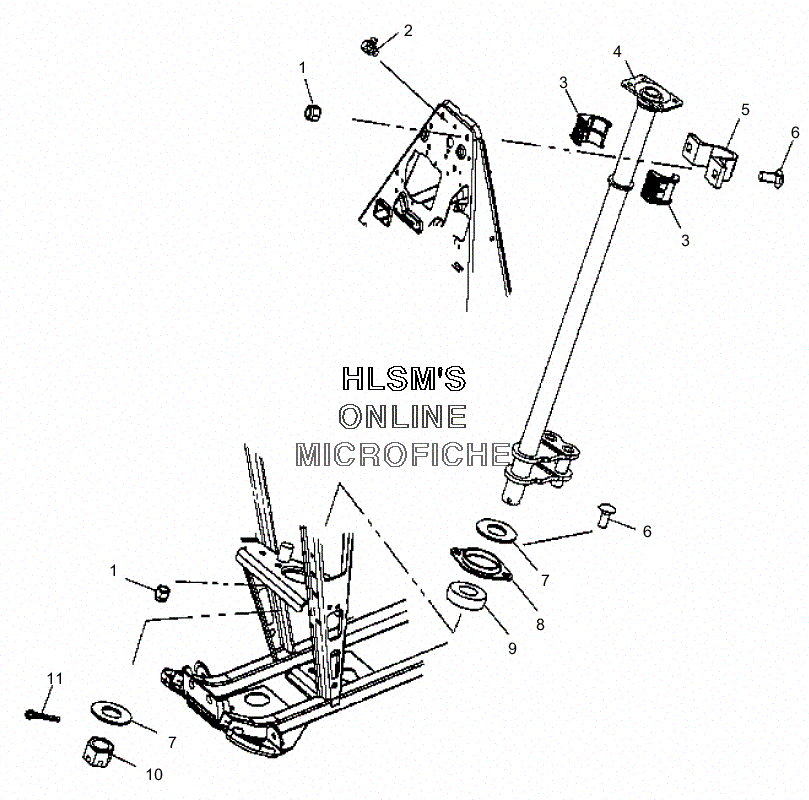

STEERING POST для Polaris SCRAMBLER 400 2X4 (A01BA38CA) - 2001 года выпуска
-
№АртикулНазвание
-
17542324 NUTNUT
-
27080424 FITTING, LUBE.FITTING, LUBE.
-
35433866 BUSHING, UPPER STEERING 1 INBUSHING, UPPER STEERING 1 IN
-
41820982-067 STEERING POST, 2X4 (BLACK)STEERING POST, 2X4 (BLACK)
-
55132679 BRACKET, STEERING POSTBRACKET, STEERING POST
-
67512377 BOLTBOLT
-
77556162 BUSHING, 1X1 1/2X .145BUSHING, 1X1 1/2X .145
-
85222393 FLANGETTE (2-BOLT)FLANGETTE (2-BOLT)
-
93514352 BEARING, 1XM52XM15 SPHBEARING, 1XM52XM15 SPH
-
107547158 NUT, SLOTTED HEX 1-14-HXNUT, SLOTTED HEX 1-14-HX
-
117661633 PIN, COTTERPIN, COTTER
