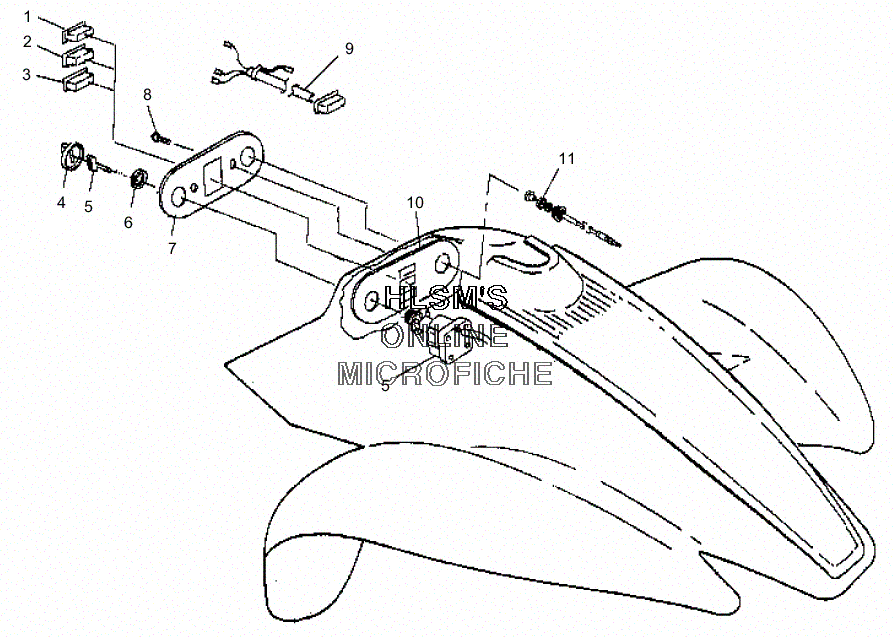

CONTROL PANEL для Polaris SCRAMBLER 400 2X4 (A01BA38CA) - 2001 года выпуска
‹-+›
-
№АртикулНазвание
-
14010140 INDICATOR ''LOW OIL'' (SYMBOL)INDICATOR ''LOW OIL'' (SYMBOL)
-
24040054 INDIC ''NEUT./REV.''INDIC ''NEUT./REV.''
-
34040053 INDIC ''HOT TEMPERATURE''INDIC ''HOT TEMPERATURE''
-
45433534 KEY COVER, KEYSWITCHKEY COVER, KEYSWITCH
-
54110264 SWITCH, IGNITION (INCL. KEY)SWITCH, IGNITION (INCL. KEY)
-
54010278 KEY BLANK (6700 AND 6800 SERIES) SEE NOTE:KEY BLANK (6700 AND 6800 SERIES) SEE NOTE:
-
54010321 KEY BLANK (2700 AND 2800 SERIES) SEE NOTE:KEY BLANK (2700 AND 2800 SERIES) SEE NOTE:
-
65433733 NUT, IGNITION SWITCH HOBBSNUT, IGNITION SWITCH HOBBS
-
75431976 PANEL, CONTROL OUTERPANEL, CONTROL OUTER
-
87512026 SCREWSCREW
-
92460664 HARNESS, CONTROL PANEL (SCR.)HARNESS, CONTROL PANEL (SCR.)
-
105431975 PANEL, CONTROL INNERPANEL, CONTROL INNER
-
117080968 CABLE, THROTTLE 1/4 TURN 2 STKCABLE, THROTTLE 1/4 TURN 2 STK
