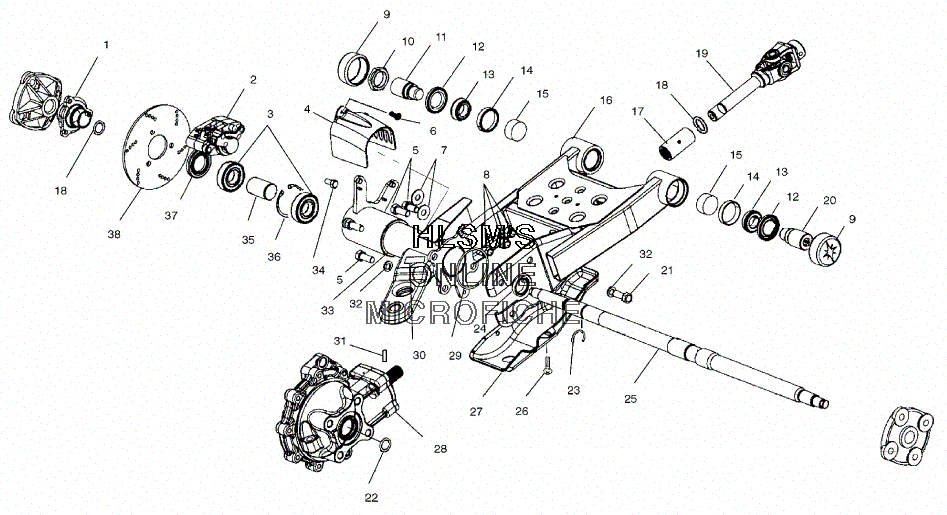

SUSPENSION - REAR SWING ARM W/ AXLE для Polaris MAGNUM 500 (A01CD50AA) (GUN METAL) - 2001 года выпуска`
-
№АртикулНазвание
-
15132152 HUB, BRAKE DISCHUB, BRAKE DISC
-
33513523 BEARING, BALL DBL. SEALBEARING, BALL DBL. SEAL
-
45411653 SHIELD, BRAKE LINE REARSHIELD, BRAKE LINE REAR
-
57517604 BOLTBOLT
-
67512084 SCREWSCREW
-
77555721 WASHERWASHER
-
87542703 NUT, FLEXNUT, FLEX
-
95411532 CAP, SWINGARM PIVOTCAP, SWINGARM PIVOT
-
105131863 NUT, JAM SWING ARM PIVOTNUT, JAM SWING ARM PIVOT
-
115131864 PIVOT, SWINGARM THREADEDPIVOT, SWINGARM THREADED
-
123610072 SEAL, SWINGARM PIVOTSEAL, SWINGARM PIVOT
-
133554506 BRG, TAPER ROLL CONEBRG, TAPER ROLL CONE
-
143554507 BRG, TAPER ROLL CUPBRG, TAPER ROLL CUP
-
155411602 SEAL, SWING ARM PIVOTSEAL, SWING ARM PIVOT
-
161541577 SWING ARM ASSY. (INCL. 14,15)SWING ARM ASSY. (INCL. 14,15)
-
175132201 COUPLING, PROP SHAFT GREASEDCOUPLING, PROP SHAFT GREASED
-
177080433 ZERK, FITTING THREADEDZERK, FITTING THREADED
-
185411092 O-RINGO-RING
-
191380137 PROPSHAFT ASSY, REARPROPSHAFT ASSY, REAR
-
205132683 PIVOT, SWINGARM (RIGHT)PIVOT, SWINGARM (RIGHT)
-
217517585 BOLTBOLT
-
225411531 O-RINGO-RING
-
237710482 RING, RETAININGRING, RETAINING
-
245131930 COLLAR, REAR AXLE LOCKCOLLAR, REAR AXLE LOCK
-
255131862 AXLE, REARAXLE, REAR
-
267517612 SCREWSCREW
-
271012881 SKID PLATE, REARSKID PLATE, REAR
-
275242851-067 PLATE SKID, REAR HOUSING (BLACK)PLATE SKID, REAR HOUSING (BLACK)
-
275811716 PAD, RUBBERPAD, RUBBER
-
295411707 O-RINGO-RING
-
307078261 DECAL, HITCH (1225)DECAL, HITCH (1225)
-
317661913 PIN, SPRINGPIN, SPRING
-
327553201 LOCK WASHERLOCK WASHER
-
331013193-067 AXLE TUBE, WELD (LEFT/BLACK)AXLE TUBE, WELD (LEFT/BLACK)
-
347515481 BOLTBOLT
-
355132075 SPACER, BEARINGSPACER, BEARING
-
367710471 RING, RETAINER INTRING, RETAINER INT
-
373610071 SEAL, REAR AXLESEAL, REAR AXLE
-
385243678 DISC, BRK 7.00 OD .188 THKDISC, BRK 7.00 OD .188 THK
