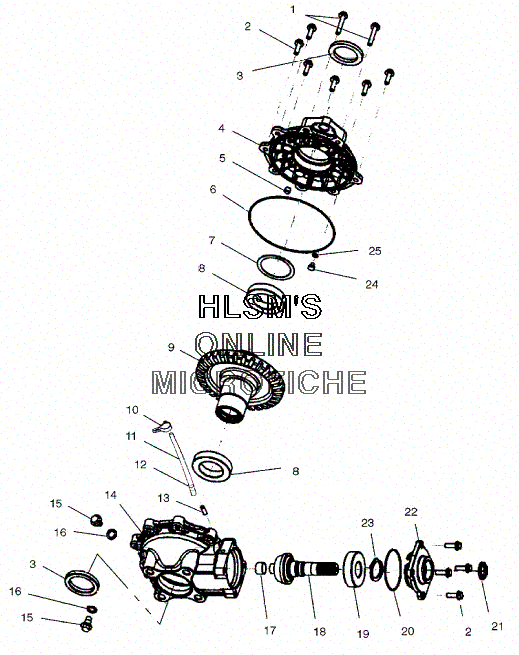

HOUSING - REAR W/ AXLE для Polaris MAGNUM 500 (A01CD50AA) (GUN METAL) - 2001 года выпуска`
-
№АртикулНазвание
-
1341342 GEARCASE ASSY, REAR (INCL. 1-9, 13-25)GEARCASE ASSY, REAR (INCL. 1-9, 13-25)
-
13233585 SCREWSCREW
-
23233252 SCREWSCREW
-
33233256 SEALSEAL
-
43233753 COVER, OUTPUT REAR HOUSINGCOVER, OUTPUT REAR HOUSING
-
53233529 PIPE, KNOCKPIPE, KNOCK
-
63233587 O-RING 166O-RING 166
-
73233581 SHIM 3.1 X 2.5 (OPT)SHIM 3.1 X 2.5 (OPT)
-
83233268 BEARING, BALLBEARING, BALL
-
93233740 GEAR (31 TEETH)GEAR (31 TEETH)
-
107670102 CLIP, SILENCERCLIP, SILENCER
-
118450003-1525 FUEL LINE (1/4 ID/1525 CM.) (OPT)FUEL LINE (1/4 ID/1525 CM.) (OPT)
-
127080307 CLAMPCLAMP
-
133233524 TUBE, VENTTUBE, VENT
-
143233739 GEARCASE, REAR HOUSINGGEARCASE, REAR HOUSING
-
153233711 PLUG, OIL FILLPLUG, OIL FILL
-
163233324 WASHERWASHER
-
173233577 BUSHINGBUSHING
-
183233768 SHAFT PINION (10 TEETH)SHAFT PINION (10 TEETH)
-
193233714 BEARING, BALLBEARING, BALL
-
203233588 O-RING 151O-RING 151
-
213233319 SEALSEAL
-
223233573 GEARCASE, COVERGEARCASE, COVER
-
233233699 RING, RETAININGRING, RETAINING
-
243233582 THRUST BUTTONTHRUST BUTTON
-
253233583 SHIM (450 X .265) (OPT)SHIM (450 X .265) (OPT)
