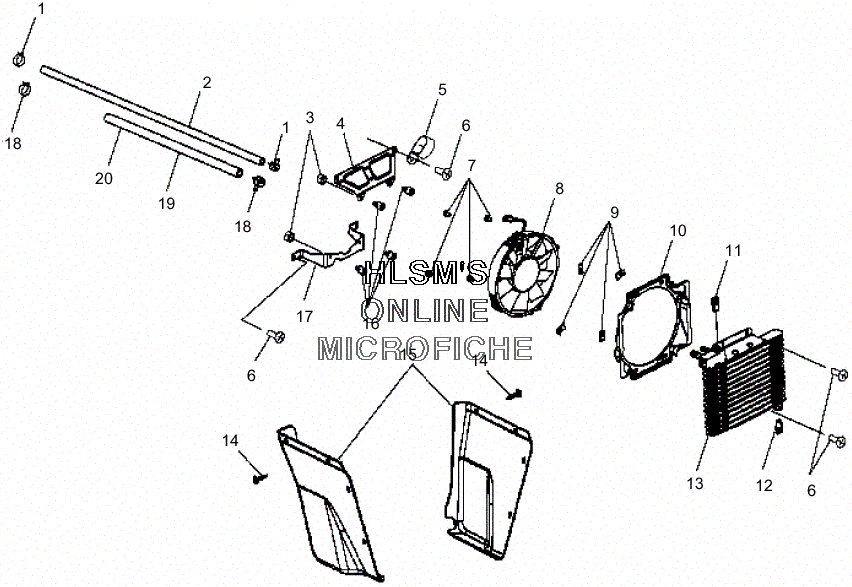

OIL COOLING (IF BUILT AFTER 1/1/00) для Polaris TRAIL BOSS (A00AA32AB) (WHITE) - 2000 года выпуска`
-
№АртикулНазвание
-
17080862 CLAMP, HOSE MUBEACLAMP, HOSE MUBEA
-
25411813 OIL HOSE, INTEGRATED VALVE KITOIL HOSE, INTEGRATED VALVE KIT
-
37542122 NUT, LOCKNUT, LOCK
-
45243783-067 BRACKET, OIL COOLER (TOP/BLACK)BRACKET, OIL COOLER (TOP/BLACK)
-
57080869 CLAMP, CUSHIONED (1.25'' I.D)CLAMP, CUSHIONED (1.25'' I.D)
-
67515158 SCREWSCREW
-
77517659 SCREWSCREW
-
82410157 FAN, MOTORFAN, MOTOR
-
97670111 CLIP-U, ZYCLIP-U, ZY
-
105433353 SHROUD, FANSHROUD, FAN
-
114010274 THERMISTERTHERMISTER
-
127052244 VALVE, PLASTIC DRAINVALVE, PLASTIC DRAIN
-
131240064 COOLER, OIL TO AIRCOOLER, OIL TO AIR
-
147621509 RIVET, PLASTI LOC.RIVET, PLASTI LOC.
-
155433789 SHROUD, OIL COOLER (LEFT)SHROUD, OIL COOLER (LEFT)
-
155433790 SHROUD, OIL COOLER (RIGHT)SHROUD, OIL COOLER (RIGHT)
-
163021186 MOUNT, RUBBER CARBURETOR (BUILT BEFORE 2/18/00)MOUNT, RUBBER CARBURETOR (BUILT BEFORE 2/18/00)
-
165411548 MOUNT, RUBBER (BUILT AFTER 2/18/00)MOUNT, RUBBER (BUILT AFTER 2/18/00)
-
175244069-067 BRACKET, OIL COOLER (LOWER/BLACK)BRACKET, OIL COOLER (LOWER/BLACK)
-
187080866 CLAMP, HOSE MUBEA (1/2'')CLAMP, HOSE MUBEA (1/2'')
-
195411768 OIL HOSE, INTEGRATED VALVE KITOIL HOSE, INTEGRATED VALVE KIT
-
208450086-07 TUBING, CONVOLUTED (5/8 ID, 7CM) (OPT)TUBING, CONVOLUTED (5/8 ID, 7CM) (OPT)
