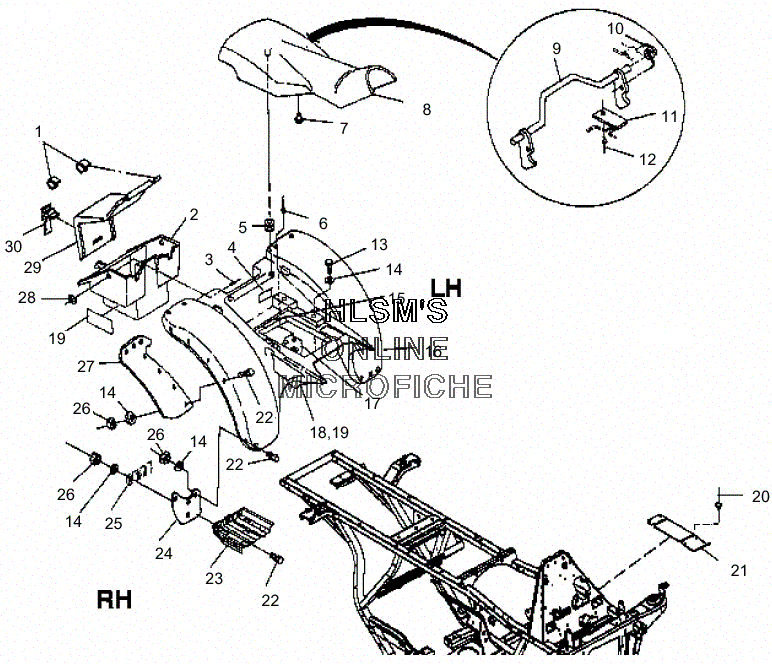

FENDER - REAR W/ SEAT для Polaris TRAIL BOSS (A00AA32AB) (WHITE) - 2000 года выпуска`
-
№АртикулНазвание
-
17670050 CLIP, LID HINGECLIP, LID HINGE
-
25430882 BOX, TOOL COMPBOX, TOOL COMP
-
37621462 RIVETRIVET
-
47078396 DECAL, FILTER ELEMENT ES32DECAL, FILTER ELEMENT ES32
-
55411042 GROMMETGROMMET
-
67621472 RIVETRIVET
-
75410414 BUMPER, RUBBERBUMPER, RUBBER
-
82682492-136 SEAT (P. RED) (INCL. 7, 11)SEAT (P. RED) (INCL. 7, 11)
-
82681723-136 COVER, SEAT (P.RED)COVER, SEAT (P.RED)
-
91011558 LATCH, SEATLATCH, SEAT
-
107041158 SPRING, LATCHSPRING, LATCH
-
115211033 BRACKET, LEVER RETAINERBRACKET, LEVER RETAINER
-
127621403 BLIND, RIVETBLIND, RIVET
-
137512242 SCREWSCREW
-
147555859 WASHER, FLATWASHER, FLAT
-
157073761 DECAL, CARBURETOR INFODECAL, CARBURETOR INFO
-
165433424-133 CAB, REAR (GEN 2/BR. WHITE)CAB, REAR (GEN 2/BR. WHITE)
-
175220880 BRACKET, HOLDDOWN (REAR)BRACKET, HOLDDOWN (REAR)
-
185810957 FOIL, CAB (REAR)FOIL, CAB (REAR)
-
185810991 FOIL, FENDER SMALL (REAR)FOIL, FENDER SMALL (REAR)
-
195810310 TAPE, FOILTAPE, FOIL
-
207661638 RIVET, INTERLOCKRIVET, INTERLOCK
-
215241403-067 GUARD, CLUTCH (BLACK)GUARD, CLUTCH (BLACK)
-
227512282 BOLT (BLACK)BOLT (BLACK)
-
245850153 MUDFLAP (LEFT/REAR/LOWER)MUDFLAP (LEFT/REAR/LOWER)
-
245850154 MUDFLAP (RIGHT/REAR/LOWER)MUDFLAP (RIGHT/REAR/LOWER)
-
255211131-067 BRACKET, MUD FLAP (LEFT)BRACKET, MUD FLAP (LEFT)
-
267542122 NUT, LOCKNUT, LOCK
-
275850060 FLAP, MUD (LEFT/REAR)FLAP, MUD (LEFT/REAR)
-
275850061 FLAP, MUD (RIGHT/REAR)FLAP, MUD (RIGHT/REAR)
-
287558212 WASHER, GA - FL-YWASHER, GA - FL-Y
-
295430769-133 LID, TOOLBOX (WHITE)LID, TOOLBOX (WHITE)
-
305410425 STRAP, TOOL COMPARTMENTSTRAP, TOOL COMPARTMENT
