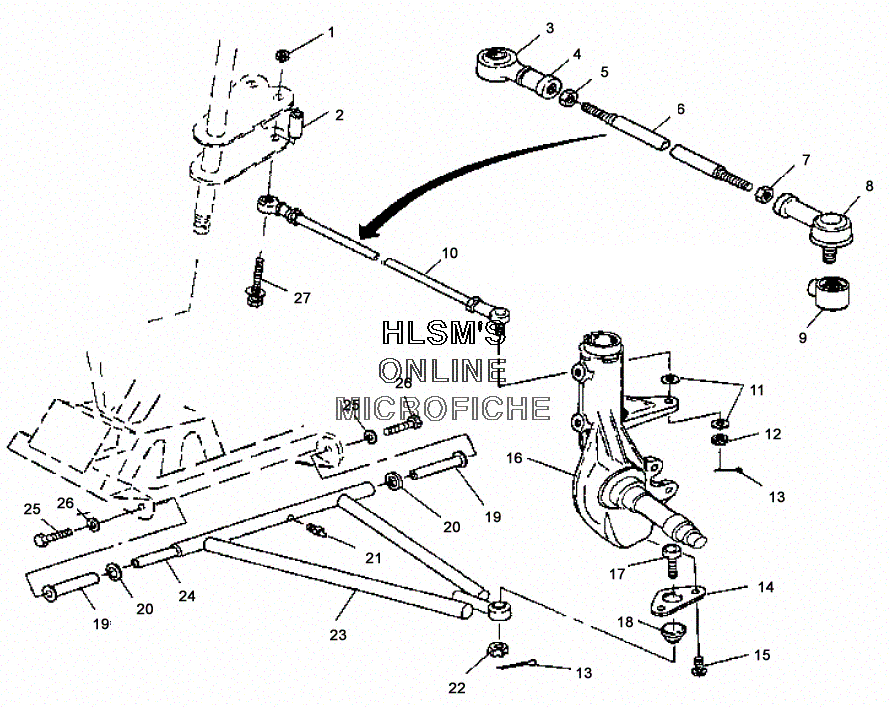

SUSPENSION - FRONT A - ARM W/ TIE RODS для Polaris TRAIL BLAZER (A00BA25CA) - 2000 года выпуска`
-
№АртикулНазвание
-
17542403 NUT, LOCKNUT, LOCK
-
25333367 BUSHINGBUSHING
-
35411291 SEAL, BOOT ROD END (1/2 IN)SEAL, BOOT ROD END (1/2 IN)
-
47061034 ROD END (RIGHT)ROD END (RIGHT)
-
57542711 NUT, JAMNUT, JAM
-
65020927 ROD, TIEROD, TIE
-
77547028 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
87061033 ROD END KIT (10MM/OUTER) (BUILT BEFORE 8/16/99)ROD END KIT (10MM/OUTER) (BUILT BEFORE 8/16/99)
-
87061054 ROD, END (10MM) (1/2-20) (LEFT) (42 DEGREE) (IF BUILT AFTER 8/16/99)ROD, END (10MM) (1/2-20) (LEFT) (42 DEGREE) (IF BUILT AFTER 8/16/99)
-
95411920 BOOT, SEAL ROD END (10MM)BOOT, SEAL ROD END (10MM)
-
101820566 TIE ROD KIT(BUILT BEFORE 8/16/99)TIE ROD KIT(BUILT BEFORE 8/16/99)
-
101820806 TIE ROD ASSY. (1/2-20X14.0) (BUILT AFTER 8/16/99)TIE ROD ASSY. (1/2-20X14.0) (BUILT AFTER 8/16/99)
-
117555806 WASHER (BUILT BEFORE 8/16/99)WASHER (BUILT BEFORE 8/16/99)
-
117556099 WASHER (BUILT AFTER 8/16/99)WASHER (BUILT AFTER 8/16/99)
-
127546904 NUT, CASTLENUT, CASTLE
-
137661203 PIN, COTTERPIN, COTTER
-
145240717 BRACKET, BALLJOINTBRACKET, BALLJOINT
-
157512284 BOLT, SOCKETBOLT, SOCKET
-
165410548 BOOT, RUBBERBOOT, RUBBER
-
177080673 BALL, JOINTBALL, JOINT
-
195431596 BUSHING, A-ARM (LONG/BLACK)BUSHING, A-ARM (LONG/BLACK)
-
205020677 BUSHING, A-ARM SPACERBUSHING, A-ARM SPACER
-
217080433 ZERK, FITTING THREADEDZERK, FITTING THREADED
-
227542438 NUT, CASTLENUT, CASTLE
-
232200560 A-FRAME KIT (LEFT)A-FRAME KIT (LEFT)
-
232200561 A-FRAME KIT (RIGHT)A-FRAME KIT (RIGHT)
-
245020681 SHAFT, A-ARMSHAFT, A-ARM
-
257512492 SCREWSCREW
-
267552603 WASHERWASHER
-
277517527 BOLTBOLT
