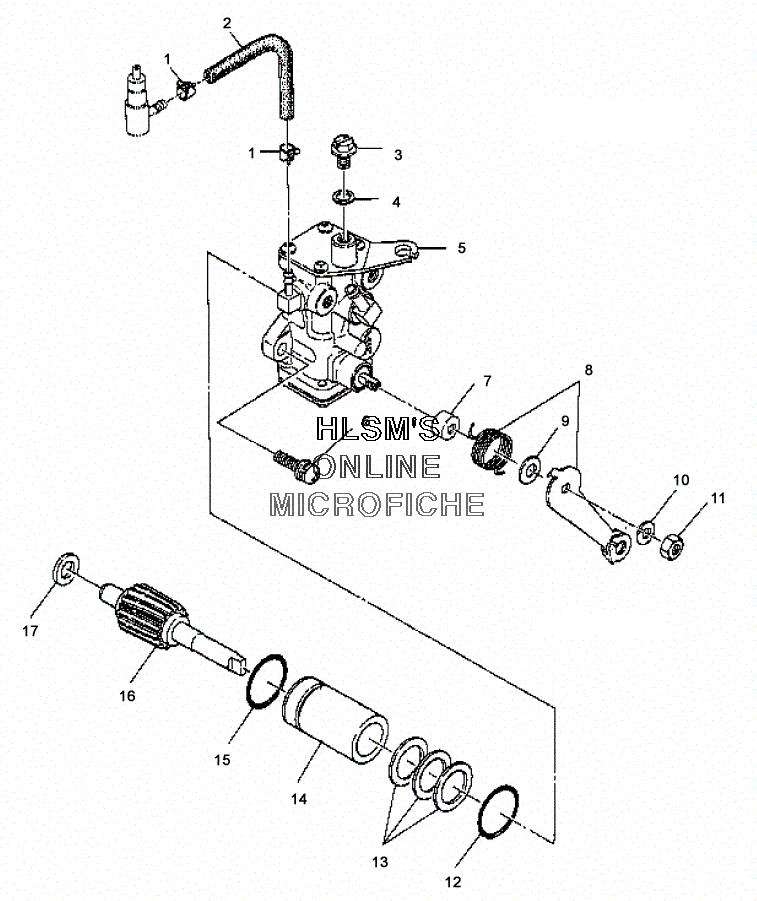

OIL PUMP для Polaris TRAIL BLAZER (A00BA25CA) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    3083141 CLAMP, HOSE
    CLAMP, HOSE
  • 2
    3084467 PIPE 1, VINYL
    PIPE 1, VINYL
  • 3
    3083125 SCREW, AIR VENT
    SCREW, AIR VENT
  • 4
    3083126 PACKING
    PACKING
  • 5
    3085624 PUMP ASSY., OIL (INCL. 3, 4, 7-12)
    PUMP ASSY., OIL (INCL. 3, 4, 7-12)
  • 6
    3083783 SCREW AND WASHER
    SCREW AND WASHER
  • 7
    3083758 CAP
    CAP
  • 8
    3085625 SPRING AND LEVER
    SPRING AND LEVER
  • 8
    3085626 LEVER, CONTROL
    LEVER, CONTROL
  • 9
    3083757 COLLAR, CAMSHAFT
    COLLAR, CAMSHAFT
  • 10
    3083121 WASHER, SPRING
    WASHER, SPRING
  • 11
    3083120 NUT
    NUT
  • 12
    3083127 O-RING
    O-RING
  • 13
    3083671 SPACER #1 (.15MM) (OPT)
    SPACER #1 (.15MM) (OPT)
  • 13
    3083672 SPACER #2 (.3MM) (OPT)
    SPACER #2 (.3MM) (OPT)
  • 13
    3083673 SPACER #3 (.6MM) (OPT)
    SPACER #3 (.6MM) (OPT)
  • 14
    3083353 BUSHING, OIL PUMP
    BUSHING, OIL PUMP
  • 15
    3083129 O-RING
    O-RING
  • 16
    3083429 GEAR, SMALL
    GEAR, SMALL
  • 17
    3083428 SPACER
    SPACER
