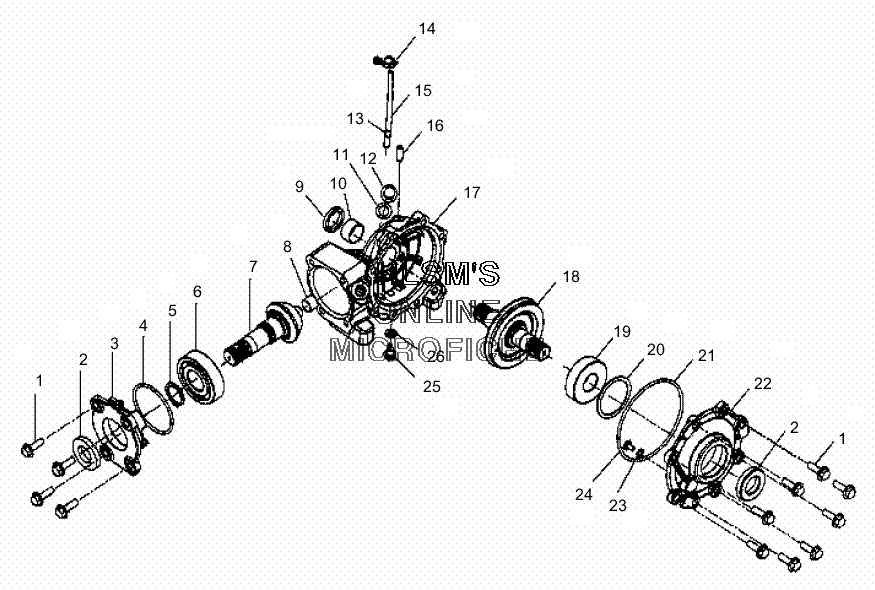

DIFFERENTIAL - FRONT (BUILT BEFORE 8/16/99) для Polaris SPORTSMAN 500 (A00CH50EB) (PORCHE RED) - 2000 года выпуска`
-
№АртикулНазвание
-
13233252 SCREWSCREW
-
23233248 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
33233701 INPUT COVER, HOUSING (FRONT)INPUT COVER, HOUSING (FRONT)
-
43233700 O-RINGO-RING
-
53233699 RING, RETAININGRING, RETAINING
-
63233589 BEARING, BALLBEARING, BALL
-
73233698 PINION, INPUTPINION, INPUT
-
83233541 BUSHING, GARLOCKBUSHING, GARLOCK
-
93233319 SEALSEAL
-
103233697 BUSHINHG, GARLOCKBUSHINHG, GARLOCK
-
113233324 WASHERWASHER
-
123233711 PLUG, OIL FILLPLUG, OIL FILL
-
137080307 CLAMPCLAMP
-
147080756 CLIP, SNAP-INCLIP, SNAP-IN
-
158450003-1525 FUEL LINE (1/4 ID, 1525 CM) (OPT)FUEL LINE (1/4 ID, 1525 CM) (OPT)
-
163233524 TUBE, VENTTUBE, VENT
-
173233696 GEARCASEGEARCASE
-
183233694 OUTPUT SHAFT, HOUSING (FRONT)OUTPUT SHAFT, HOUSING (FRONT)
-
183233695 GEAR, HOUSING (29 TEETH/FRONT)GEAR, HOUSING (29 TEETH/FRONT)
-
183233710 SUBASSY, OUTPUT SHAFT HOUSING (FRONT)SUBASSY, OUTPUT SHAFT HOUSING (FRONT)
-
193233020 BEARINGBEARING
-
203233554 SHIM (OPT)SHIM (OPT)
-
213233693 O-RINGO-RING
-
223233692 OUTPUT COVER, HOUSING (FRONT)OUTPUT COVER, HOUSING (FRONT)
-
233233583 SHIM (OPT)SHIM (OPT)
-
243233702 BUTTON, THRUSTBUTTON, THRUST
-
253233253 PLUG, HEXAGON FLANGEPLUG, HEXAGON FLANGE
-
263233254 PLUG, WASHERPLUG, WASHER
-
1341276 GEARCASE, ASSY. (FRONT) (INCL. 1-12,16-26) (BUILT BEFORE 8/16/99)GEARCASE, ASSY. (FRONT) (INCL. 1-12,16-26) (BUILT BEFORE 8/16/99)
