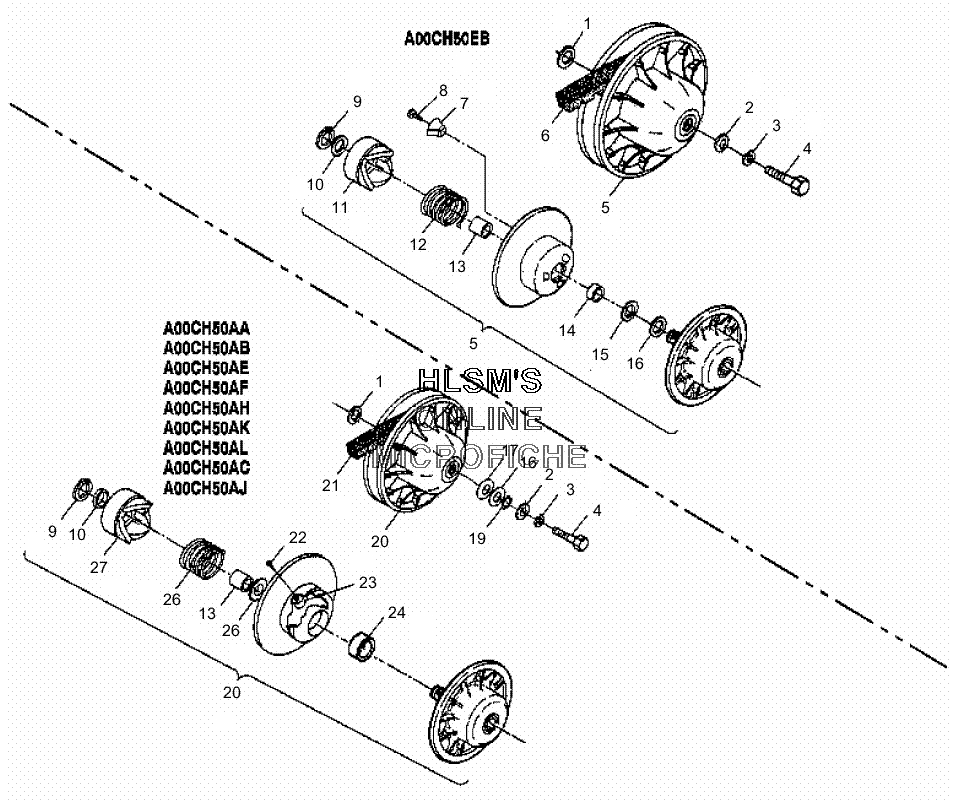

CLUTCH - DRIVEN для Polaris SPORTSMAN 500 (A00CH50EB) (PORCHE RED) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    7556120 BUSHING, GA-Y (OPT)
    BUSHING, GA-Y (OPT)
  • 2
    5220646 WASHER, DOMED
    WASHER, DOMED
  • 3
    7552901 LOCK WASHER
    LOCK WASHER
  • 4
    7515382 BOLT
    BOLT
  • 5
    1322182 CLUTCH, DRIVEN, 3-ANGLE, HVY RET (INCL. 7-16)
    CLUTCH, DRIVEN, 3-ANGLE, HVY RET (INCL. 7-16)
  • 6
    3211077 BELT, DRIVE, CLOSE TOL
    BELT, DRIVE, CLOSE TOL
  • 7
    5430766 BUTTON, RAMP
    BUTTON, RAMP
  • 8
    7511854 BOLT
    BOLT
  • 9
    7710448 RING, RETAINER
    RING, RETAINER
  • 10
    5210752 SPACER
    SPACER
  • 11
    5132344 RAMP, STA COMP
    RAMP, STA COMP
  • 12
    7041198 SPRING, CLUTCH (RED)
    SPRING, CLUTCH (RED)
  • 13
    3576511 BUSHING (1'')
    BUSHING (1'')
  • 14
    3576504 BUSHING, DRIVEN (1/2'')
    BUSHING, DRIVEN (1/2'')
  • 15
    7556804 WASHER (.030'') (OPT)
    WASHER (.030'') (OPT)
  • 16
    7555898 WASHER (.020'') (OPT)
    WASHER (.020'') (OPT)
  • 16
    7556076 WASHER (.025'') (OPT)
    WASHER (.025'') (OPT)
