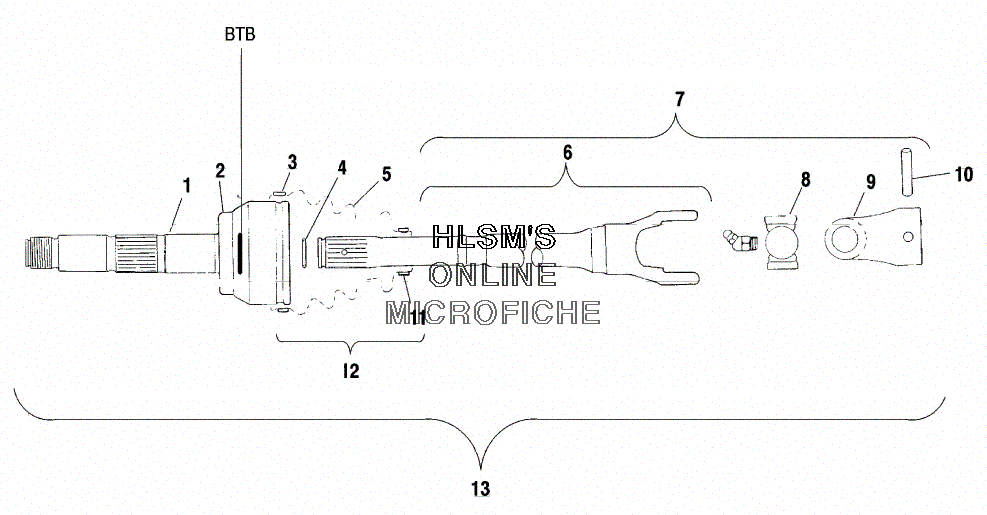

CV JOINT - BTB для Polaris SPORTSMAN 335 (A00CH33AA) (OLIVE GREEN) - 2000 года выпуска`
-
№АртикулНазвание
-
11380119 HOUSING ASSY., CV BTB W/SLEEVEHOUSING ASSY., CV BTB W/SLEEVE
-
25222299 SLEEVE, SEALSLEEVE, SEAL
-
33260115 CLAMP, LARGECLAMP, LARGE
-
47670091 CIRCLIP, DRIVESHAFT BTBCIRCLIP, DRIVESHAFT BTB
-
55411106 BOOT, CV JOINTBOOT, CV JOINT
-
61380094 SHAFT, LONG (INCL. 4)SHAFT, LONG (INCL. 4)
-
71380092 CARDON WELDING, LONG (INCL. 4,6,8,9)CARDON WELDING, LONG (INCL. 4,6,8,9)
-
82200771 CROSS AND BEARING KITCROSS AND BEARING KIT
-
93260130 YOKE, SPLINEDYOKE, SPLINED
-
107661913 PIN,SPRINGPIN,SPRING
-
117080627 CLAMP, BANDCLAMP, BAND
-
122200773 BOOT KIT, CV JOINT BTB (INCL. 3,5,11)BOOT KIT, CV JOINT BTB (INCL. 3,5,11)
-
132200961 DRIVESHAFT KIT, W/SLEEVE BTBDRIVESHAFT KIT, W/SLEEVE BTB
