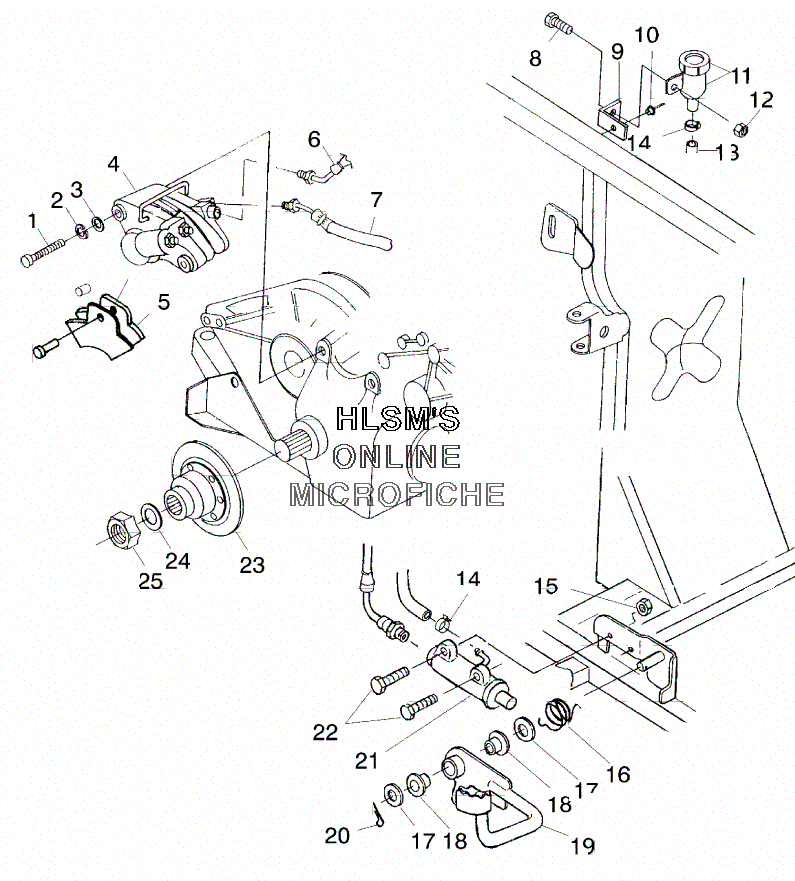

BRAKE - REAR W/ FOOT PEDAL для Polaris SPORTSMAN 335 (A00CH33AA) (OLIVE GREEN) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    7515497 BOLT
    BOLT
  • 2
    7552603 WASHER
    WASHER
  • 3
    7555806 WASHER
    WASHER
  • 4
    1910366 CALIPER ASSY. BRAKE
    CALIPER ASSY. BRAKE
  • 4
    2201180 SEAL KIT, CALIPER WW
    SEAL KIT, CALIPER WW
  • 4
    2201181 PISTON, STEPPED BORE
    PISTON, STEPPED BORE
  • 5
    1910339 BRAKE PAD
    BRAKE PAD
  • 5
    1930860 BRAKE PAD
    BRAKE PAD
  • 5
    2201093 BRAKE PAD KIT, WW REAR (INCL. PIN AND SPACER)
    BRAKE PAD KIT, WW REAR (INCL. PIN AND SPACER)
  • 6
    1930853 LINE, REAR BRAKE WWOOD
    LINE, REAR BRAKE WWOOD
  • 7
    1910305 LINE, BRAKE CALIPER W/FTNGS.
    LINE, BRAKE CALIPER W/FTNGS.
  • 8
    7512111 BOLT
    BOLT
  • 9
    5242677 BRACKET
    BRACKET
  • 10
    7621429 RIVET
    RIVET
  • 11
    1930854 RESERVOIR ASSY., REAR BRAKE
    RESERVOIR ASSY., REAR BRAKE
  • 12
    7542153 NUT
    NUT
  • 13
    1910315 HOSE, RESERVOIR (1/4ID/22IN)
    HOSE, RESERVOIR (1/4ID/22IN)
  • 14
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 15
    7542122 NUT, LOCK
    NUT, LOCK
  • 16
    7041750 SPRING, TORSION BRAKE
    SPRING, TORSION BRAKE
  • 17
    7555919 WASHER
    WASHER
  • 18
    5431107 BUSHING, PEDAL PIVOT
    BUSHING, PEDAL PIVOT
  • 19
    1910280-067 ROD, BRAKE (BLACK)
    ROD, BRAKE (BLACK)
  • 20
    7661401 COTTER PIN
    COTTER PIN
  • 21
    1910301 CYLINDER, MASTER BRAKE REAR
    CYLINDER, MASTER BRAKE REAR
  • 22
    7515155 BOLT, SS
    BOLT, SS
  • 23
    1910188 DISC ASSY., BRAKE (AA) (AB)
    DISC ASSY., BRAKE (AA) (AB)
  • 24
    7571620 WASHER, SLOTTED
    WASHER, SLOTTED
  • 25
    7547046 NUT, NYLOC
    NUT, NYLOC
