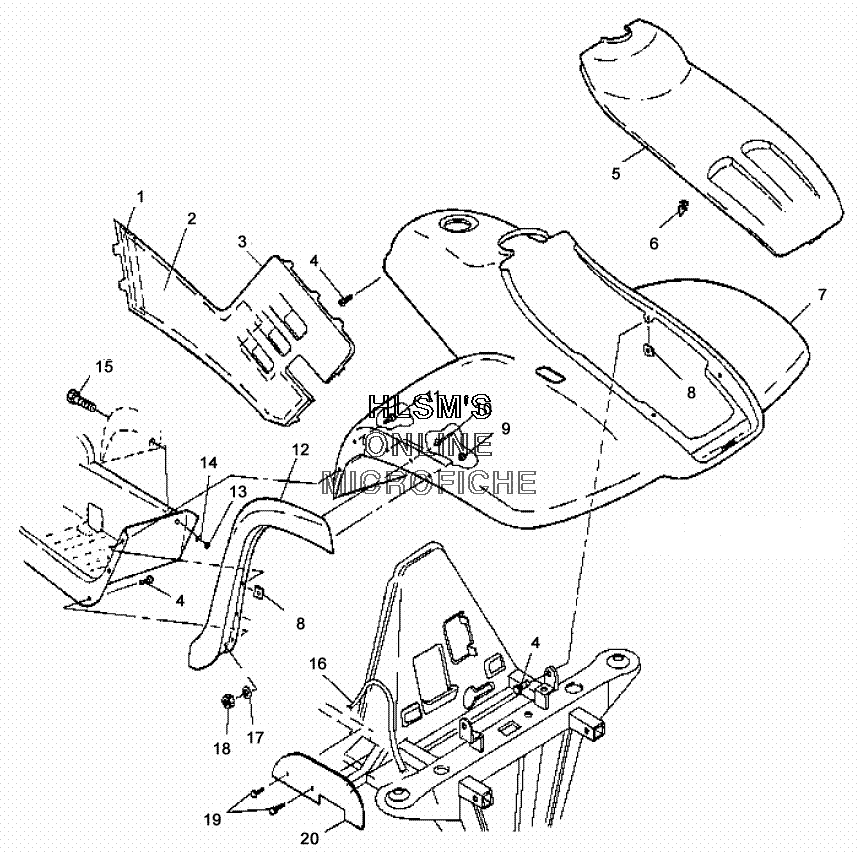

FENDER - FRONT W/ SIDE PANELS для Polaris MAGNUM 500 4X4, HDS (A00CD50FB) - 2000 года выпуска`
-
№АртикулНазвание
-
15811491 FOIL, SIDEPANEL GEN IV (RIGHT)FOIL, SIDEPANEL GEN IV (RIGHT)
-
25811210 FOIL, FOAM SIDEPANELFOIL, FOAM SIDEPANEL
-
35433263-195 PANEL, SIDE MODIFIED (LEFT) (EBANY GREEN) (BUILT BEFORE 3/13/00)PANEL, SIDE MODIFIED (LEFT) (EBANY GREEN) (BUILT BEFORE 3/13/00)
-
32632285-195 PANEL ASM/FOAM, (LEFT) (EBANY GREEN) (BUILT AFTER 3/13/00)PANEL ASM/FOAM, (LEFT) (EBANY GREEN) (BUILT AFTER 3/13/00)
-
32631977-195 PANEL/FOIL (RIGHT) (EBANY GREEN)PANEL/FOIL (RIGHT) (EBANY GREEN)
-
47512232 BOLTBOLT
-
55432088-195 COVER (FRONT) (EBANY GREEN).COVER (FRONT) (EBANY GREEN).
-
67670085 CLIP, SPRINGCLIP, SPRING
-
72632031-195 FENDER, SERVICE (FRONT/EBANY GREEN)FENDER, SERVICE (FRONT/EBANY GREEN)
-
87670057 NUT, SPEEDNUT, SPEED
-
97670068 NUT, PUSH-ONNUT, PUSH-ON
-
107661645 RIVETRIVET
-
117517312 SCREWSCREW
-
125431798 GUARD, MUD (FRONT/LEFT/BLACK)GUARD, MUD (FRONT/LEFT/BLACK)
-
125431799 GUARD, MUD (FRONT/RIGHT/BLACK)GUARD, MUD (FRONT/RIGHT/BLACK)
-
137541925 NUTNUT
-
147555792 WASHERWASHER
-
157512085 SCREWSCREW
-
168450073-600 LINE, BREATHER (3/8 ID.) (OPT)LINE, BREATHER (3/8 ID.) (OPT)
-
177555931 WASHERWASHER
-
187542122 NUT-LOCKNUT-LOCK
-
197621509 RIVET, PLASTI-LOC.RIVET, PLASTI-LOC.
-
205811917 SHIELD, DEFLECTORSHIELD, DEFLECTOR
