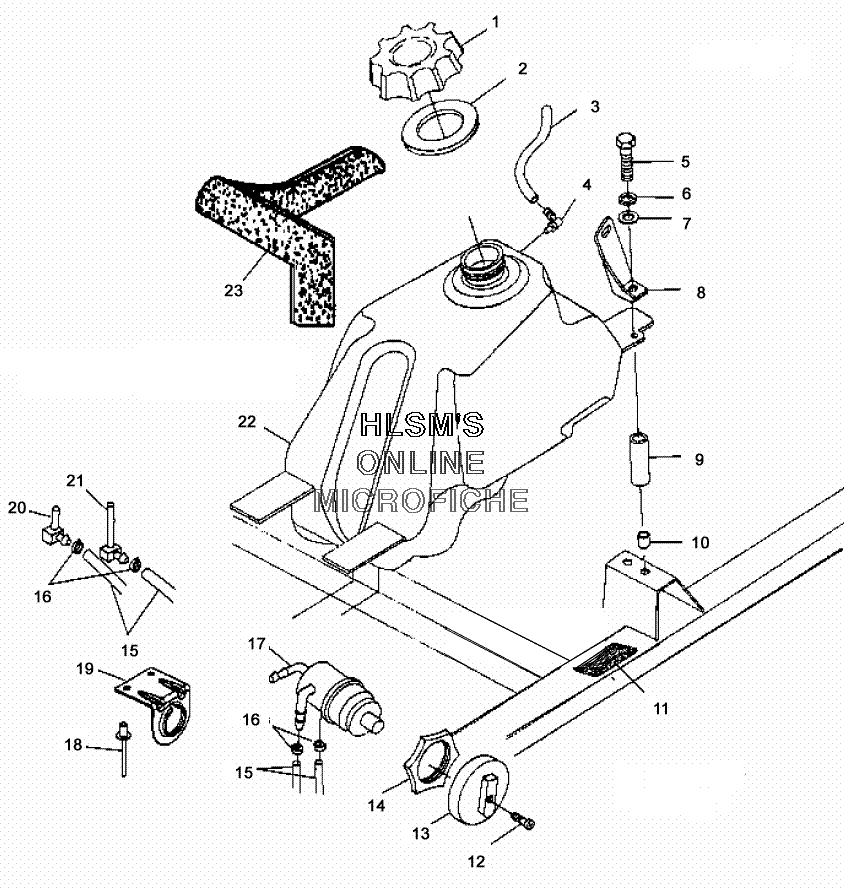

FUEL TANK для Polaris MAGNUM 500 4X4, HDS (A00CD50FB) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    5430725 CAP, GAS (BLACK)
    CAP, GAS (BLACK)
  • 2
    5810144 GASKET, GAS CAP
    GASKET, GAS CAP
  • 3
    8360009-600 FUEL LINE (1/8 ID 600 CM.) (OPT)
    FUEL LINE (1/8 ID 600 CM.) (OPT)
  • 4
    5431053 VENT, TANK
    VENT, TANK
  • 5
    7517451 BOLT
    BOLT
  • 6
    7552801 LOCK WASHER
    LOCK WASHER
  • 7
    7558301 WASHER
    WASHER
  • 8
    5222154-067 BRACKET, FUEL COVER (REAR/LEFT/BLACK)
    BRACKET, FUEL COVER (REAR/LEFT/BLACK)
  • 8
    5222155-067 BRACKET, FUEL COVER (REAR/RIGHT/BLACK)
    BRACKET, FUEL COVER (REAR/RIGHT/BLACK)
  • 9
    5332457 SPACER
    SPACER
  • 10
    7547069 NUTSERT, HEXAGON
    NUTSERT, HEXAGON
  • 11
    5810317 PAD, FUEL TANK BRACKET
    PAD, FUEL TANK BRACKET
  • 12
    7517505 SCREW
    SCREW
  • 13
    5432559 KNOB, FUEL VALVE
    KNOB, FUEL VALVE
  • 14
    5432733 NUT, FUEL VALVE
    NUT, FUEL VALVE
  • 15
    8450040-600 FUEL LINE (1/4 ID 600 CM.) (OPT)
    FUEL LINE (1/4 ID 600 CM.) (OPT)
  • 16
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 17
    7052161 VALVE, 3-WAY
    VALVE, 3-WAY
  • 18
    7661637 RIVET, INTERLOCK
    RIVET, INTERLOCK
  • 19
    5240577-067 BRACKET, FUEL VALVE (BLACK)
    BRACKET, FUEL VALVE (BLACK)
  • 20
    7052150 FITTING, FUEL OUT MAIN (4")
    FITTING, FUEL OUT MAIN (4")
  • 21
    7052149 FITTING, FUEL OUT RES
    FITTING, FUEL OUT RES
  • 22
    2520143 TANK FUEL ASSY. (INCL. 4,20,21)
    TANK FUEL ASSY. (INCL. 4,20,21)
  • 23
    5811942 FOAM, SEAL (25")
    FOAM, SEAL (25")
