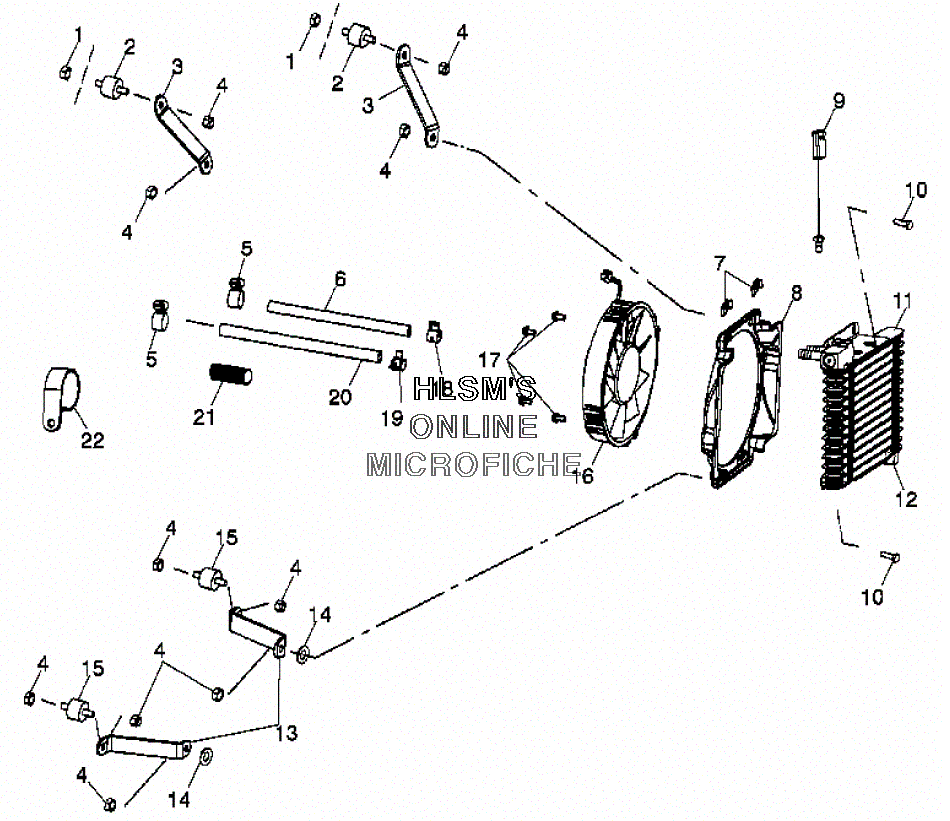

OIL COOLING (IF BUILT BEFORE 1/1/00) для Polaris MAGNUM 325 2X4 (A00CB32AA) - 2000 года выпуска`
-
№АртикулНазвание
-
17547069 NUTSERT, HEXNUTSERT, HEX
-
23110032 MOUNT, RUBBERMOUNT, RUBBER
-
35242924-067 BRACKET, COOLING FAN (BLACK)BRACKET, COOLING FAN (BLACK)
-
47542122 NUT, LOCKNUT, LOCK
-
57080474 CLAMP, HOSECLAMP, HOSE
-
65411813 OIL HOSE, INTEGRATED VALVE KITOIL HOSE, INTEGRATED VALVE KIT
-
77670111 CLIP, U ZYCLIP, U ZY
-
85433353 SHROUD, FANSHROUD, FAN
-
94010274 THERMISTERTHERMISTER
-
107515158 SCREWSCREW
-
111240064 COOLER, OIL TO AIRCOOLER, OIL TO AIR
-
127052244 VALVE, PLASTIC DRAINVALVE, PLASTIC DRAIN
-
135242983-067 MOUNT, OIL COOLER (LOWER) (BLACK)MOUNT, OIL COOLER (LOWER) (BLACK)
-
147558301 WASHERWASHER
-
153110050 MOUNT, CARBMOUNT, CARB
-
162410157 FAN, MOTORFAN, MOTOR
-
177517659 SCREWSCREW
-
187080862 CLAMP, HOSE MUBEACLAMP, HOSE MUBEA
-
197080866 CLAMP, HOSE MUBEA 1/2''CLAMP, HOSE MUBEA 1/2''
-
205411768 OIL HOSE, INTEGRATED VALVE KITOIL HOSE, INTEGRATED VALVE KIT
-
218450086-07 TUBING-CONVOLUTED, (5/8 ID) (7CM)TUBING-CONVOLUTED, (5/8 ID) (7CM)
-
227080869 CLAMP-P, CUSHIONED (1.25'' I.D.)CLAMP-P, CUSHIONED (1.25'' I.D.)
