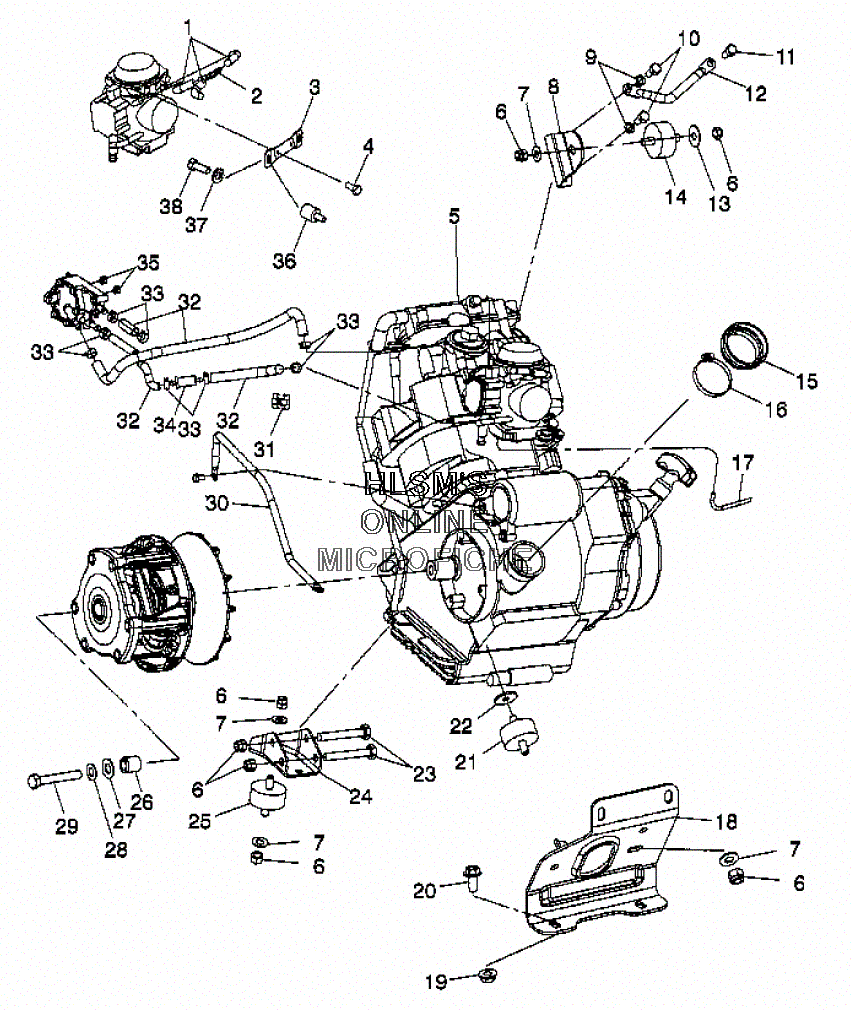

MOUNTING - ENGINE для Polaris MAGNUM 325 2X4 (A00CB32AA) - 2000 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    8450003-1525 FUEL LINE, 1/4 ID (1525 CM.) (OPT)
    FUEL LINE, 1/4 ID (1525 CM.) (OPT)
  • 2
    7052075 FITTING, TEE
    FITTING, TEE
  • 3
    5243720-067 BRACKET, CARBURETOR (BLACK)
    BRACKET, CARBURETOR (BLACK)
  • 4
    3084205 SCREW AND WASHER
    SCREW AND WASHER
  • 5
    3085823 ES32PFR09, SHORT BLOCK
    ES32PFR09, SHORT BLOCK
  • 6
    7542403 NUT LOCK
    NUT LOCK
  • 7
    7555806 WASHER
    WASHER
  • 8
    5243641-067 BRACKET, MOTOR MOUNT (BLACK)
    BRACKET, MOTOR MOUNT (BLACK)
  • 9
    7552901 LOCK WASHER
    LOCK WASHER
  • 10
    7512315 BOLT
    BOLT
  • 11
    7512232 BOLT
    BOLT
  • 12
    4010132 CABLE, GROUND ENGINE
    CABLE, GROUND ENGINE
  • 13
    7555823 WASHER
    WASHER
  • 14
    3110068 MOUNT, RUBBER (REAR)
    MOUNT, RUBBER (REAR)
  • 15
    5411721 BOOT, CLUTCH INTAKE
    BOOT, CLUTCH INTAKE
  • 16
    7080511 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 17
    8360009-100 HOSE (OPT)
    HOSE (OPT)
  • 18
    1012960-067 MOUNT, ENGINE 325 (BUILT BEFORE 12/01/99) (REAR) (BLACK)
    MOUNT, ENGINE 325 (BUILT BEFORE 12/01/99) (REAR) (BLACK)
  • 18
    1013133-067 MOUNT, ENGINE 325 (BUILT AFTER 12/01/99) (REAR) (BLACK)
    MOUNT, ENGINE 325 (BUILT AFTER 12/01/99) (REAR) (BLACK)
  • 19
    7542459 NUT, FLANGED
    NUT, FLANGED
  • 20
    7517289 SCREW
    SCREW
  • 21
    3021119 MOUNT, RUBBER (REAR)
    MOUNT, RUBBER (REAR)
  • 22
    7555815 WASHER, FLAT
    WASHER, FLAT
  • 23
    7515417 BOLT
    BOLT
  • 24
    5243288-067 MOUNT, (LOWER/FRONT) (BLACK)
    MOUNT, (LOWER/FRONT) (BLACK)
  • 25
    3021181 MOUNT, RUBBER ENGINE
    MOUNT, RUBBER ENGINE
  • 26
    5430261 BUSHING, RETAINING BOLT
    BUSHING, RETAINING BOLT
  • 27
    5210748 WASHER
    WASHER
  • 28
    7575202 WASHER, LOCK
    WASHER, LOCK
  • 29
    7512566 BOLT
    BOLT
  • 30
    4010095 CABLE, BATTERY/ENGINE (BLACK)
    CABLE, BATTERY/ENGINE (BLACK)
  • 31
    7080482 T-CLIP
    T-CLIP
  • 32
    8450040-600 FUEL LINE, 1/4 ID (600 CM.) (OPT)
    FUEL LINE, 1/4 ID (600 CM.) (OPT)
  • 33
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 34
    2530009 FILTER, IN-LINE
    FILTER, IN-LINE
  • 35
    7546601 NUT, NYLOK
    NUT, NYLOK
  • 36
    3110079 MOUNT, RUBBER CARB
    MOUNT, RUBBER CARB
  • 37
    7552604 WASHER
    WASHER
  • 38
    7517615 SCREW
    SCREW
