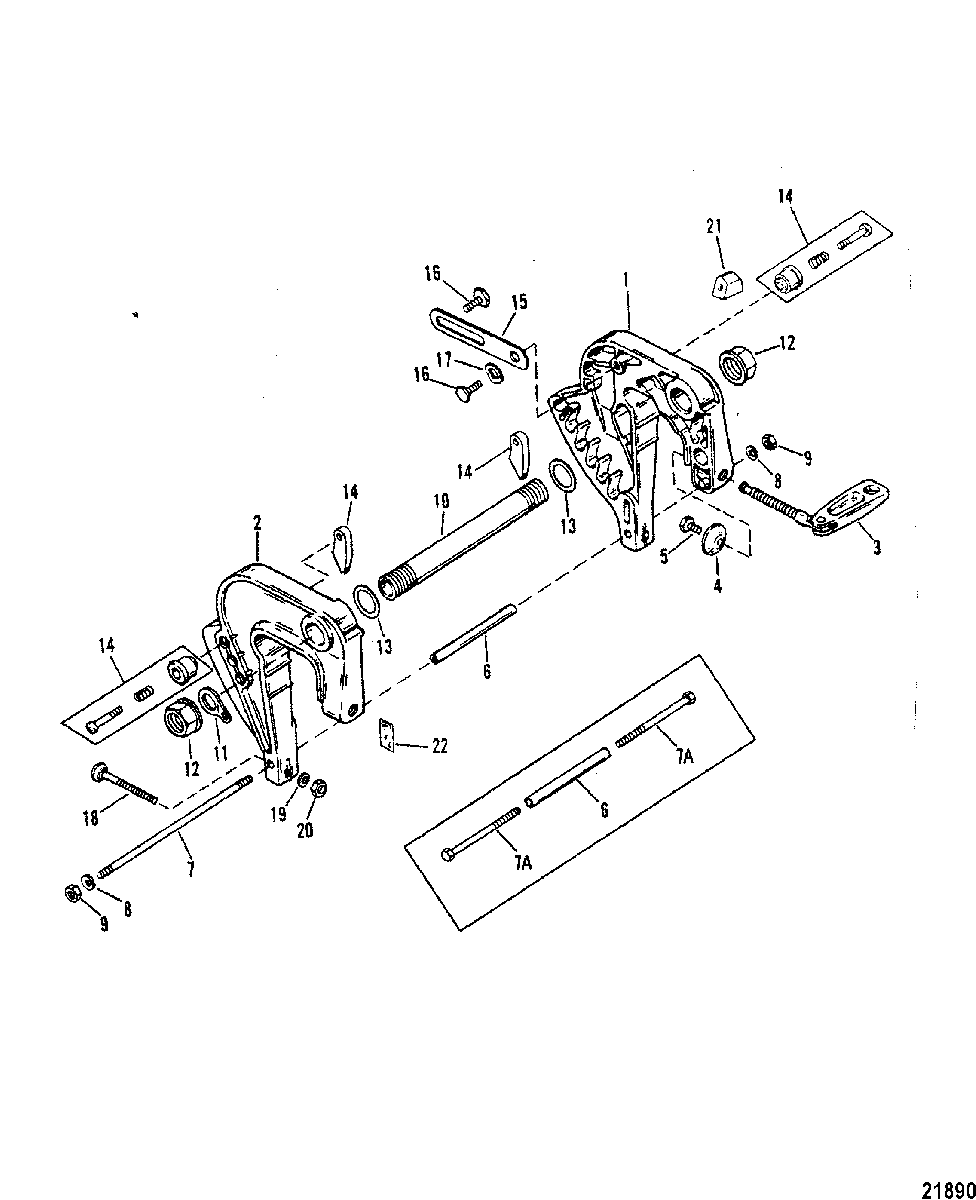

Clamp Bracket для Mercury - XR10 0D038000 THRU 0D279998

  • №
    Артикул
    Название
  • 1
    3404-8894A11 CLAMP BRACKET ASSEMBLY (PORT) BLACK
    CLAMP BRACKET ASSEMBLY (PORT) BLACK
  • 1
    3404-8894A11 CLAMP BRACKET ASSEMBLY (PORT) GRAY
    CLAMP BRACKET ASSEMBLY (PORT) GRAY
  • 2
    3404-8894A11 CLAMP BRACKET ASSEMBLY (STARBOARD) BLACK
    CLAMP BRACKET ASSEMBLY (STARBOARD) BLACK
  • 2
    3404-8894A11 CLAMP BRACKET ASSEMBLY (STARBOARD) GRAY
    CLAMP BRACKET ASSEMBLY (STARBOARD) GRAY
  • 3
    10-92767A1 THUMB SCREW ASSEMBLY, (14 mm)
    THUMB SCREW ASSEMBLY, (14 mm)
  • 3
    10-92767A3 THUMB SCREW ASSEMBLY, (16 mm)
    THUMB SCREW ASSEMBLY, (16 mm)
  • 4
    12-818884 WASHER
    WASHER
  • 5
    10-768042 SCREW
    SCREW
  • 6
    23-43431 SPACER
    (Stud Assembly)
    SPACER
    (Stud Assembly)
  • 6
    23-8M0084719 SPACER
    (Screw Assembly)
    SPACER
    (Screw Assembly)
  • 7
    16-42129 STUD
    (Stud Assembly)
    STUD
    (Stud Assembly)
  • 7A
    10-4000333 SCREW, (M6 x 40)
    (Screw Assembly)
    SCREW, (M6 x 40)
    (Screw Assembly)
  • 8
    13-400256 LOCKWASHER, (M6)
    (Stud Assembly)
    LOCKWASHER, (M6)
    (Stud Assembly)
  • 9
    11-400212 NUT, (M6) Stainless Steel
    (Stud Assembly)
    NUT, (M6) Stainless Steel
    (Stud Assembly)
  • 10
    42078 TILT TUBE
    TILT TUBE
  • 11
    54-8M0085928 CLIP
    CLIP
  • 12
    11-93164 NUT, (.875)
    NUT, (.875)
  • 13
    12-71421 WASHER, Nylon
    WASHER, Nylon
  • 14
    42390A1 LEVER ASSEMBLY, Tilt Return
    LEVER ASSEMBLY, Tilt Return
  • 15
    90901 STRAP, TILT STOP-PORT SIDE
    STRAP, TILT STOP-PORT SIDE
  • 16
    10-42498 SCREW, (M6 x 1.0)
    SCREW, (M6 x 1.0)
  • 17
    13-31030 WAVE WASHER
    WAVE WASHER
  • 18
    10-43216 BOLT, (.250-20 x 3.50)
    BOLT, (.250-20 x 3.50)
  • 19
    12-67983 WASHER
    WASHER
  • 20
    11-8267118 NUT, (.250-20)
    NUT, (.250-20)
  • 21
    814427 SHUTTLE
    SHUTTLE
  • 22
    37-12869 DECAL, Tilt Position
    DECAL, Tilt Position
