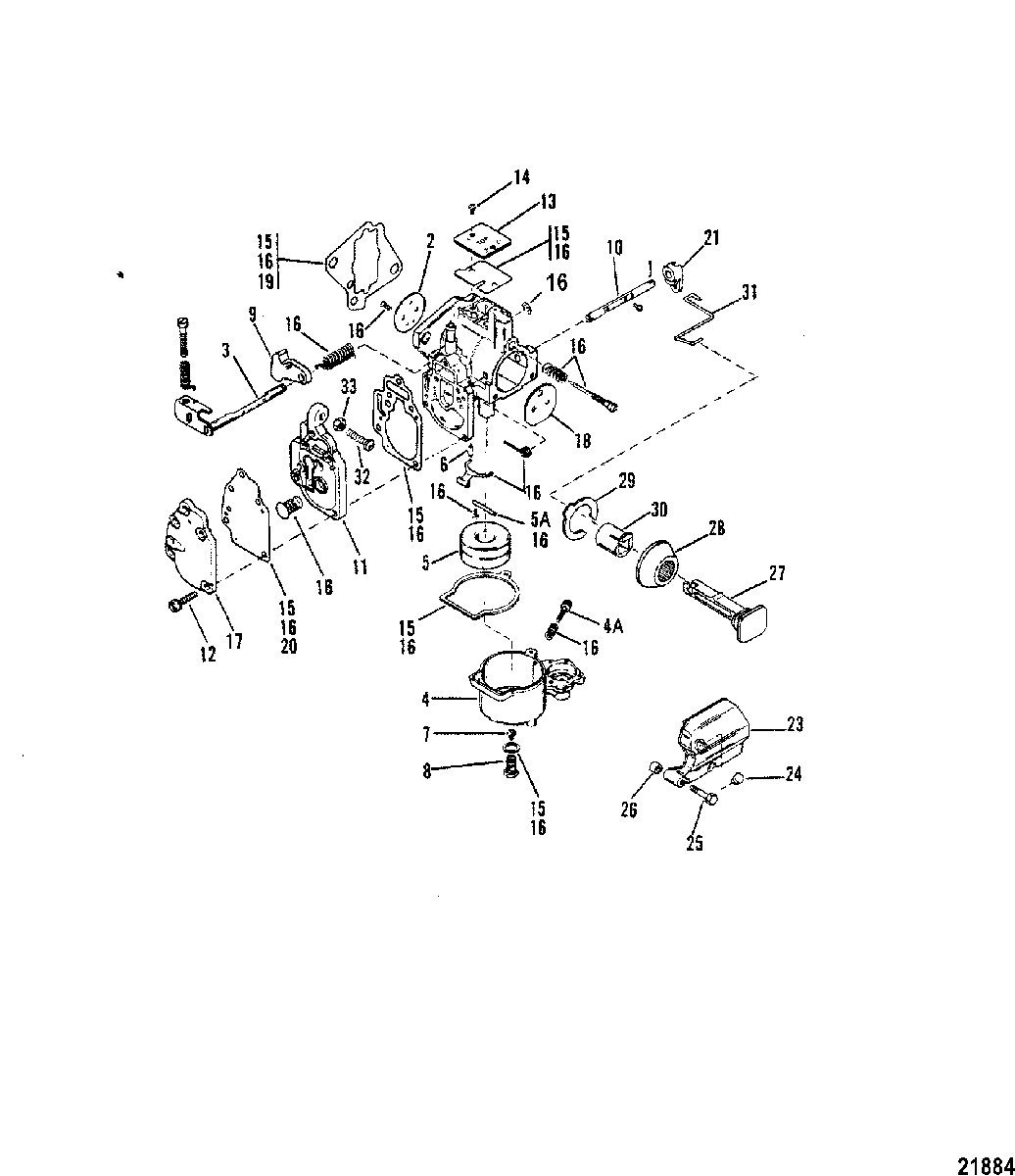

Carburetor Assembly(SeaPro/Marathon 10) для Mercury - XR10 0D038000 THRU 0D279998
-
№АртикулНазвание
-
11392-817404T4 CARBURETOR (WMC-40)CARBURETOR (WMC-40)
-
219268 VALVE, Throttle (WMC-33/33A)VALVE, Throttle (WMC-33/33A)
-
21395-823716 VALVE, Throttle (WMC-40)VALVE, Throttle (WMC-40)
-
319267 SHAFT, Throttle (INCLS. SCREW & SPRING)SHAFT, Throttle (INCLS. SCREW & SPRING)
-
41395-811353 BOWL, FuelBOWL, Fuel
-
4A1395-811360 SCREW, Bowl Drain (WMC-40)SCREW, Bowl Drain (WMC-40)
-
51395-91691 FLOATFLOAT
-
5AF10064 SHAFTSHAFT
-
61395-803861 VALVEVALVE
-
71399-4215 JET, Main Fuel (.066) (WMC-33/34A)JET, Main Fuel (.066) (WMC-33/34A)
-
71399-4216 JET, (.064) (WMC-40)JET, (.064) (WMC-40)
-
81395-9171 PLUG, JET RETAINERPLUG, JET RETAINER
-
91395-811352 LEVER, ThrottleLEVER, Throttle
-
101395-8113541 SHAFT, Choke (WMC-33/33A)SHAFT, Choke (WMC-33/33A)
-
101395-8113541 SHAFT, Choke (WMC-40)SHAFT, Choke (WMC-40)
-
111395-9702 BODYBODY
-
121395-9643 SCREW, FUEL PUMP COVERSCREW, FUEL PUMP COVER
-
131395-9699 PLATE, COVERPLATE, COVER
-
141395-9696 SCREW, COVER PLATESCREW, COVER PLATE
-
151395-97611 GASKET SET, Carburetor, GASKET/DIAPHRAGM KITGASKET SET, Carburetor, GASKET/DIAPHRAGM KIT
-
161395-8237072 REPAIR KIT (WMC-33-33/A)REPAIR KIT (WMC-33-33/A)
-
161395-8237072 REPAIR KIT (WMC-40)REPAIR KIT (WMC-40)
-
171395-9637 COVER, FUEL PUMPCOVER, FUEL PUMP
-
181395-811806 VALVE, Choke (WMC-33)VALVE, Choke (WMC-33)
-
181395-811806 VALVE, Choke (WMC-33A/40)VALVE, Choke (WMC-33A/40)
-
1927-192061 GASKET, CarburetorGASKET, Carburetor
-
201395-9635 DIAPHRAGM/GASKETDIAPHRAGM/GASKET
-
211395-811805 LEVER, Choke (WMC-33)LEVER, Choke (WMC-33)
-
211395-811805 LEVER, Choke (WMC-33A/40)LEVER, Choke (WMC-33A/40)
-
2317442 COVERCOVER
-
2419-47579 PLUGPLUG
-
2510-400018 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
2510-40056110 SCREW, (M5 x 30)SCREW, (M5 x 30)
-
2641750T INSERTINSERT
-
27817424 KNOB, ChokeKNOB, Choke
-
2812804A1 BEZEL ASSEMBLY, ChokeBEZEL ASSEMBLY, Choke
-
2953-11278 CLIP, RetainingCLIP, Retaining
-
30817426 INSERT, Choke BezelINSERT, Choke Bezel
-
31817425 LINK, ChokeLINK, Choke
-
3210-40056110 SCREW, (M5 x 30)SCREW, (M5 x 30)
-
3311-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
-27-42364A92 GASKET SET, EngineGASKET SET, Engine
-
-19072T88 POWERHEAD ASSEMBLY, CompletePOWERHEAD ASSEMBLY, Complete
